Inserting the wire electrode
Item No.: 099-004934-EWM01 63
6.10.3 Inserting the wire spool
NOTE
Standard D300 pin reels can be used. Adapters (see accessories) are required when
using standardised basket coils (DIN 8559).

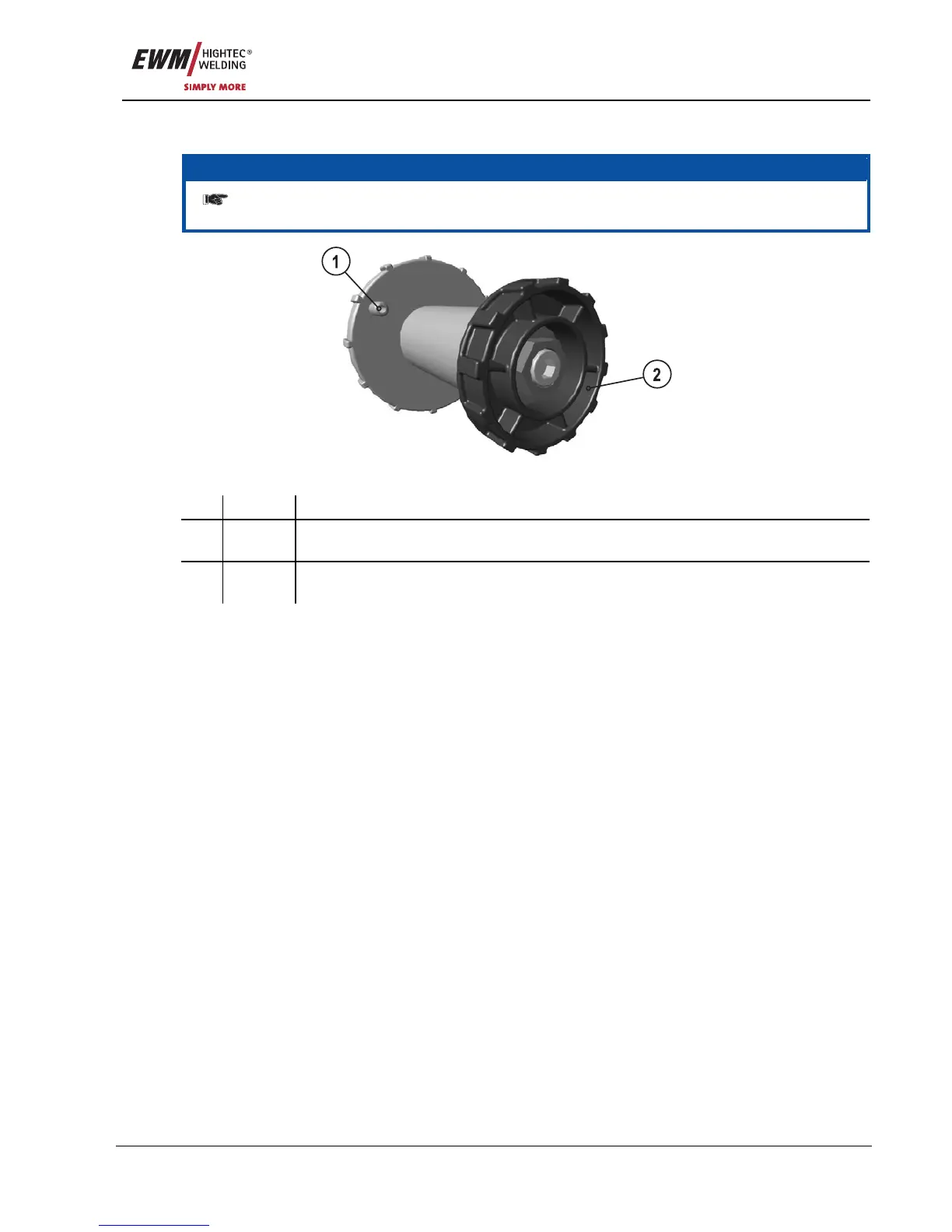

Figure 6-8
Item Symbol Description 0
1 Carrier pin
For fixing the wire spool
2 Knurled nut
For fixing the wire spool
• Loosen knurled nut from spool holder.
• Fix welding wire reel onto the spool holder so that the carrier pin locks into the spool bore.
• Fasten wire spool using knurled nut.
