Machine description
WEGA 351, 401, 451, 501, 601 D
Item No.: 099-004934-EWM01 25

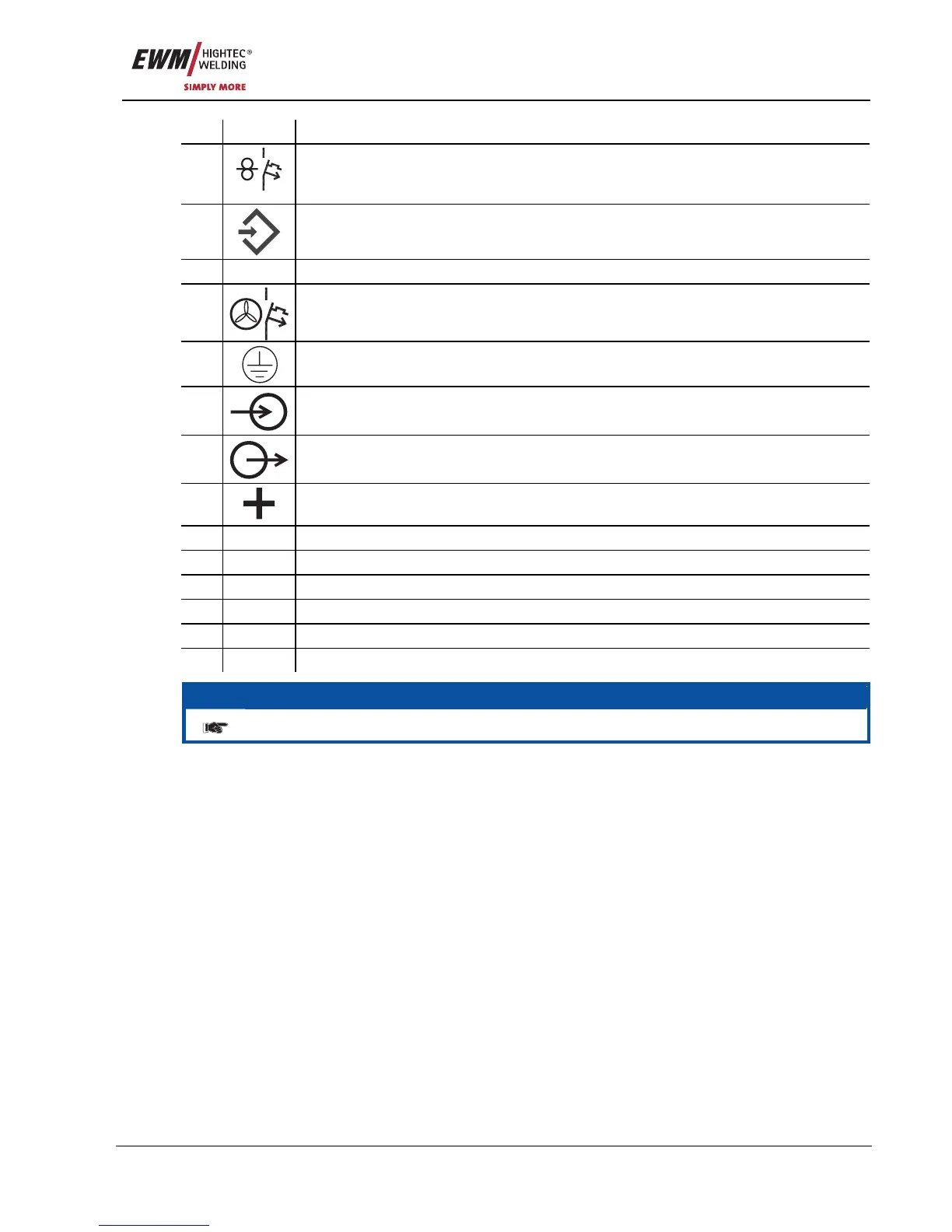

Item Symbol Description 0
1
42V/4A
Key button, automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
2
7-pole connection socket
Wire feed unit control lead
3 Mains connection cable
4
Button, Automatic cut-out of fan motor
Press to reset tripped circuit breaker
5
Earth cable connecting nipple
Connection of green-yellow earth cable from the intermediate tube package
6
Rapid-action closure coupling, red (coolant return)
7
Rapid-action closure coupling, blue (coolant supply)
8
Connector plug, welding current "+"
Welding current connection on wire feed unit
9
Intermediate tube package strain relief
10 Safety chain
11 Cooling air outlet
12 Bracket for shielding gas cylinder
13
Coolant tank cap
14 Coolant tank
NOTE
Coolant tank only for machines fitted with water cooling (DW)
