Pair Detective Result Details
Pair Detective Result Details
Summary

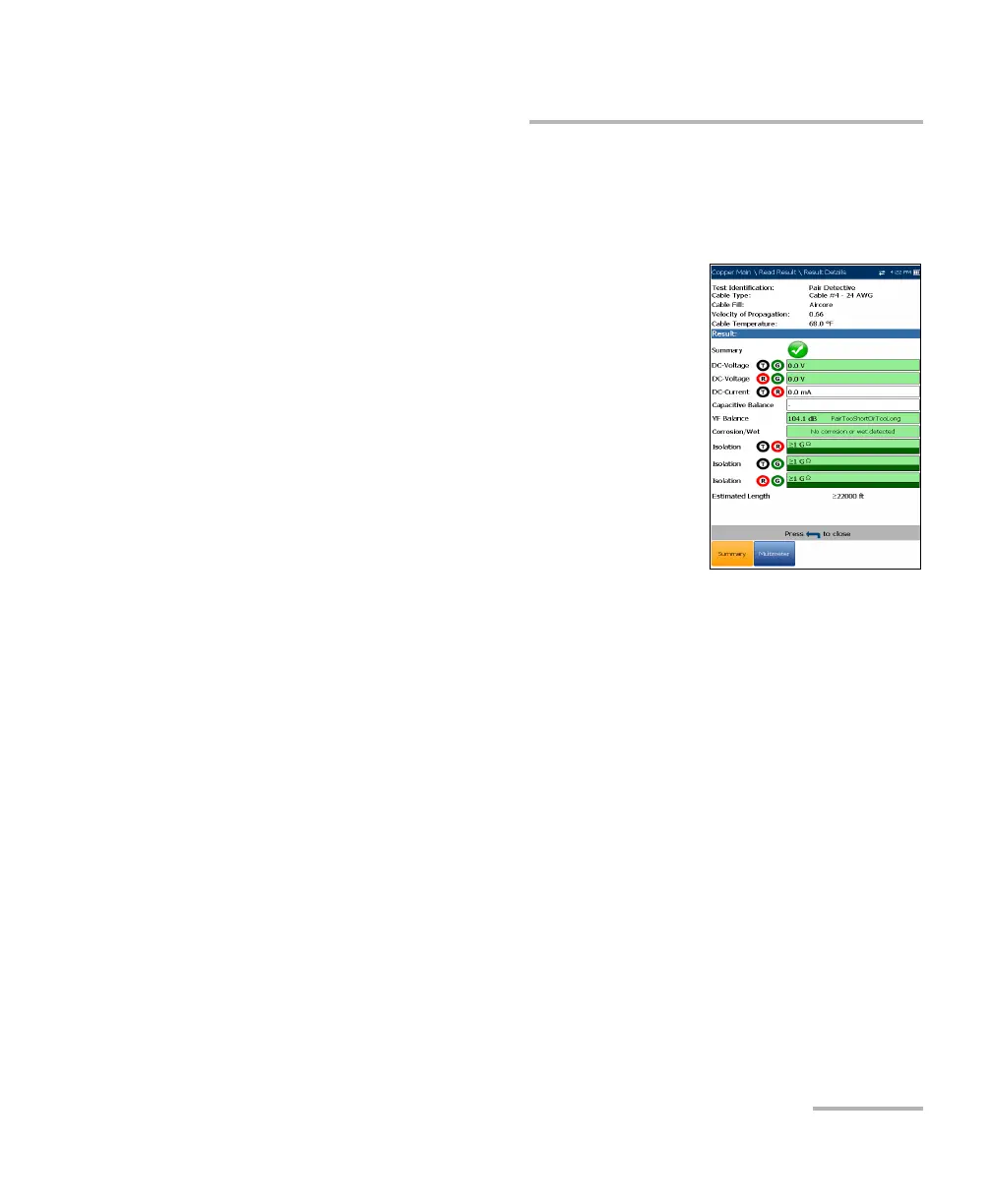

The read-only Summary page displays the cable
parameters and detailed results saved from
running the Pair Detective test.
 Test Identification is the test type of the
group, for example Pair Detective.
 Cable Type is the cable entry (with its
associated parameters) from the current
Cable Book, used for testing.
 Cable Fill is the type of material the cable is
filled with: Aircore, Jelly, Pulp, 5 PR, or 2 PR.
 Velocity of Propagation is the velocity of
propagation for the cable as a ratio of the speed of light.
 Cable Temperature is the temperature of the cable under test in either
degree C or F.
 Result displays a Summary of the overall pass/fail status,
DC-Voltage/Current and Isolation for each selected wire pair, as well
as other detailed results of the Pair Detective test.
 Isolation results also display a five-level indicator of the measured
isolation, below Hard Short.
 Estimated Length displays the length of the circuit as found from
the TDR test for the first cycle of the Pair Detective test.
