Noise Tests
166 MAX-610

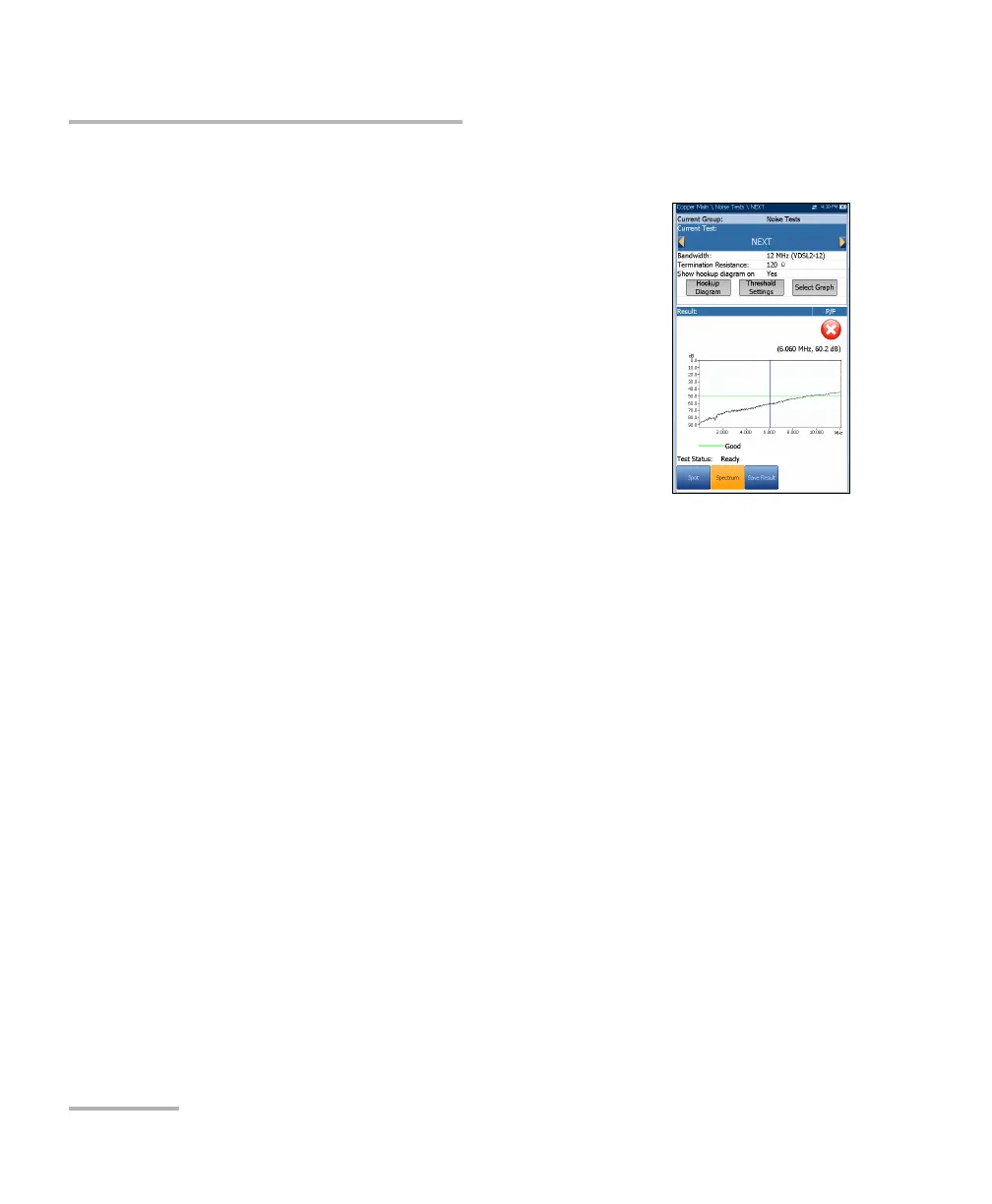

NEXT
Spectrum
Spectrum is a snapshot mode of operation similar to
WB Attenuation. The test makes one measurement of
the crosstalk for the selected bandwidth, and then
stops.
Current Group is the current test group name, for
example Noise Tests.
Current Test displays the test being measured.
Here you can switch to another Noise test from
the given list. However, this action will terminate
the ongoing measurement test.
Bandwidth allows you to select the bandwidth of
the frequency range for the test. Available frequency bandwidths are:
2.2 MHz, 8 MHz, 12 MHz, 17.6 MHz, and 30 MHz.
Termination Resistance lists a choice of resistance values for the
termination of the signal.
Show hookup diagram on test setup - If Yes, the Confirmation page is
prompted before every NEXT test is started. Select No to hide the
diagram next time you run the test.
Hookup Diagram button opens a Confirmation page displaying how
to connect your cables at the beginning of the test. When FED is
Enabled on the FED Setup page, both the T-R/A-B and T1-R1/A1-B1
pairs will be terminated at the FED. The hookup diagram uses graphic
and textual components.
