8.1 Data Recording Overview
There are two ways to record readings to the RH600 internal flash drive. One
way is using the Data Logger, where readings are automatically recorded at
a selectable sample rate over a programmable time period. The second way
is using the Data Hold function.
The internal flash drive can store up to 32 files. Each file can hold 1000 read-
ings for an overall total of 32,000 readings. Data recorded using the Data log-
ger or the Data Hold function can be viewed on the RH600 display
(graphically and as text summary) and downloaded to a PC for viewing and
saving in spreadsheet programs.
Note that even though the RH600 shows only 3 readings at one time on its
Home page, all available readings are captured when data is recorded, as
shown in Figure 8.7, below.
8.2 Programming the Data Logger
Navigate to the Recording page in the programming menu, by first pressing
F3
, and then use the arrow buttons to step to Recording. Press F3 ✔ to
open the Recording menu, and then use the arrow buttons to step through the
options. Set the Data logger options as explained below.

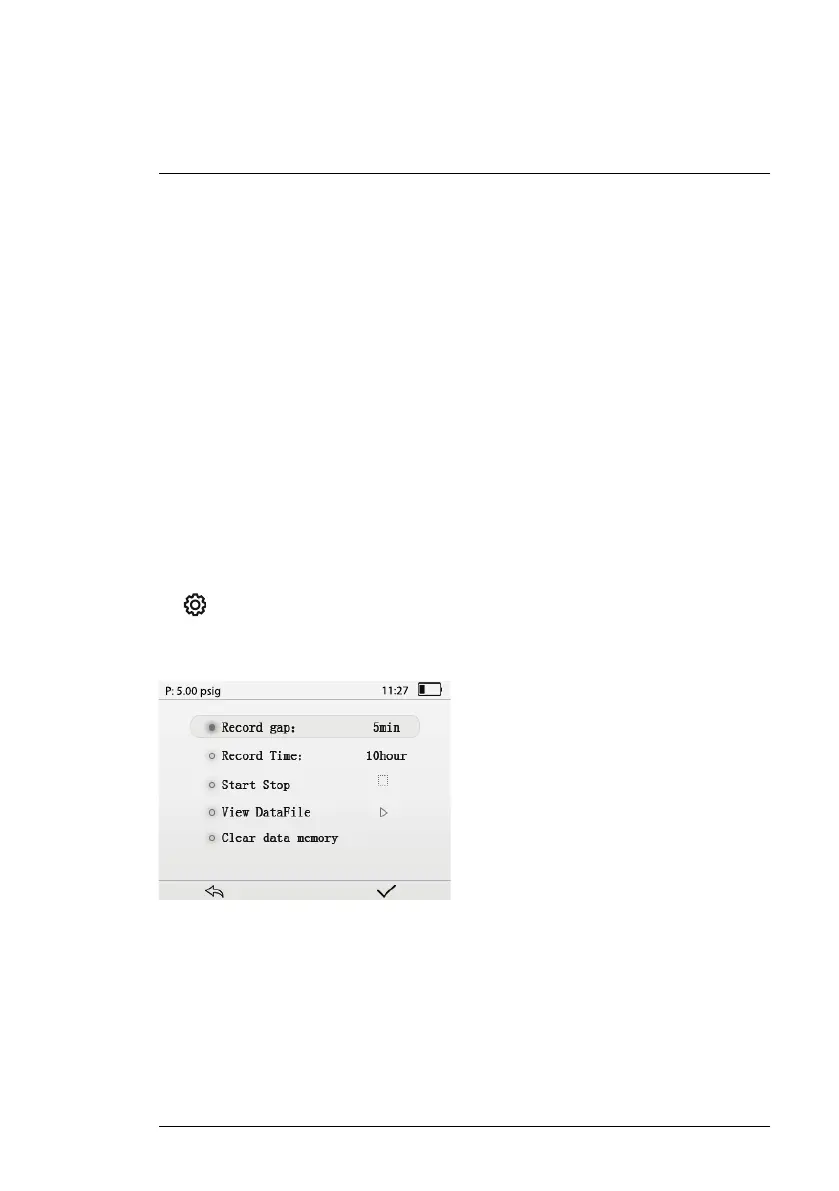

Figure 8.1 Recording menu main page.
Record Gap: Use F3 to set the sampling rate of the Data logger. Set it to re-
cord a reading every 10 seconds, 1 minute, 5 minutes, 10 minutes or 20
minutes.
