Extel WEAT V2 N - Page 147

WEAT V2 N - V1
16GB

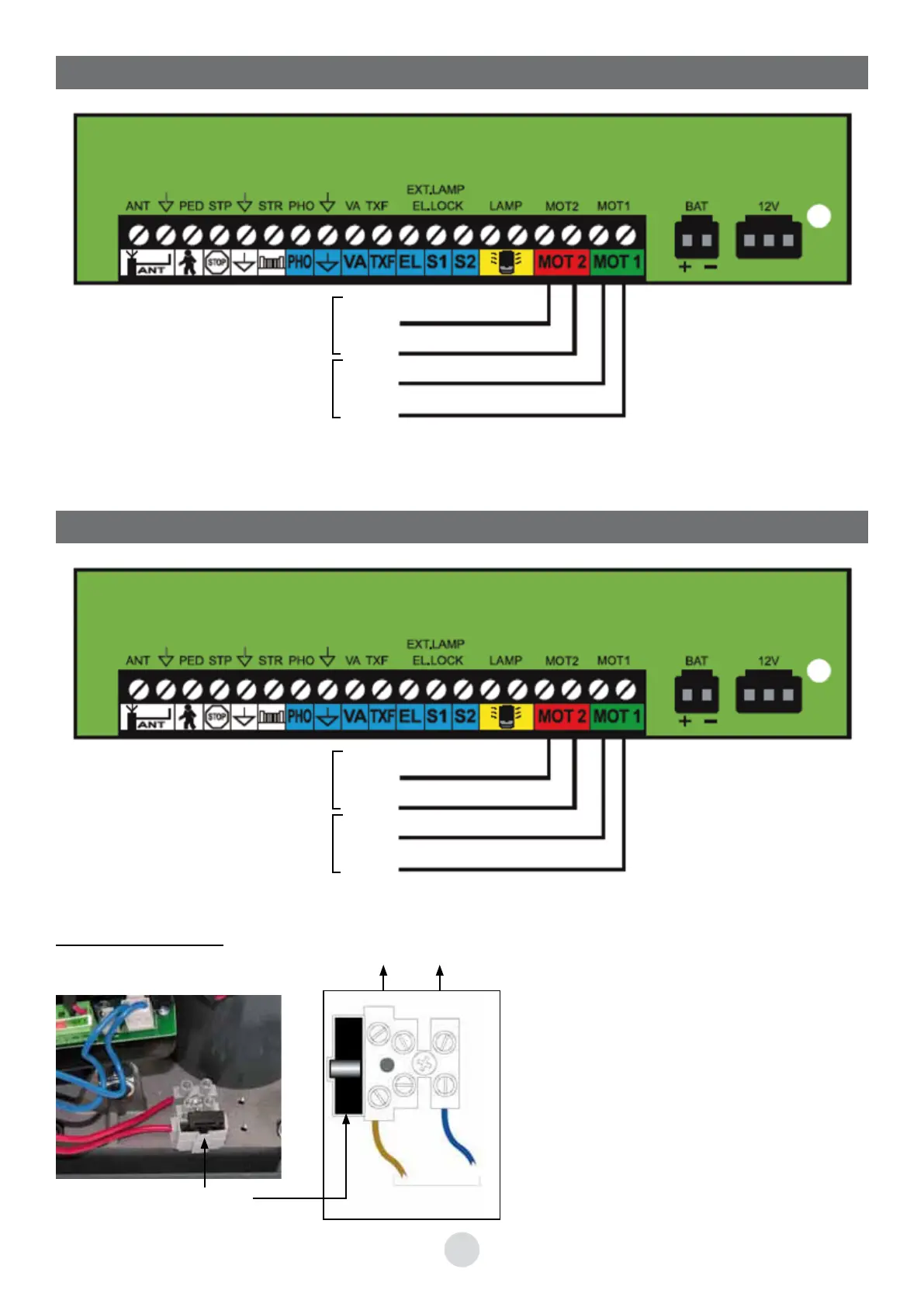

INWARD OPENING
OUTWARD OPENING
Red wire
Black wire
Red wire
Black wire
Black wire
Red wire
Black wire
Red wire
Motor of leaf opening second
(covered)
Motor of leaf opening first
(covering)
Motor of leaf opening second
(covered)
Motor of leaf opening first
(covering)
System power supply:
After protecting the power supply with a
10 A two-pole circuit breaker and a 30 mA
GFCI, connect it to the terminal block inside
the control device.
To transfo
Fuse (5x20):
250 V - 1AT
NeutralLive
230 V mains
power supply
