Exterity AvediaStream e2535 - Opening a Serial Session

AvediaStream e2535/e3635 and e2655/e3655 Encoders V1.1
56 Administrator’s Guide
Opening a Session
Open a terminal program such as Hyperterminal (this can be found on a standard Windows
PC). Set up the serial port with the following settings (see example in Figure 30):
● Baud rate: 115200
● Data bits: 8
● Parity: none
● Stop bits: one
● Flow control: none
The program should now connect and present a login prompt if the return key is pressed.

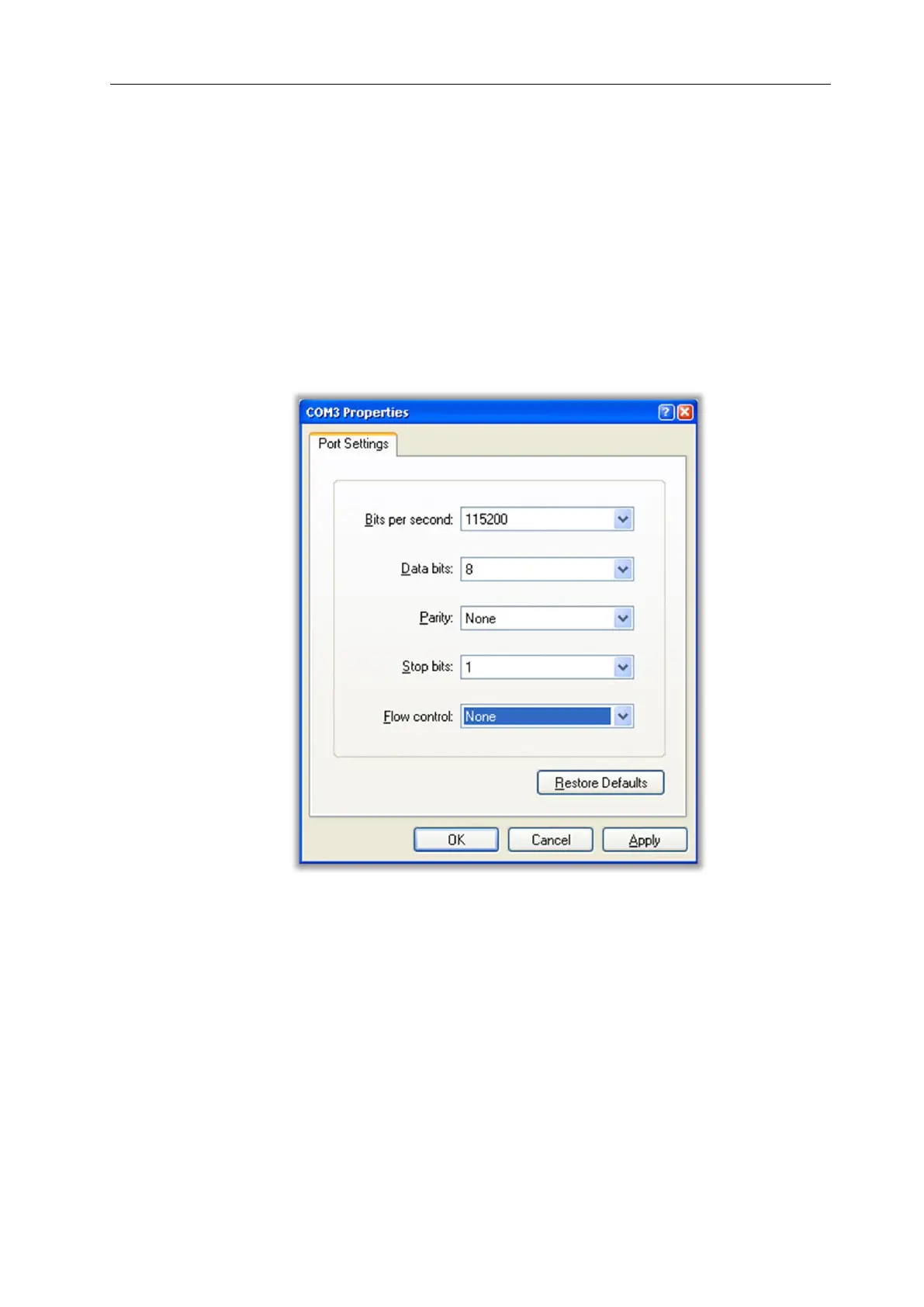

Figure 30 Serial port settings
