IN1606 and IN1608 Series Scaling Presentation Switcher • Installation 12
IN1608 amplifier models
The IN1608 amplifier models (see figure 5) feature all the connectors of the IN1608 plus an
amplified audio connector. The SA models feature a 4-pole captive screw connector while
the MA models feature a 2-pole captive screw connector for amplified audio output.
100-240V ~ 1.3 A MAX
1
2
CONFIGURABLE
HDMI
HDMI
5
6
7
8
C
RS-232 IR
RS-232 IR
Tx Rx Tx RxG
Tx Rx Tx RxG
Tx Rx Tx RxG
HDMI
A
B
3
4
INPUTS
OUTPUTS
Tx Rx
RS-232
G
LAN
2x25W(8Ω)/2x50W(4Ω)
RESET
AUDIO INPUTS
OUTPUTS
REMOTE
LL1 RR
L2
R
L
3
R
CLASS 2 WIRING
L4
R
L5R
+48V
+48V
12
LR
VARIABLE
IN1608 SA
2
MIC/LINE
L6
R
SIG LINK
DTP IN
SIG LINK
DTP IN
SIG LINK
DTP OUT
50-60 Hz
RS-232 IR
OVER DTP
OVER DTP
OVER DTP
AMPLIFIED OUTPUT
100-240V ~ 1.3 A MAX
1
2
CONFIGURABLE
HDMI
HDMI
5
6
7
8
C
RS-232 IR
RS-232 IR
Tx Rx Tx RxG
Tx Rx Tx RxG
Tx Rx Tx RxG
HDMI
A
B
3
4
INPUTS
OUTPUTS
Tx Rx
RS-232
G
LAN
70V - 100W
RESET
AUDIO INPUTS OUTPUTS
REMOTE
LL1R R
L2
R
3
CLASS 2 WIRING
L4
R
L5R
+48V
+48V
12
LR
VARIABLE
IN1608 MA
2
MIC/LINE
L6
R
SIG LINK
DTP IN
SIG LINK
DTP IN
SIG LINK
DTP OUT
50-60 Hz
RS-232 IR
OVER DTP
OVER DTP
OVER DTP
AMPLIFIED OUTPUT
IN1608 SA
IN1608 MA

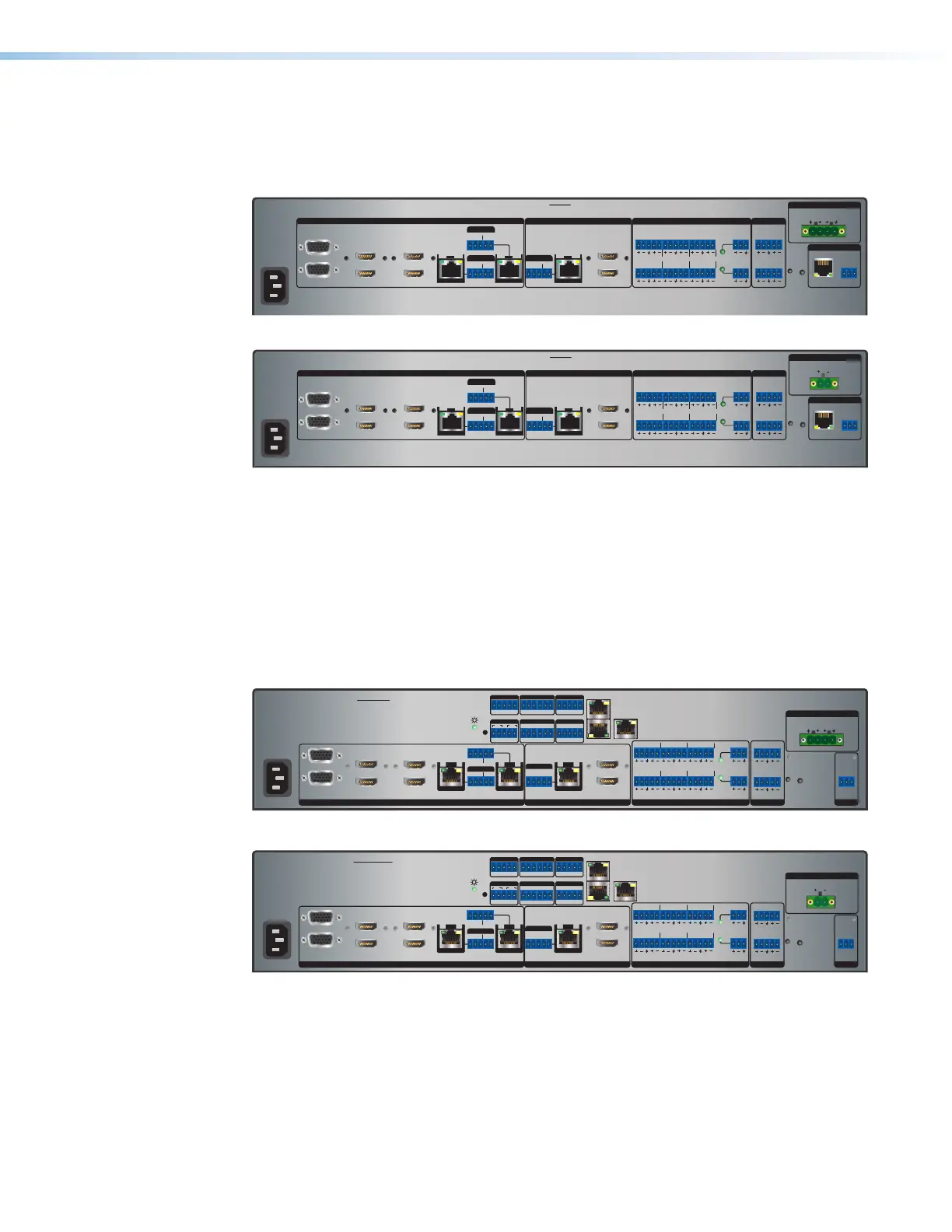

Figure 5. IN1608 SA and IN1608 MA Rear Panels
IN1608 IPCP models
The IN1608 IPCP models (see figure 6) feature the connectors of an SA model or
an MA model (depending on the model) plus an IPCP Pro 350 control processor. The LAN
connector is incorporated in the IPCP Pro 350 control processor instead of the scaler.
Otherwise, the IN1608 IPCP SA and IN1608 IPCP SA HDBT include all of the connectors of
the SA models and the IN1608 IPCP MA 70 and IN1608 IPCP MA 70 HDBT include all of
the connectors of the MA models.
100-240V ~ -- A MAX
1
CONFIGURABLE
HDMI HDMI
5
8
C
RS-232 IR
RS-232 IR
Tx Rx Tx RxG
Tx Rx Tx RxG
Tx Rx Tx RxG
HDMI
A
B
3
INPUTS OUTPUTS AUDIO INPUTSOUTPUTS REMOTE
2
6
7
4
Tx Rx
RS-232
G
LAN 1
LAN 2LAN 3
2x25W(8Ω) / 2x50W(4Ω)
RESET
L1R
L
R
L2
R
L
3
R
CLASS 2 WIRING
L4
R
L5R
+48V
+48V
12
LR
VARIABLE
1
2
MIC/LINE
L6
R
50/60 Hz
RS-232 IR
IN1608 IPCP SA
OVER DTP
OVER DTP
AMPLIFIED OUTPUT
G
Tx Rx
G
Tx Rx
G
Tx Rx
34G
12RTS CTS
COM 1COM 2COM 3DIGITAL I/O
1
SG
SG
2
IR/SERIAL RELAYS
1 2 C3 4 C
PWR OUT = 6W
eBUS
+V+S -S G
R
SIG
DTP IN
LINK SIG
DTP IN
LINK SIG
DTP OUT
LINK
IN1608 IPCP SA
100-240V ~ -- A MAX
1
CONFIGURABLE
HDMI HDMI
5
8
C
RS-232 IR
RS-232 IR
Tx Rx Tx RxG
Tx Rx Tx RxG
Tx Rx Tx RxG
HDMI
A
B
3
INPUTS OUTPUTS AUDIO INPUTSOUTPUTS REMOTE
2
6
7
4
Tx Rx
RS-232
G
LAN 1
LAN 2LAN 3
RESET
L1R
L
R
L2
R
3
L4
R
L5R
+48V
+48V
12
LR
VARIABLE
1
2
MIC/LINE
L6
R
50/60 Hz
RS-232 IR
IN1608 IPCP MA 70
OVER DTP
OVER DTP
G
Tx Rx
G
Tx Rx
G
Tx Rx
34G
12RTS CTS
COM 1COM 2COM 3DIGITAL I/O
1
SG
SG
2
IR/SERIAL RELAYS
1 2 C3 4 C
PWR OUT = 6W
eBUS
+V+S -S G
R
SIG
DTP IN
LINK SIG
DTP IN
LINK SIG
DTP OUT
LINK
70V - 100W
CLASS 2 WIRING
AMPLIFIED OUTPUT
IN1608 IPCP MA 70
Figure 6. IN1608 IPCP SA and IN1608 IPCP MA 70 Rear Panels
IN1608 HDBT models
The IN1608 HDBT models feature the same connectors as their IN1608 DTP counterparts
except for the remote output. For IN1608 HDBT models, the remote output is an HDBaseT
output instead of a DTP output.
