IN1606 and IN1608 Series Scaling Presentation Switcher • Installation 21
HDMI Connections

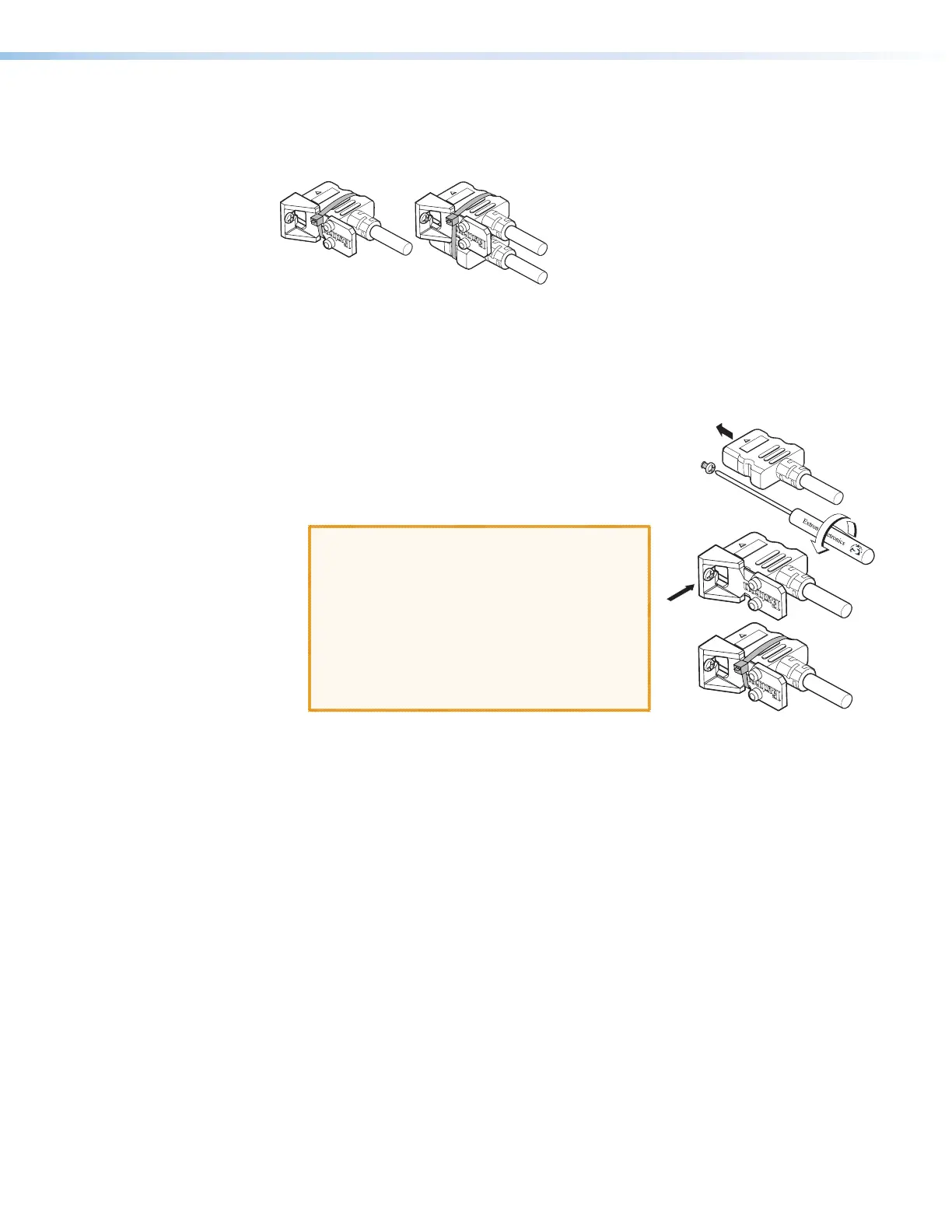

Use an Extron LockIt lacing bracket to secure an HDMI cable to the device. The
bracket can be used in a side or stacked formation, as shown below.
Side Mounted
Stacked
Figure 17. LockIt Lacing Bracket Mounting Options
1. Plug the HDMI cables into the panel connection (see
1
of the image below and to
the right).
2. Loosen the side HDMI connection mounting screw
from the panel enough to allow the LockIt lacing
bracket to be placed over it (
2
). The screw does not
have to be removed.
3. Place the LockIt lacing bracket on the screw and
against the HDMI connector, then tighten the screw
to secure the bracket (
3
).
ATTENTION:
• Do not overtighten the HDMI connector
mounting screw. The shield to which it
is fastened is very thin and can easily be
stripped.
• Ne serrez pas trop la vis de montage du
connecteur HDMI. Le blindage auquel elle
est attachée est très fin et peut facilement
être dénudé.
4. Loosely place the included tie wrap around the HDMI connector and the LockIt
lacing bracket (
4
).
5. While holding the connector securely against the lacing bracket, use pliers or a
similar tool to tighten the tie wrap, then remove any excess length.
1
2
3
4
