IN1606 and IN1608 Series Scaling Presentation Switcher • Operation 29
Picture Controls Submenu

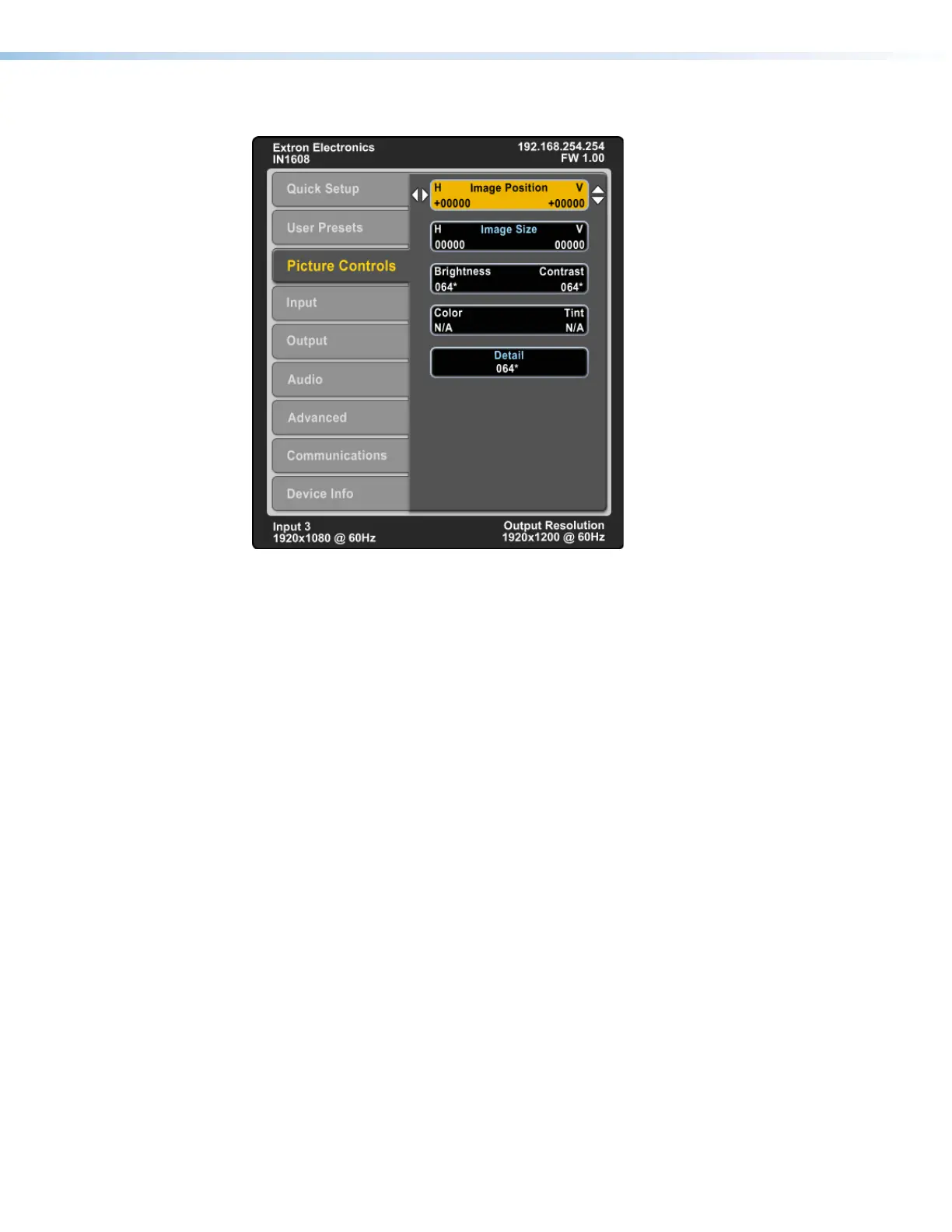

Figure 22. Picture Controls Submenu (IN1608)
The Picture Controls submenu adjusts picture settings.
Image Position — Press the Left and Right buttons to select the horizontal (H) or
vertical (V) position of the image. Press the Up and Down buttons to adjust the value of the
selected position.
Image Size — Press the Left and Right buttons to select the horizontal (H) or
vertical (V) size of the image. Press the Up and Down buttons to adjust the value of the
selected position.
Brightness and Contrast — Press the Left and Right buttons to select the brightness
or contrast of the image. Press the Up and Down buttons to adjust the value of the selected
feature.
Color and Tint — Press the Left and Right buttons to select the color or tint of the
image. Press the Up and Down buttons to adjust the value of the selected feature. These
settings are only applicable to analog NTSC, PAL, and SECAM signals.
Detail — Press the navigation buttons to adjust the detail of the image.
