Gain — Press the navigation buttons to set the gain (in dB) for the active analog or
LPCM-2Ch input.
Mic/Line Gain and Phantom — After selecting Mic/Line 1 or Mic/Line 2 from the
list of submenu items, press the Left and Right buttons to select the Mic/Line gain or
phantom power status. Press the Up and Down buttons to set the gain (in dB) or enable or
disable phantom power for the selected value.
Mic/Line Volume — Press the navigation buttons to set the Mic/Line mix volume (in dB).
Program Volume — Press the navigation buttons to set the Program mix volume (in dB).
Output 1/2 Format — Press the navigation buttons to set the audio output format.
Advanced Submenu

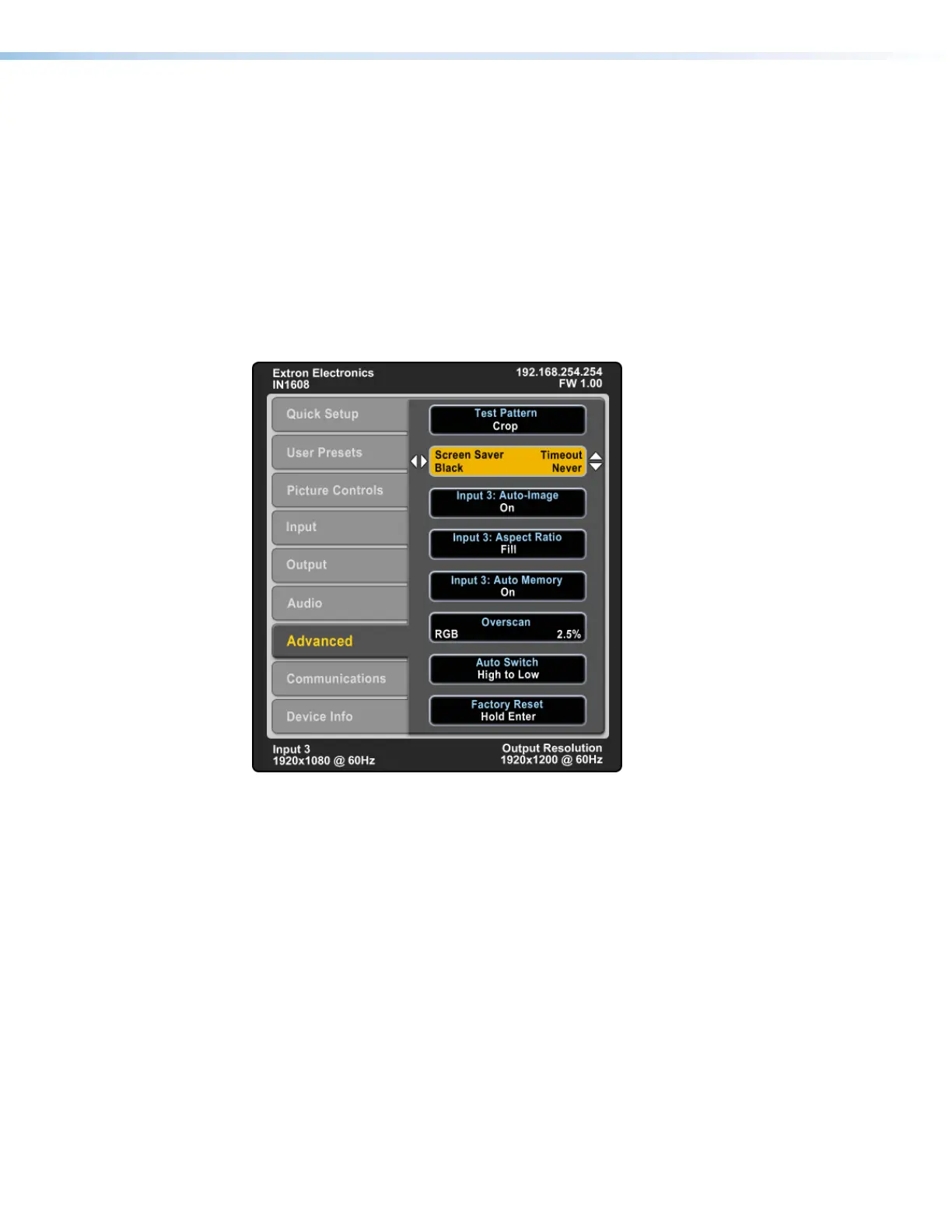

Figure 26. Advanced Submenu (IN1608)
The Advanced submenu adjusts of test patterns, screen saver mode, automatic
Auto-Image, aspect ratio, auto memory, overscan settings, auto switch, and factory reset.
