Room Scheduling System • Room Agent Installation and Configuration 22
Exchange configuration
When you select Microsoft
®
Exchange™ (see figure 17,
1
on the previous page), the
Panel Configuration window displays the settings necessary to connect to the panels
and configure them for Microsoft Exchange (you may also commonly hear this referred to as
“Exchange On Premises” or “on Prem”) (see figure 18).

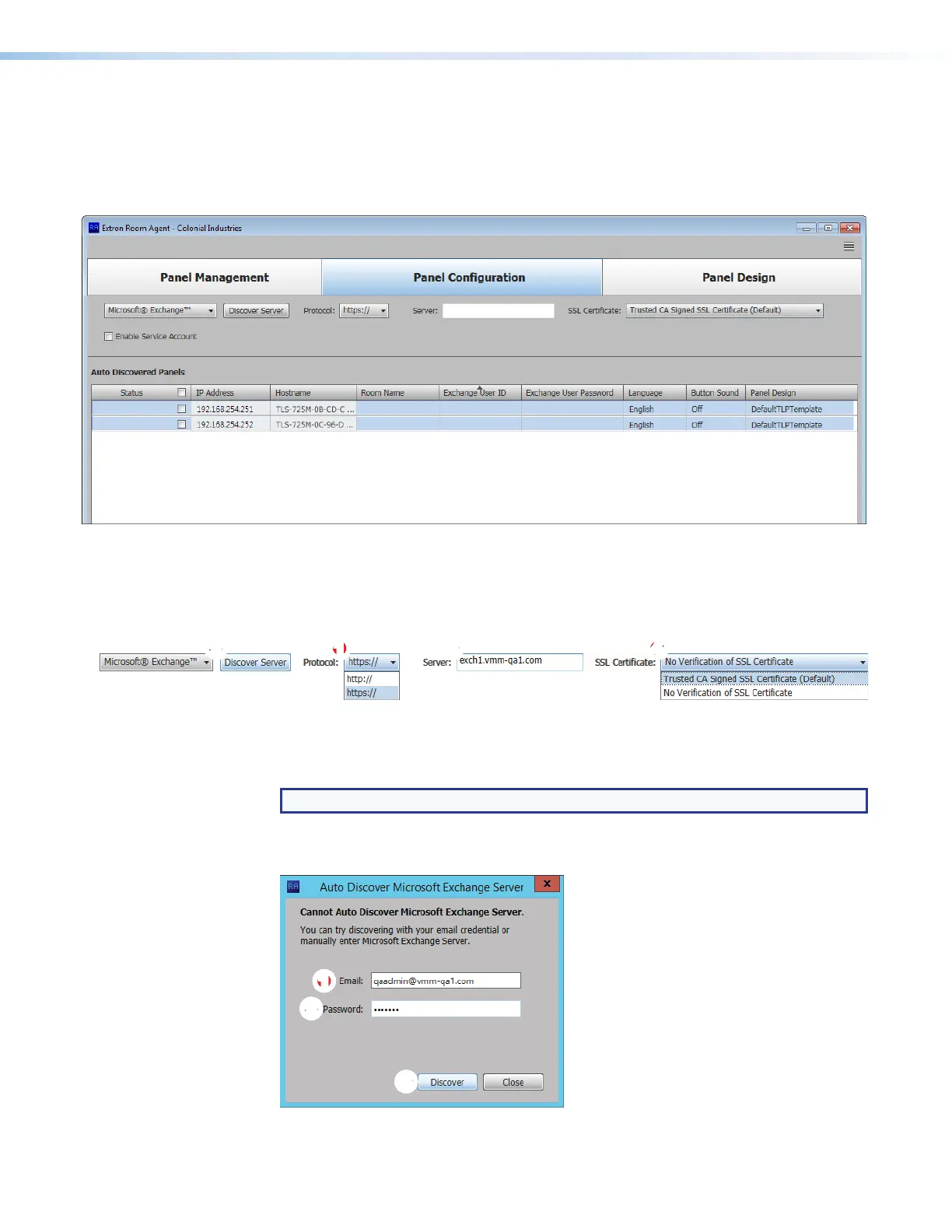

Figure 18. Panel Configuration Window, Exchange View
Connect to the server
Connect to the Microsoft Exchange server as follows (see figure 19):
2222222222111111111133333333334444444444
Figure 19. Establishing a Connection the Microsoft Exchange Server
1. If necessary, click the Protocol drop-down list and select between https:// and
http:// (see figure 19,
1
).
NOTE: https:// is the correct selection for virtually all applications.
2.
Click the Discover Server button (
2
). The Auto Discover Microsoft Exchange
Server dialog box opens (see figure 20).
1111111111
22
22222222
33
33333333
Figure 20. Auto Discover Dialog Box
