Control Tab
Set and View Ties page

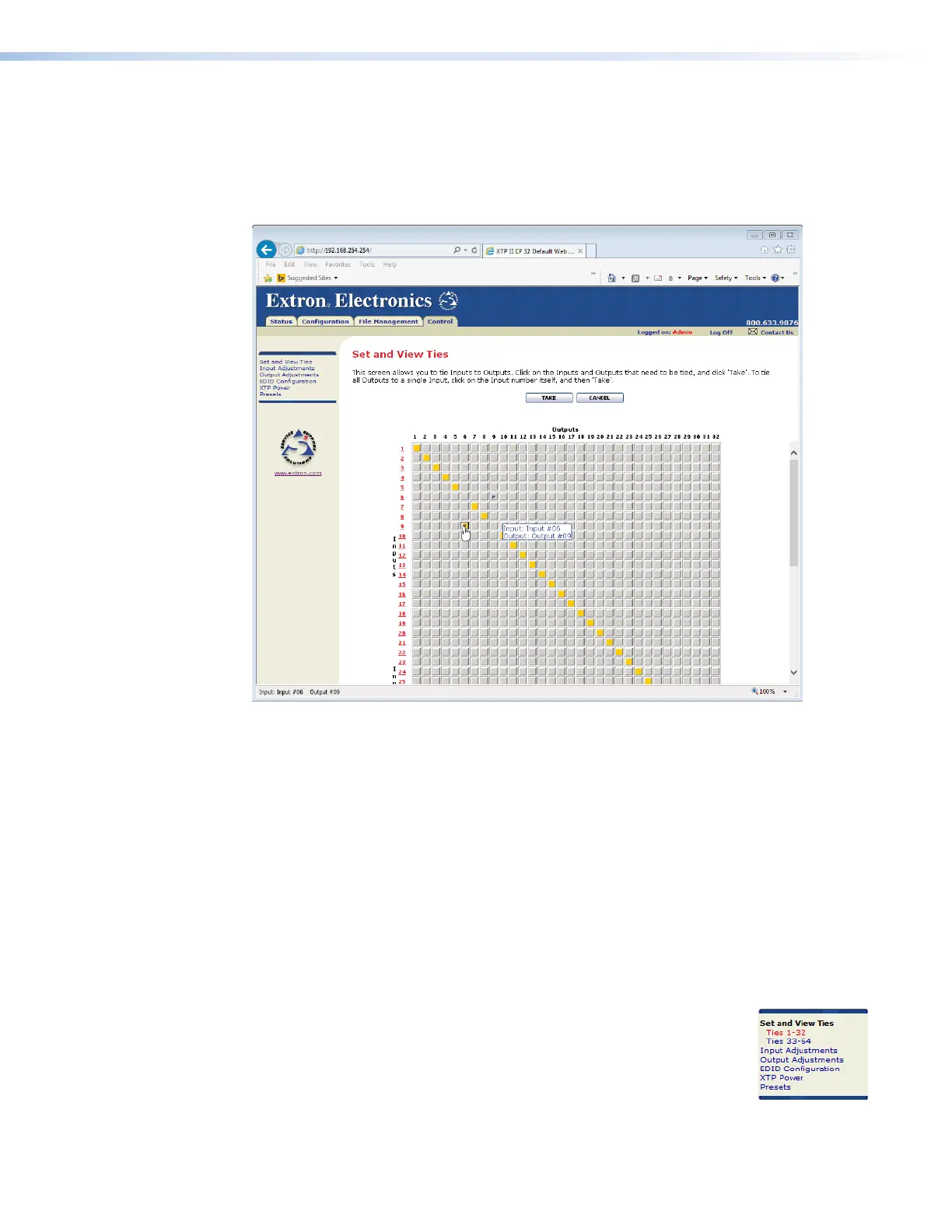

You can create ties on the Set and View Ties page (see figure 69). Access the Set and
View Ties page by clicking the Control tab.
Figure 69. User Control Ties page
The page consists of a matrix of input (rows) and output (columns) selection buttons of four
different colors:
• Amber buttons indicate video and audio ties.
• Green buttons indicate video only ties.
• Red buttons indicate audio only ties.
• Gray buttons indicate no ties.
The page displays only those inputs and outputs that are available on installed boards only.
Select and switch an input as follows:
1. Click the Video Only, Audio Only, or Video & Audio button to select video, audio,
or both for switching (audio follow or audio breakaway). Each mouse click on a button
toggles the other two buttons off.
2. XTP II CrossPoint 6400 only — If necessary, select the desired
range of outputs to tie by clicking either the Ties 1-32 or
Ties 33-64 link on the left of the Set and View Ties page.
3. Move the mouse over the matrix of input and output selection buttons.
Click a button to create a pending tie (if a tie does not exist) or
pending untie (if a tie exists) of the input and output associated with
that button. A “P” (for pending) appears in the button.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • HTML Operation
135
