Extron electronics XTP II CrossPoint 6400 User Manual

Rear Panel Cabling and Features
Figure 2 shows an XTP II CrossPoint 1600. Figure 3, on the next page, shows an
XTP II CrossPoint 3200. Figure 4 on page 13 and figure 5 on page 14 show an
XTP II CrossPoint 6400. The models have similar features, but different-sized enclosures
and a different arrangement of the features.
INPUTS
OUTPUTS
100-240V
50-60Hz
-- A MAX
1−4
5−8
9−12
13−16
1−4
5−8
9−12
13−16
LAN
ACTLINK
REMOTE
RS-232/RS-422
RESET
AA
BB
CC
DD
EE
FF

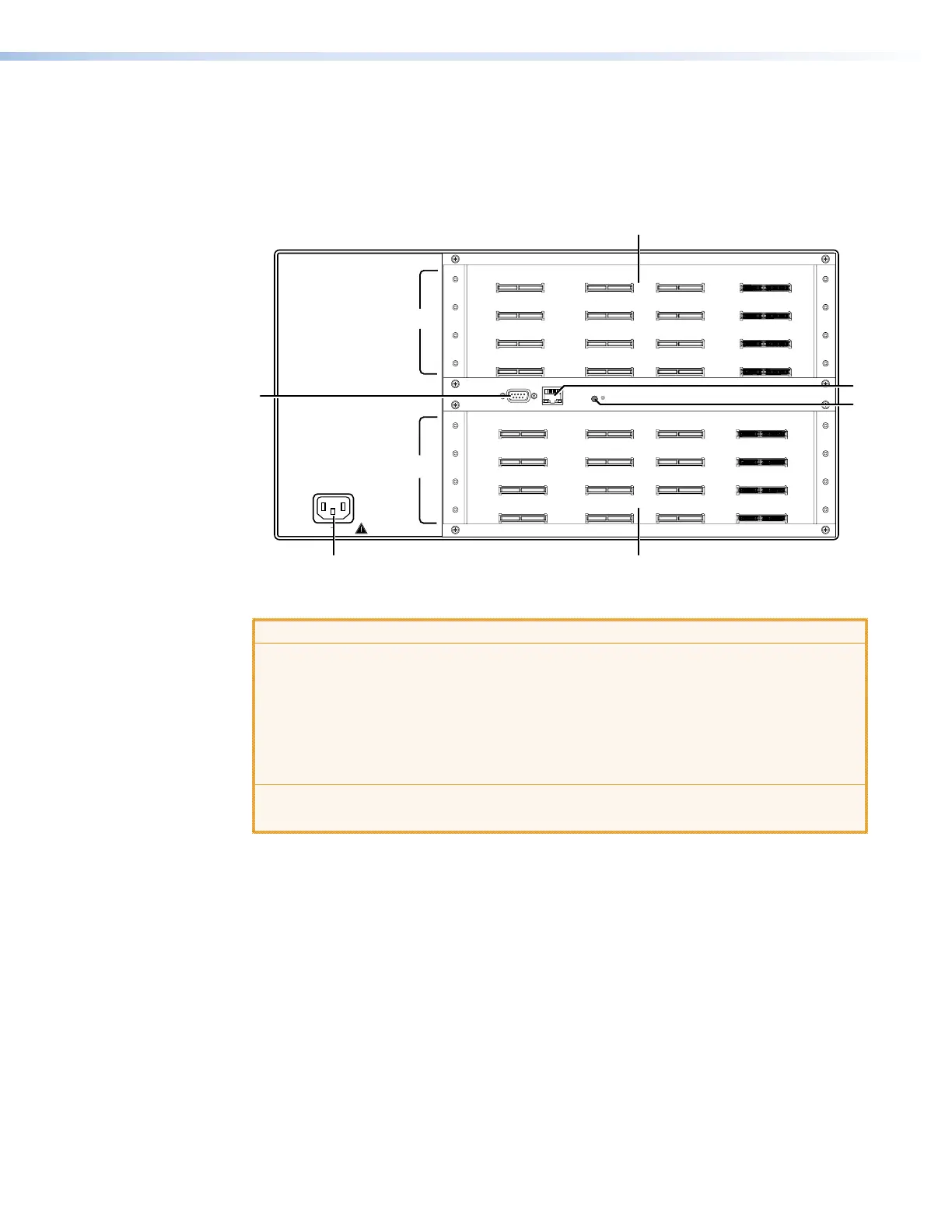

Figure 2. XTP II CrossPoint 1600 Matrix Switcher Rear Panel
ATTENTION:
• Use electrostatic discharge (ESD) precautions (be electrically grounded) when
making connections. Electrostatic discharge can damage equipment, even if you
cannot feel, see, or hear it.
• Prenez des précautions contre les décharges électrostatiques (ESD) (soyez
électriquement relié à la terre) lorsque vous effectuez des connexions. Les
décharges électrostatiques peuvent endommager l’équipement, même si vous ne
pouvez pas le sentir, le voir ou l’entendre.
• Remove system power before making all connections.
• Débranchez l’alimentation du système avant de faire n’importe quelle connexion.
A
Input boards space (see page 15)
B
Output boards space (see page 17)
C
Remote RS-232 / RS-422 port (see page 27)
D
LAN connection (Ethernet connector) (see page 27)
E
Reset button and LED (see page 27)
F
Power connector (see page 28)
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Installation 11
