Operation
This section describes the front panel operation of the XTP II CrossPoint Matrix Switcher,
including:
• Front Panel Controls and Indicators
• Front Panel Operations
• Rear Panel Operations
• Optimizing the Analog Audio
• Troubleshooting
• Configuration Worksheets
Front Panel Controls and Indicators
The front panel controls (see figure 30, figure 31 on the next page, and figure 32 on
page 32 are grouped into two sets. The input and output buttons,
A
and
B
, are grouped
on the left side of the control panel. The control buttons and video/audio (I/O) selection
buttons,
C
through
H
, are grouped on the right side of the panel.
AUDIO
VIDEO
I/O
CONTROL
ENTER PRESET
VIEW
ESC
INPUTS
OUTPUTS
1
2
3
4
5
6 7
8
9
10
11
12
14
15
16
13
1
2
3
4
5
6 7
8
9
10
11
12
14
15
16
13
XTP II CROSSPOINT 1600
XTP SERIES DIGITAL MATRIX SWITCHER
CONFIG
PRIMARY
REDUNDANT
POWER
12
CC
DD
EE
FF
AA
BB
GG
HH
II

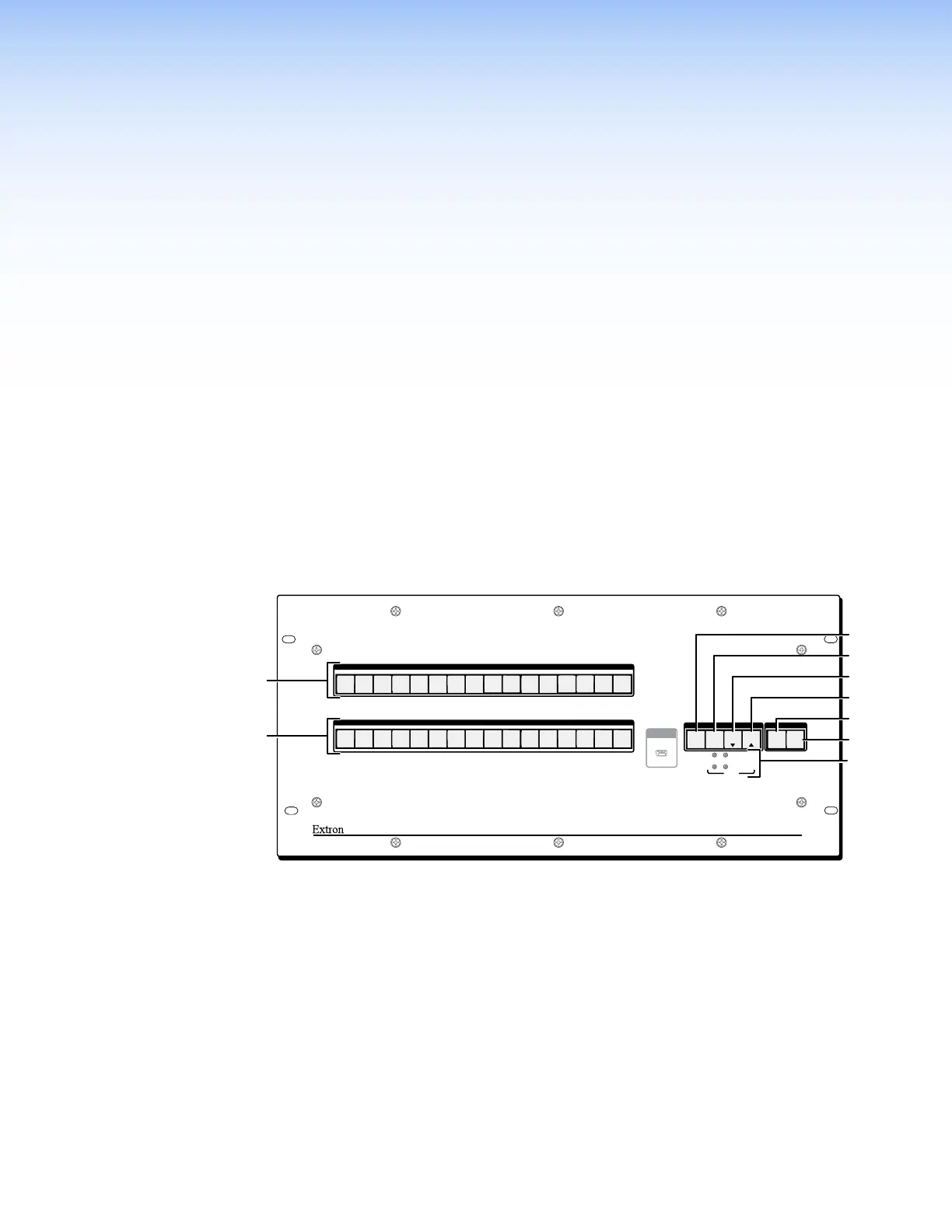

Figure 30. Front Panel, XTP II CrossPoint 1600 Switcher
A
Input buttons (see page 33)
B
Output buttons (see page 33)
C
Enter button (see page 34)
D
Preset button (see page 35)
E
View button (see page 35)
F
Esc button (see page 35)
G
Video button (see page 36)
H
Audio button (see page 36)
I
Power LEDs (see page 36)
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 30
