Worksheet Example 2: Daily Configuration

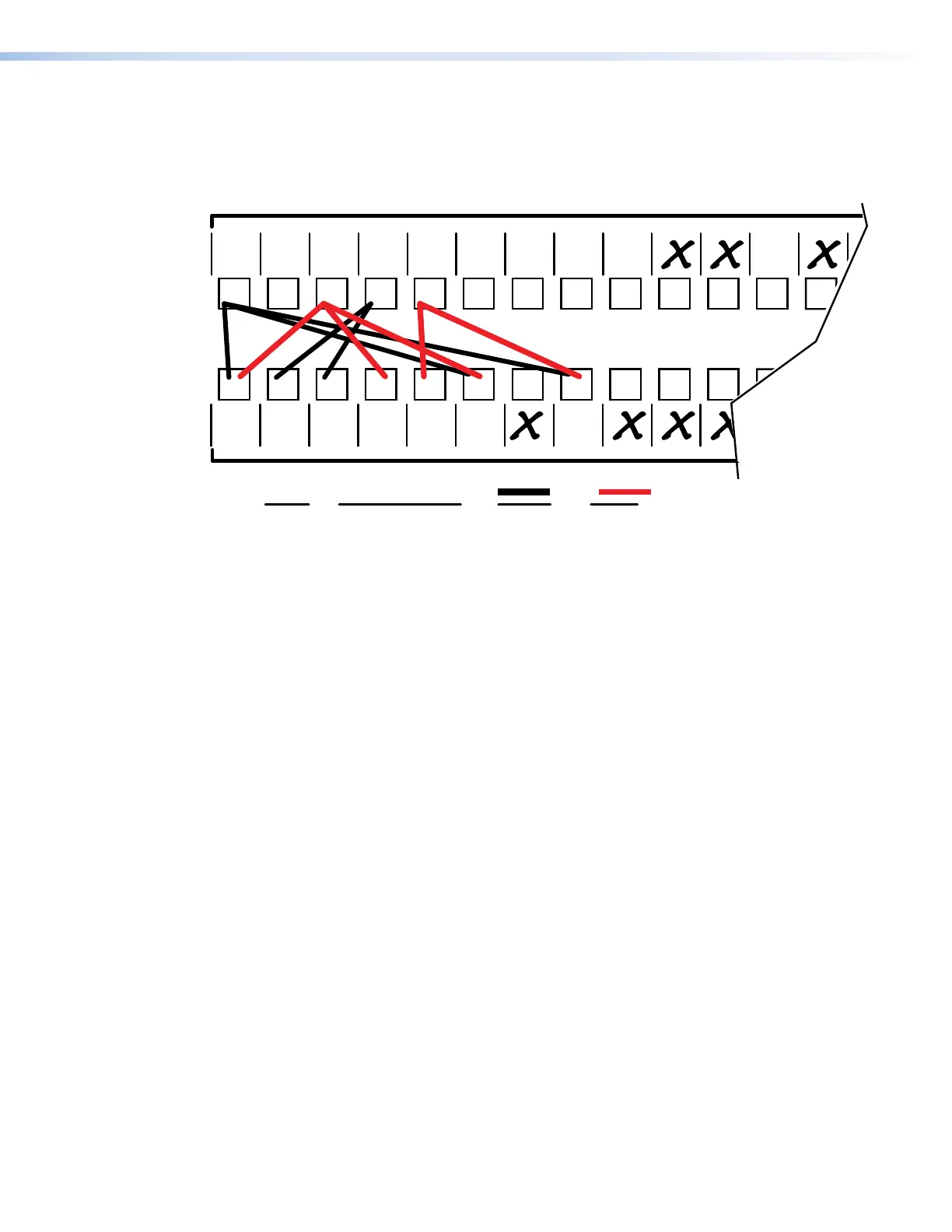

Figure 54 continues from worksheet example 1 by showing the video and audio ties that
make up the configuration of preset 1. Black lines shows video ties and red lines show the
audio ties.
1 2345678
12345678
91011
11
12 13
10
9
Input sources
Output destinations
Preset # Title: Video: Audio:
Fill in the preset number and use colors, dashes, etc., to make connecting lines.
Indicate if the configuration is for video, audio, or both.
Classroom
#1 VCR
USP 405
Audio
CD
PC 2
RGB 202
PC 1
RGB 202
Weekly status mtg 3
Camera
#2
Camera/
mic - Main
podium
Main hall
FP #1
Main hall
FP #2
Podium
monitor
Sound
system
#1
Sound
system
#2
VCR
(VSC 500)
DA 6
Classroom
#2 VCR
USP 405
Laptop
RGB 202
Rack DVD
(USP 405)
VTG 400
Figure 54. Worksheet Example 2: Daily Configuration
In this example:
• The image of the presenter, from the main podium camera (input 1), is:
• Displayed in the main hall (output 1)
• Displayed in the lobby via a distribution amplifier (output 8)
• Tied to the VCR (output 6)
• The presenter has a presentation on her laptop computer (input 4) that is:
• Displayed in the main hall (output 2)
• Displayed locally on the podium (output 3)
• The audio from the microphone the presenter uses (input 1) is:
• Played in the hall (output 1)
• Played in the conference room (output 4)
• Sent to the VCR (output 6)
• Classical music from the CD player (input 5) is:
• Played in the background in the main hall on sound system #2 (output 5)
• Played in the lobby via a distribution amplifier (output 8)
