Extron electronics XTP II CrossPoint 6400 User Manual

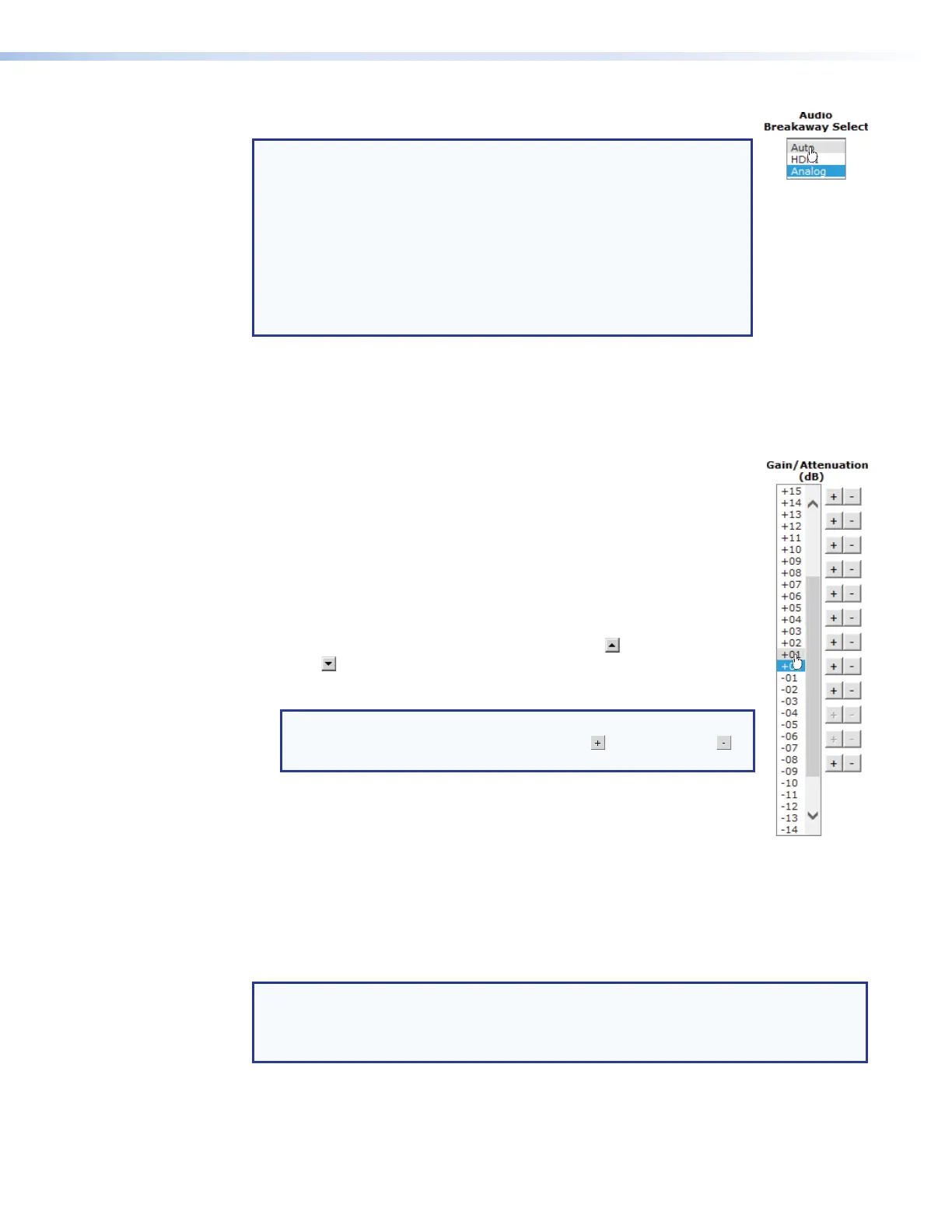

Selecting audio breakaway
NOTES:
• Available for inputs on XTP CP 4i (XTP), XTP CP 4i HDMI, and
XTP CP 4i DVI Pro boards.
• When HDMI is selected, the switcher routes the audio embedded
in the digital input.
• When Analog is selected, the switcher routes the analog audio
from the associated analog audio port.
• When Auto is selected, digital audio takes priority over analog
audio.
You can select the input audio for output as follows:
1. Click the Audio Breakaway Select drop-down list for the desired input. A drop-down
list appears.
2. Click the desired setting, Auto, HDMI, or Analog.
Changing the input gain and attenuation
You can set the level of gain or attenuation (-18 dB to +24 dB) of each
analog audio input from the Input Adjustments page. Adjust the audio
levels so there are no noticeable volume differences between sources.
Change the gain and attenuation setting for an analog audio input as
follows:
1. Click the Input Audio Level drop-down list for the desired input. A
drop-down list appears.
2. Click and drag the slider or click on the scroll up button or the scroll
down button until the desired value is visible.
3. Click and the desired value.
NOTE: As an alternative to steps 2 and 3, or to listen to the audio
as you make adjustments, click on the up button or down
button.
Output Adjustments Page
The Output Adjustments page (see figure 71 on the next page) is a
central location for changing how output video and audio are processed and muted. Access
the page by clicking the Output Adjustments link on the left of the Set and View Ties,
Input Adjustments, EDID Configuration, XTP Power, or Presets page.
The page tailors the options available for selection when a XTP CP 4o SA (analog audio)
output board is installed. Allow Audio Only and Audio Breakaway Select are not
available for selection.
NOTE: All options are available for selection for XTP CP 4o (XTP output) boards. If the
output from an endpoint connected to the XTP board is compatible with the option, the
adjustment is made. The Output Adjustments page indicates the change
regardless.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • HTML Operation
137
