4. Select the output: Press and release the Output 4 button.
C O N T R O L
PRESET ENTER
ESCVIEW
OUTPUTS
1
2
3
4
5
6 7
8
15
16

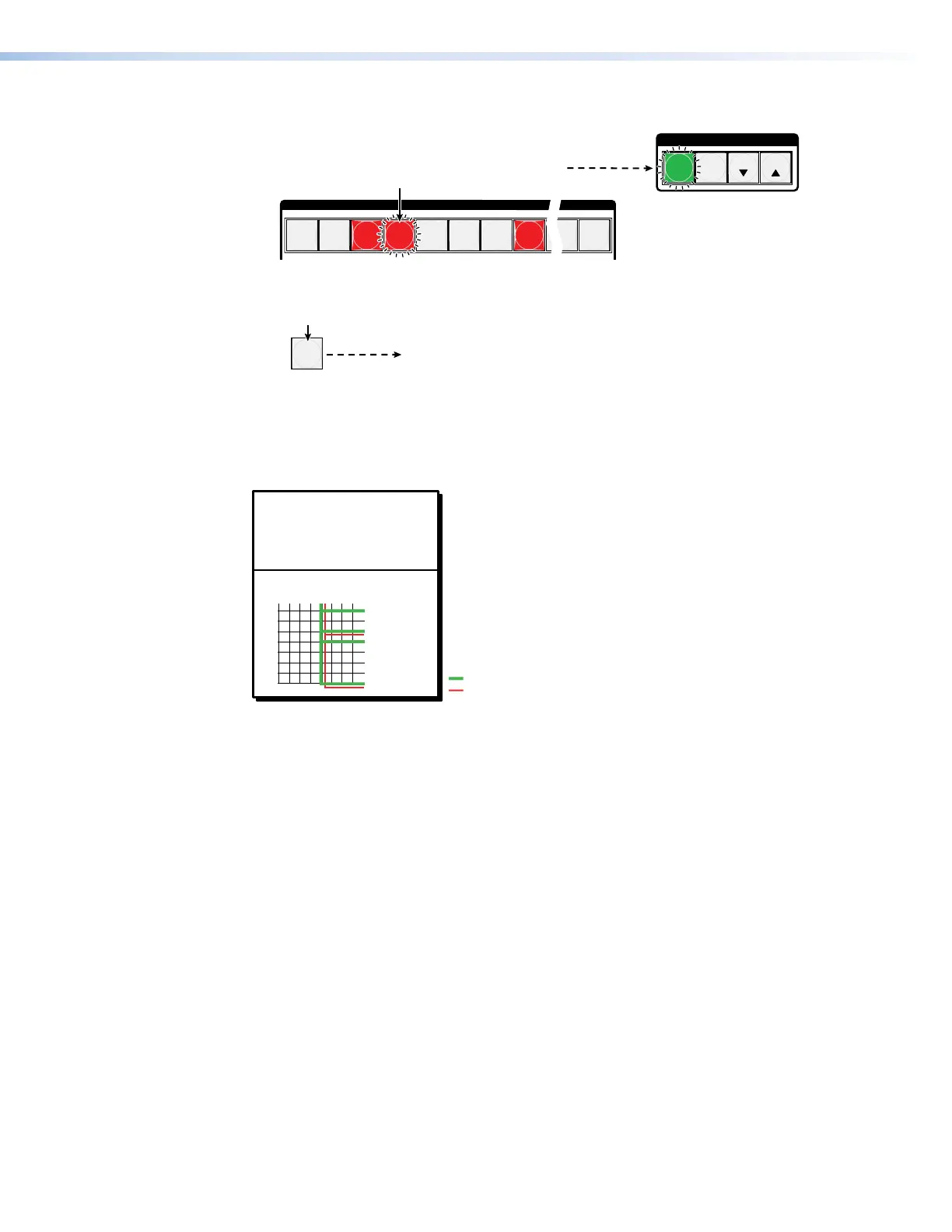

Press the button.
The button blinks red to indicate the pending change:
audio input will be untied.
The Enter button blinks
green to indicate the need to
confirm the change.
5. Confirm the change: Press and release the Enter button.
ENTER
All input buttons and output buttons
return to unlit or background illumination.
Press the Enter button to confirm
the configuration change.
The Enter button returns to
unlit or background illumination.
The current configuration (see figure 36) is now:
• Video — Input 5 video is tied to output 1, output 3, output 4, and output 8.
• Audio — Input 5 audio is tied to output 3 and output 8.
Input 5 video tied
to outputs 1, 3, 4, and 8
Input 5 audio tied
to outputs 3 and 8
Input
Output
1
3
4
8
5
Video
Audio
Figure 36. Final Configuration, Example 3
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 43
