Example 4: Viewing video and audio, audio only, and video only ties
In the following example, we view the video and audio, audio only, and video-only ties in the
current configuration. The steps show the front panel indications that result from your action.
NOTE: This example assumes that you have performed example 1 on page 39,
example 2 on page 41, and example 3 on page 42.
1. Clear all selections: Press and release the Esc button.
2. Select View-only mode: Press and release the View button. The View button lights
red.

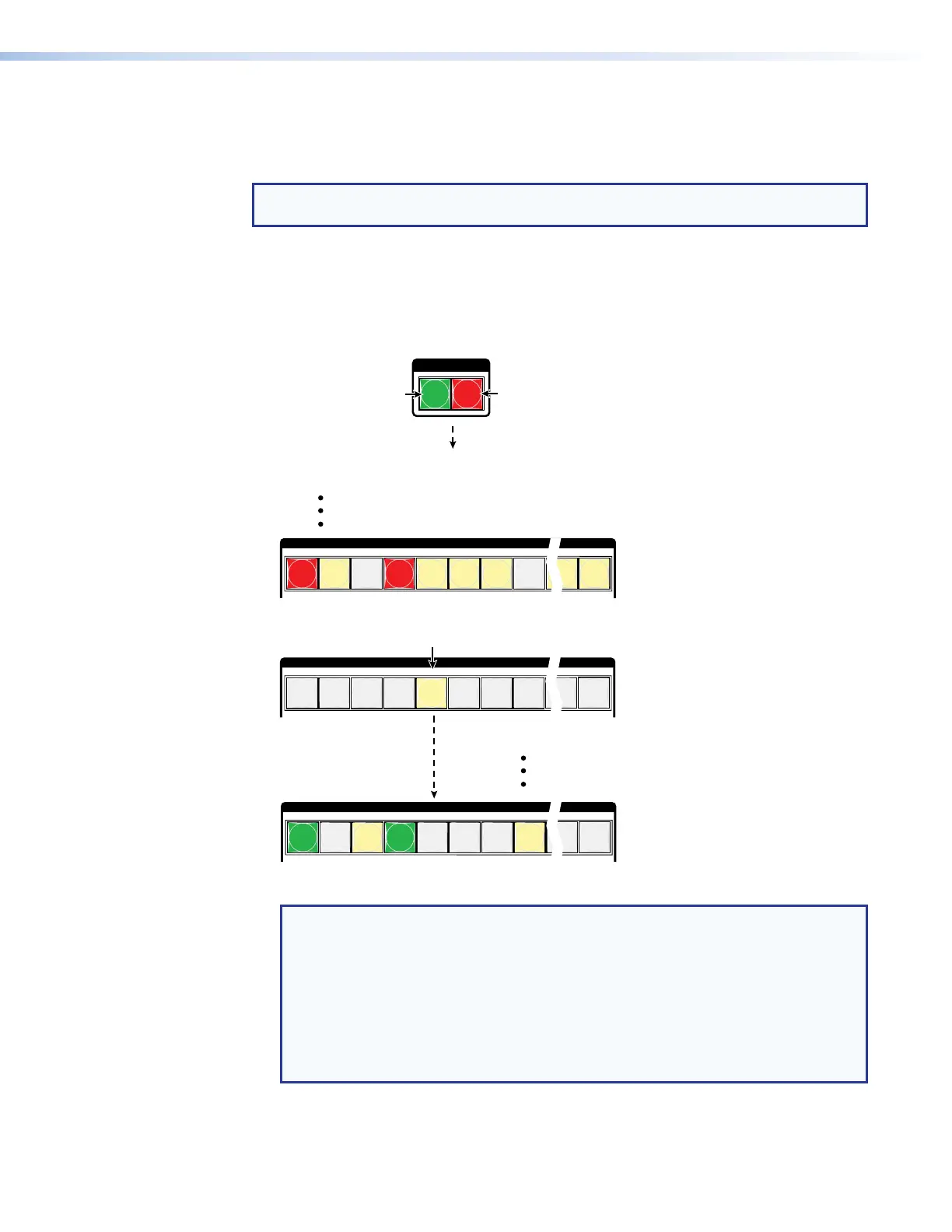

3. Select video and audio for viewing: Press and release the Video button and the
Audio button as necessary to light both.
I / O
VIDEO AUDIO
OUTPUTS
1
2
3
4
5
6 7
8
15
16
Until you select an input, the buttons for all untied
outputs light the appropriate color:
Amber if no inputs are tied
Green if no video inputs are tied (only audio is tied)
Red if no audio inputs are tied (only video is tied).
Press the Audio button
to toggle on and off.
The button lights red
when selected.
Press the Video button
to toggle on and off.
The button lights green
when selected.
4. Select an input: Press and release the Input 5 button.
INPUTS
1
2
3
4
5
6 7
8
15
16
OUTPUTS
1
2
3
4
5
6 7
8
15
16
The output buttons for outputs that are not tied to Input 5 are
either unlit or background illuminated.
The output buttons for outputs that are tied to Input 5
light or blink the appropriate color:
Amber for audio and video ties (audio follow)
Green for video ties (audio breakaway)
Red for audio ties (audio breakaway)
Press the button. It lights amber.
NOTE: You can also view a set of ties by selecting a tied output. Demonstrate this
as follows:
• Note the number of a lit output button, and then press and release the output
button for an untied (unlit or background illumination) output.
• Observe that all of the untied outputs light.
• Then press the output button that you noted previously.
• Observe that the selected output button, the tied input button (input 5), and the
output buttons light for all of the outputs that are tied to the input.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 45
