FAAC 746 E R Z20 User Manual

3
746 E R 9 732099 - Rev.D
0117 0001
tttttt
tttttt
tttt tttt
tttttt
tttt
tt
tttttt
tttttt
tttttt
746 E R Z16
* REFERS TO 230 V ~ - 50Hz
FAAC S.p.A. Soc. Unipersonale
Via Calari, 10 - 40069 Zola Predosa BOLOGNA
Italy
Italy
FAAC HP OIL
Cod. ... MMYY PROG
Translation of the original instructions
ENGLISH

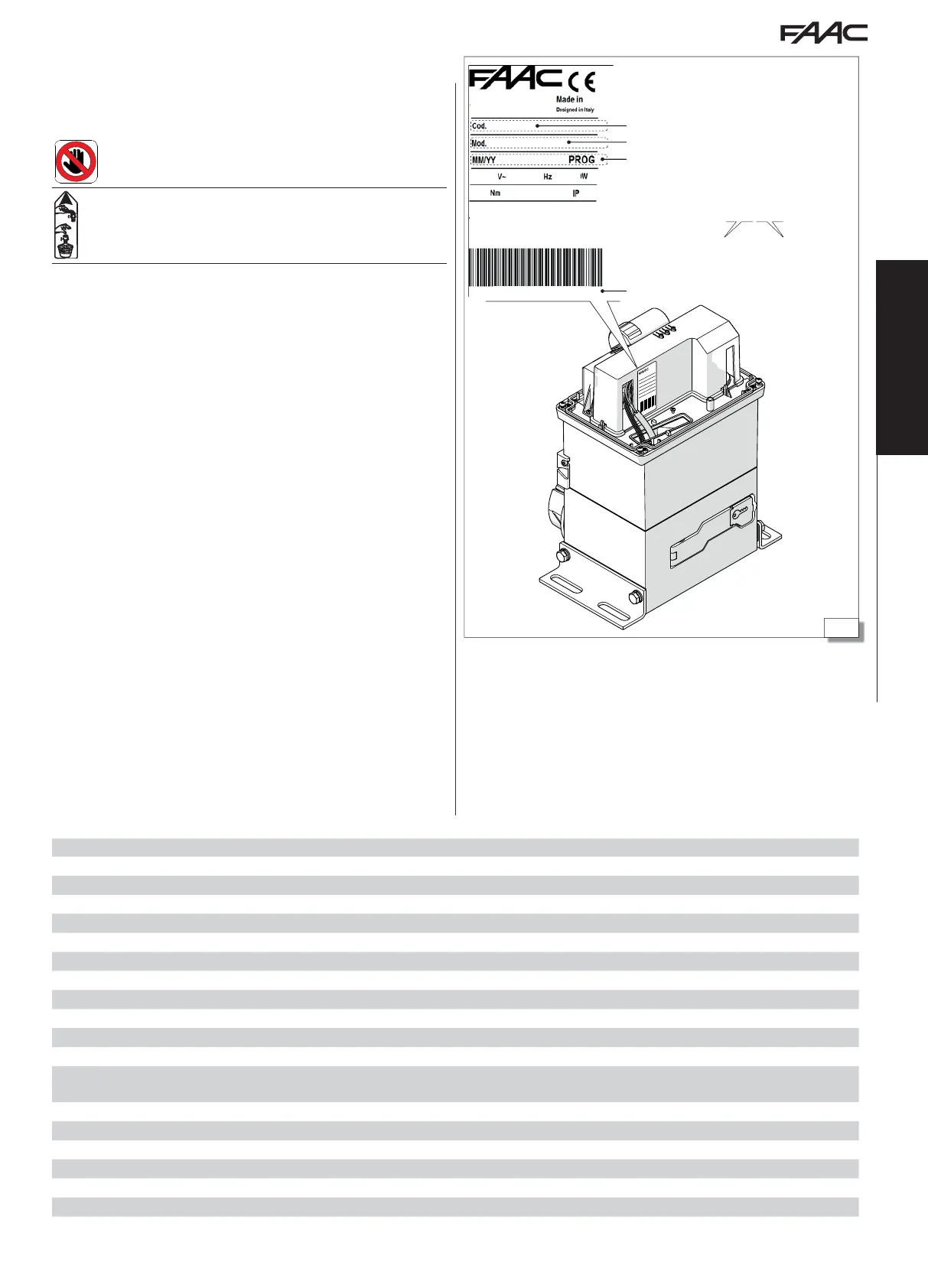

3.5 PRODUCT IDENTIFICATION
The product can be identified by the plate (3).
PRODUCT WARNINGS
The adhesive sign must be placed on the casing by the installer. It indicates
the risk of trapping fingers / hands due to the rotation of the pinion.
Adhesive sign on the casing. It indicates the breather screw that must be
removed before start-up.
3.6 TECHNICAL SPECIFICATIONS
Electromechanical oil-bath gearmotor, supplied with a pinion for the
rack. Available in versions:
- 746 E R Z16 with pinion Z16
- 746 E R Z20 with pinion Z20
Irreversible system In order to be operated manually, the gearmotor
has to be released using the special key.
Magnetic encoder The encoder determines the position of the leaf
and the speed of movement.
Adjustable sensitivity obstacle detection The electronic board detects the
presence of an obstacle via the encoder. If an obstacle is detected
during opening or closing, the gate reverses for 1 s and then the
automation stops.
Force limitation The maximum force exerted by the gearmotor is
adjusted by means of the mechanical twin-disk clutch in oil-bath.
Magnetic limit switches To be fixed to the rack to set the opening and
closing stop positions.
End of travel slowdown Adjustable electronic slowdown near to the
open and closed positions.
Board 780D The built-in electronic board is equipped with a display,
programming buttons and a protective plastic cover.
Equipment required The following must be purchased:
- foundation plate
- rack (module 4)
5 Technical data (referring to 230 V~ 50 Hz/115 V~ 60 Hz)
746 E R Z16 746 E R Z20 746 E R Z20 [115 V]
Power supply voltage 220-240 V~ 50/60 Hz 220-240 V~ 50/60 Hz 115 V~ 50/60 Hz
Max power 400 W 400 W 400 W
Max thrust force 810 N 650 N 650 N
Max torque at initial thrust 345 N 275 N 275 N
Pinion Z16 Module 4 Z20 Module 4 Z20 Module 4
Start-up capacitor 12.5 µF V~ 12.5 µF V~ 50 µF V~
Thermal protection 120°C automatic rearming 120°C automatic rearming 120°C automatic rearming
Max leaf length 40 m 50 m 50 m
Max leaf weight 600 kg 400 kg 400 kg
Leaf speed 9.6 m/min 12 m/min 12 m/min
Stopping space 40 mm 45 mm 45 mm
Type of use Residential buildings/Apartment
complexes
Residential buildings/Apartment
complexes
Residential buildings/Apartment
complexes
Ambient operating temperature -20 °C to +55 °C -20 °C to +55 °C -20 °C to +55 °C
Continuous use time (ROT) 90 min at 25°C 50 min at 55°C 90 min at 25°C 50 min at 55°C 90 min at 25°C 50 min at 55°C
Use frequency 70% at 25°C 50% at 55°C 70% at 25°C 50% at 55°C 70% at 25°C 50% at 55°C
Protection rating IP44 IP44 IP44
Dimensions (LxDxH) 275x191x336 mm 275x191x336 mm 275x191x336 mm
Gearmotor weight 14 kg 14 kg 14 kg
Oil FAAC HP OIL FAAC HP OIL FAAC HP OIL
Sale code
Product name
Month/year of production + Progressive number
for the month of production
Example:
IDENTIFICATION NUMBER
made in:
January 2017
progressive:
0001
