FX15 Controller Technical Bulletin

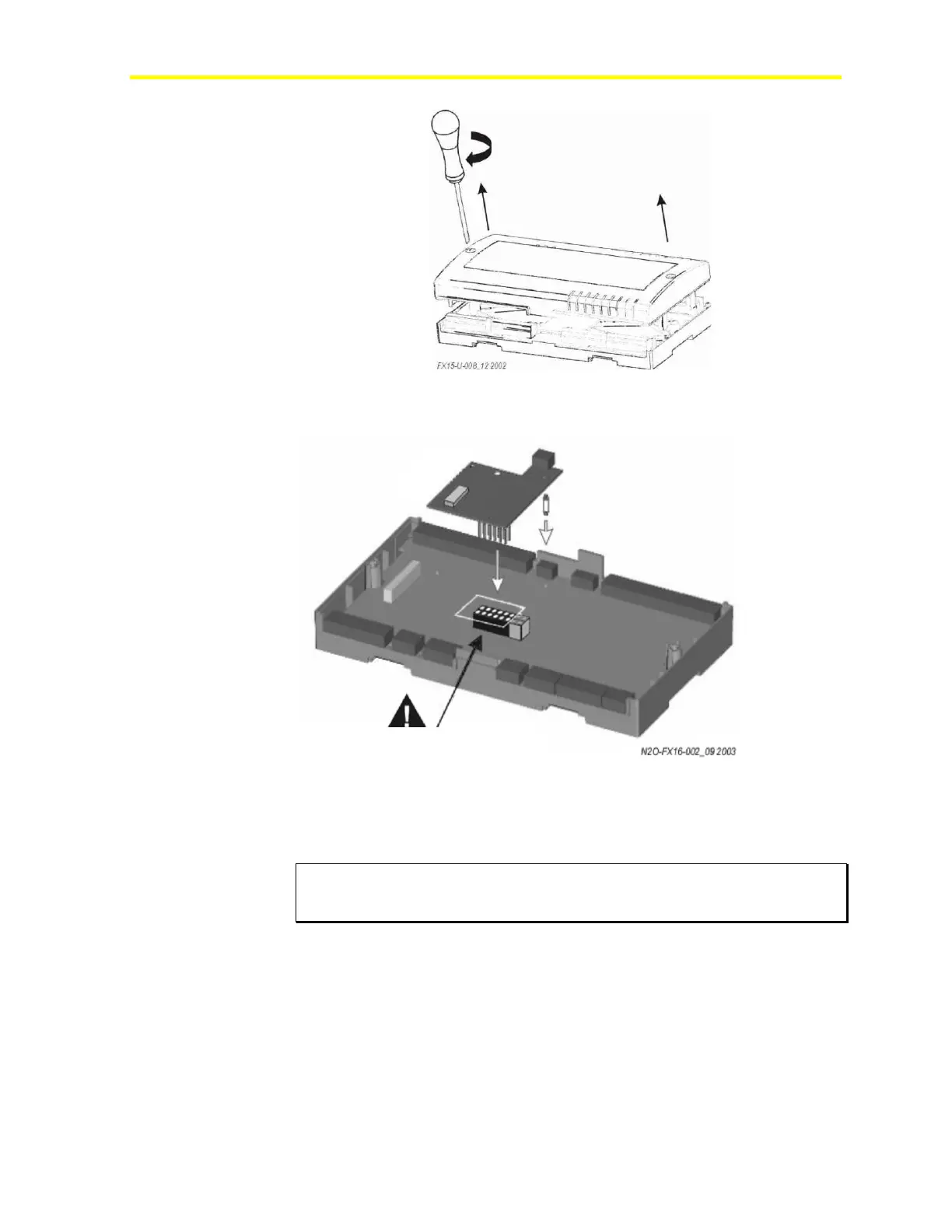

Figure 15: Open the Controller
3. Insert the card. See Figure 16.
Figure 16: Insertion of the N2 Open Card
4. Set the address DIP switches.
5. Replace and close the lid.
IMPORTANT: The Complementary Metal Oxide Semiconductor (CMOS)
integrated circuit in the controller and on the communication card are sensitive
to static current discharges. Take suitable precautions.
Align the pins as shown in figure.
