Panel PC.
CNC 8065
2.
·28·
(REF: 1801)
MONITOR-21 MULTITOUCH.
2.4.2 Securing the module.
The module must be installed in a proper enclosure that may be located on the machine or
on an external support. To insert the unit into the enclosure, it must have a big enough hole
to allow to insert it easily, without obstacles and without forcing the unit. See "2.4.1 Enclosure
design." on page 27.

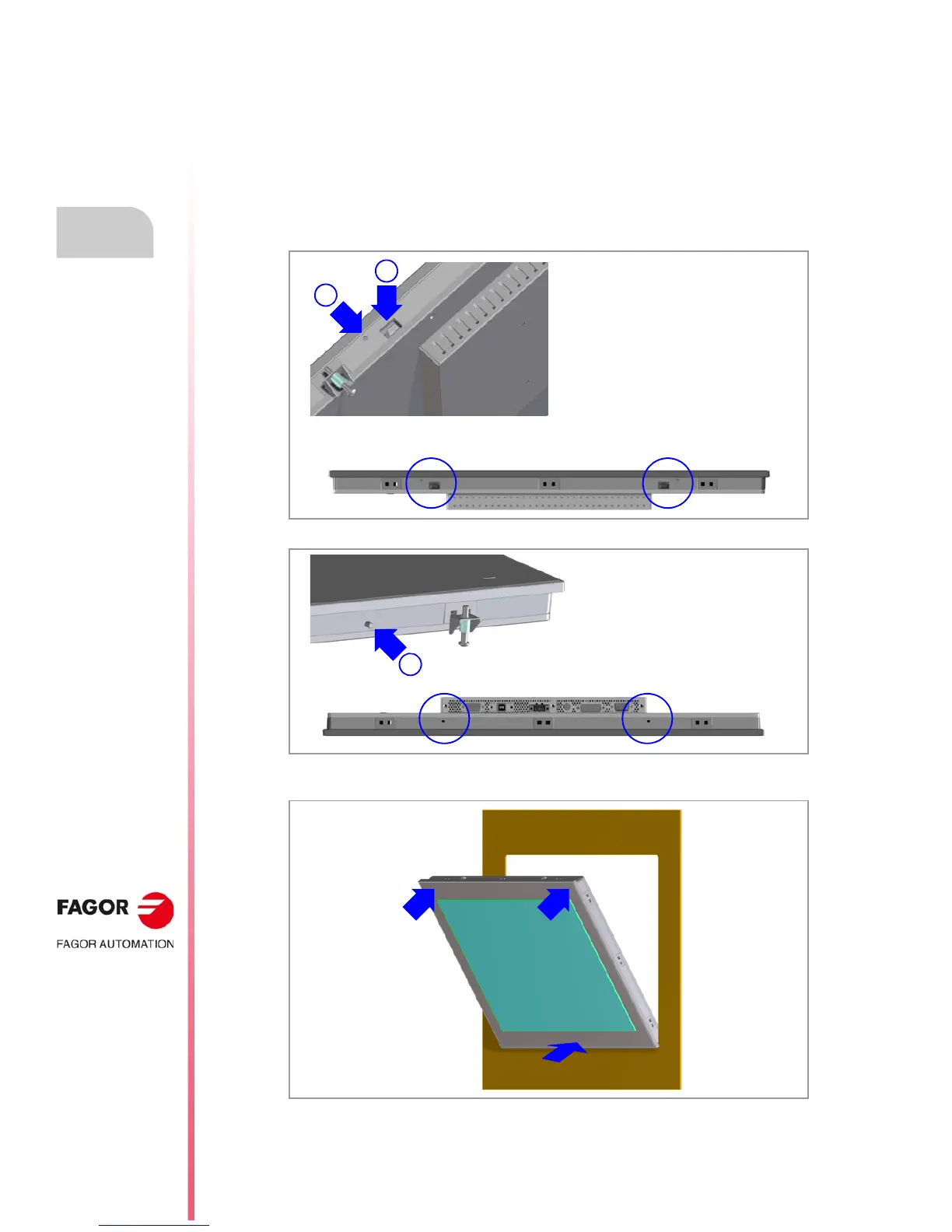

The module is mounted from inside the enclosure. Once the unit has been inserted into the
enclosure, secure it from the inside with the tension jacks. To properly secure it, use all the
tension jacks on the back of the unit. Apply a tightening torque of 0.7 Nm.
1 Use the two top screws (A) to fasten the pressure hooks (B).
2 Use the two bottom stop screws (C).
3 Rest the monitor on the stop screws inside the hole and push the top part until the
pressure hooks hold the monitor.
