Fagor 8065 M - 3.5 PPC-21 W Voltage Supply; Monitor Power: 24 V DC; Panel PC Power: 24 V DC

Panel PC.
CNC 8065
3.
·53·
(REF: 1801)
PPC-21W.

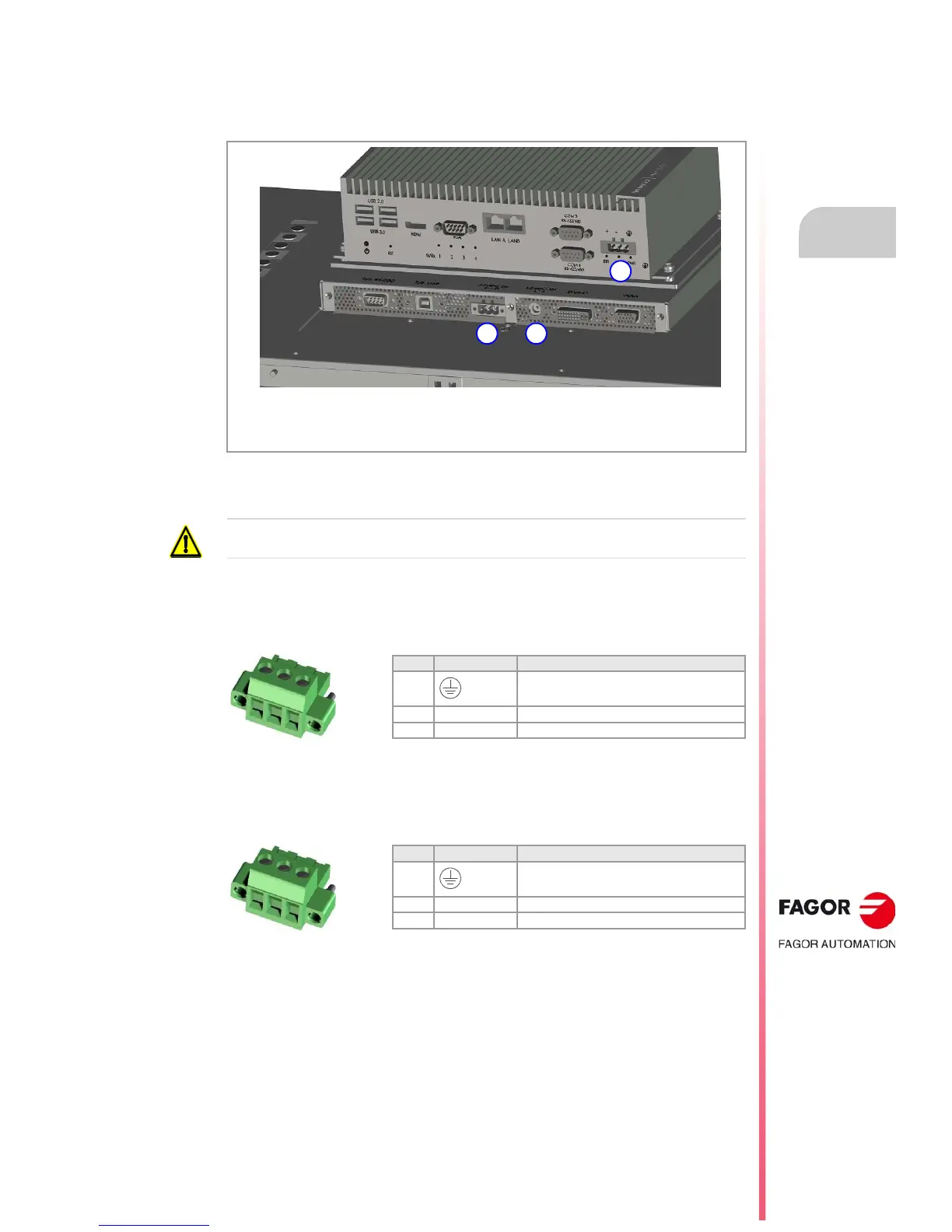

3.5 Voltage supply for the module.
The monitor and the panel PC require separate power supplies; it is necessary to power both
modules.
The monitor has two different voltage power supply ports (24 and 12 V DC). Fagor
Automation recommends using 24 V DC (Phoenix-type connector) to power the monitor.
Consult Fagor Automation before using the 12 V DC option (DC jack connector).
Monitor power: 24 V DC.
Power the monitor with a 24 V DC ±10 % 1.5 A power supply.
Panel PC power: 24 V DC.
Power the panel PC with a 24 V DC ±20% 1.5 A power supply.
Power supply cable characteristics.
Use generic 12 AWG (4 mm²) to 18 AWG (1 mm²) cable.
Consumption.
Consumption: 55 W (typical), 100 W (max.).
(A) Monitor power: 24 V DC (recommended).
(B) Monitor power: 12 V DC (consult Fagor Automation).
(C) Panel PC power: 24 V DC.
A
C
B
Both monitor power suppliers (24 and 12 V DC) must never be connected at the same time.
Pin Signal. Function.
1 - - -.
2 11 0 V reference signal.
3 +24 V Power supply.
1
Pin Signal. Function.
1 Ground.
2 – 0 V reference signal.
3 + Power supply.
1
