Fagor 8065 M - 4.2.2 Ethernet Network Connection via Switch; Connection Details

Panel PC.
CNC 8065
4.
·76·
(REF: 1801)
PPC-19.

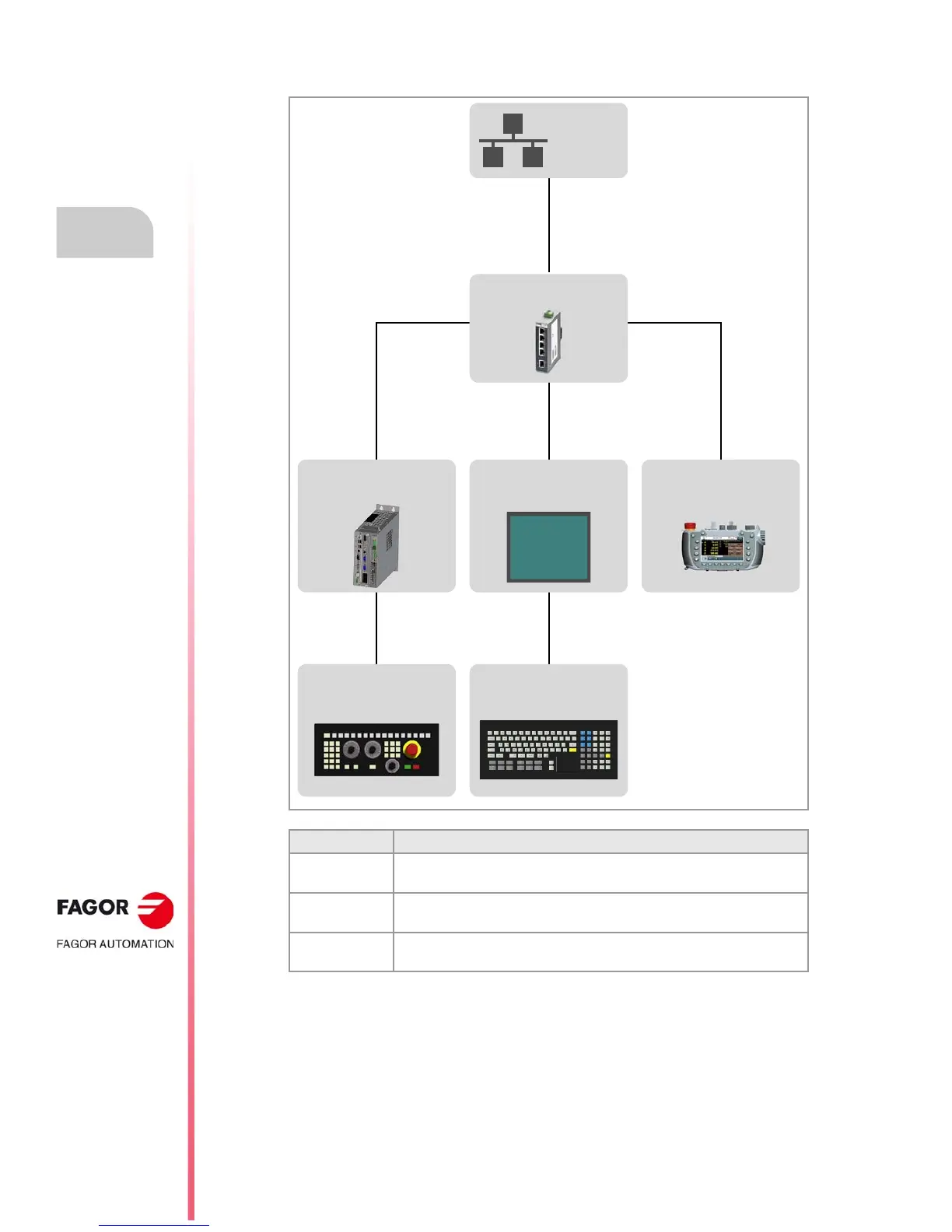

4.2.2 Connecting to an Ethernet network through a switch.
CAN USB 2.0
ETHERNET
COMPANY
NETWORK
PPC-19
ETHERNETETHERNET
SWITCH SFNB 5TX
ETHERNET
HORIZONTAL KEYB 2.0 +
TOUCHPAD
HBH3
HANDHELD TERMINAL
CNC U65
CNC U70
OP PANEL
Connection. Description.
USB 2.0 Connection of a USB keyboard to the PPC-19.
Maximum length; 800 mm (2.62 feet).
Ethernet. Connecting the elements to the switch
Maximum length; 100 m (328 feet).
CAN Connection of keyboards and operator panels.
Maximum length of bus; 500 m (1640 ft) for CANopen bus.
