Fagor 8065 M - 3.6.2 Monitor Lower End Connectors; T;S USB Touch Screen Driver; 24 V DC IN Supply Input

Panel PC.
CNC 8065
3.
·55·
(REF: 1801)
PPC-21W.

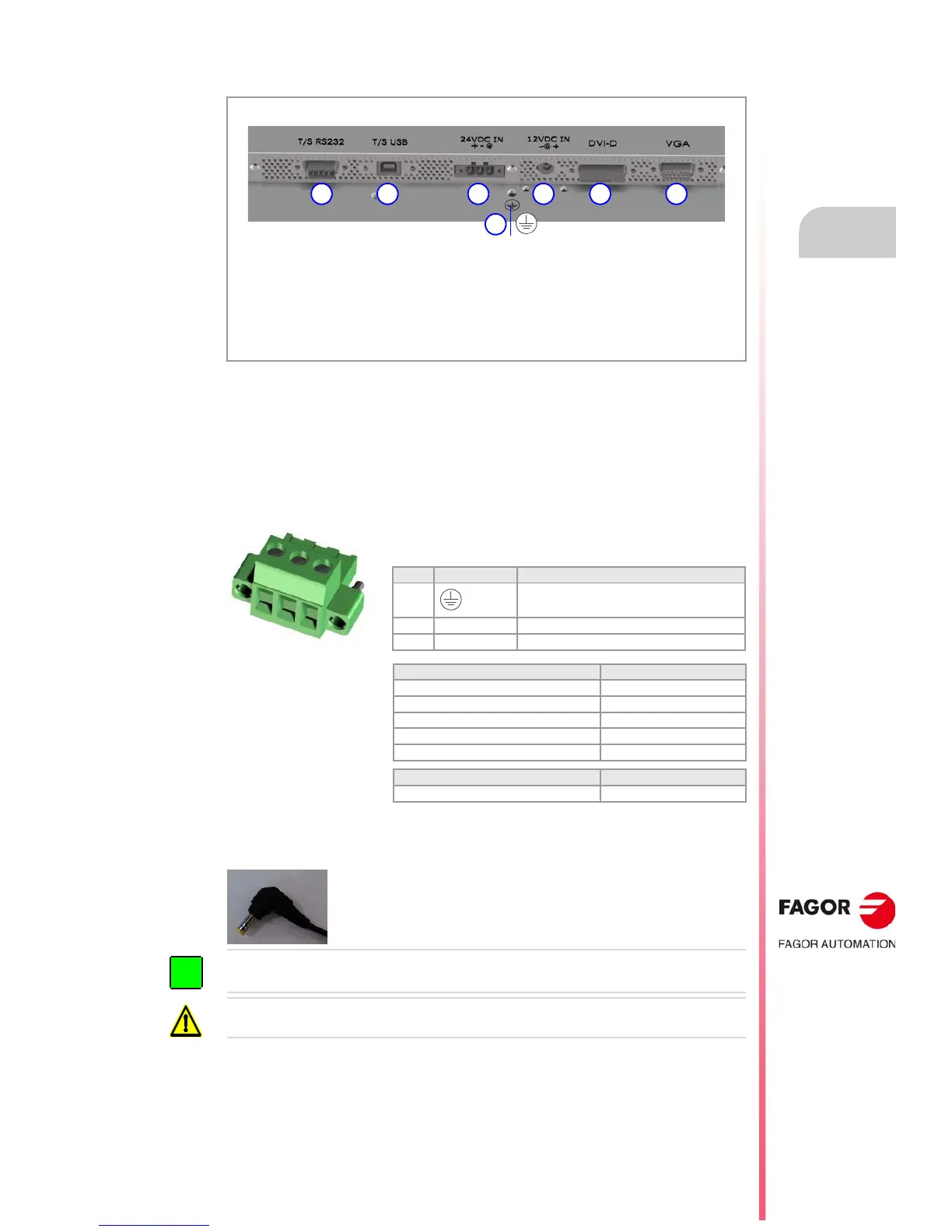

3.6.2 Monitor (lower end connectors).
·T/S USB· Touch screen driver.
Connect the monitor’s T/S USB (touch controller) output to a USB 2.0 port on the panel PC.
Always use the cable supplied by Fagor for the unit.
·24 V DC IN· Supply input (recommended).
Option recommended by Fagor Automation to power the monitor.
·12 V DC IN· Supply input (not recommended).
·VGA· VGA Video input.
Connect the panel PC’s PCVGA output to the monitor’s VGA input. Always use the cable
supplied by Fagor for the unit.
Bottom view.
(A) T/S RS-232 Non-functional on the PPC-21W.
(B) T/S USB Touch screen driver.
(C) 24 V DC IN 24 V DC supply input (recommended).
(D) 12 V DC IN 12 V DC supply input (not recommended).
(E) DVI-D Non-functional on the PPC-21W.
(F) VGA VGA video signal input.
(G) Ground connection.
Ground connection.
A B C D E F
G
Connector data.
Number of poles. 3.
Pitch. 5.08 mm.
Connection technique. Screw connection.
Minimum/maximum section. 0.2 / 4 mm².
Rated current In. 16 A.
Cable data.
Length to be stripped. 7 mm.
See "3.5 Voltage supply for the module." on page 53.
Plug-in part 3-pole Phoenix-type connector (5.08 mm pitch).
Rated current; 16 A.
Pin Signal. Function.
1 - - -.
2 11 0 V reference signal.
3 +24 V Power supply.
1
DC jack connector for the external current adapter. See
"3.5 Voltage supply for the module." on page 53.
Fagor Automation recommends 24 V DC power for the monitor. Consult Fagor Automation before using
the 12 V DC option.
Both monitor power suppliers (24 and 12 V DC) must never be connected at the same time.
i
