PPC-19.

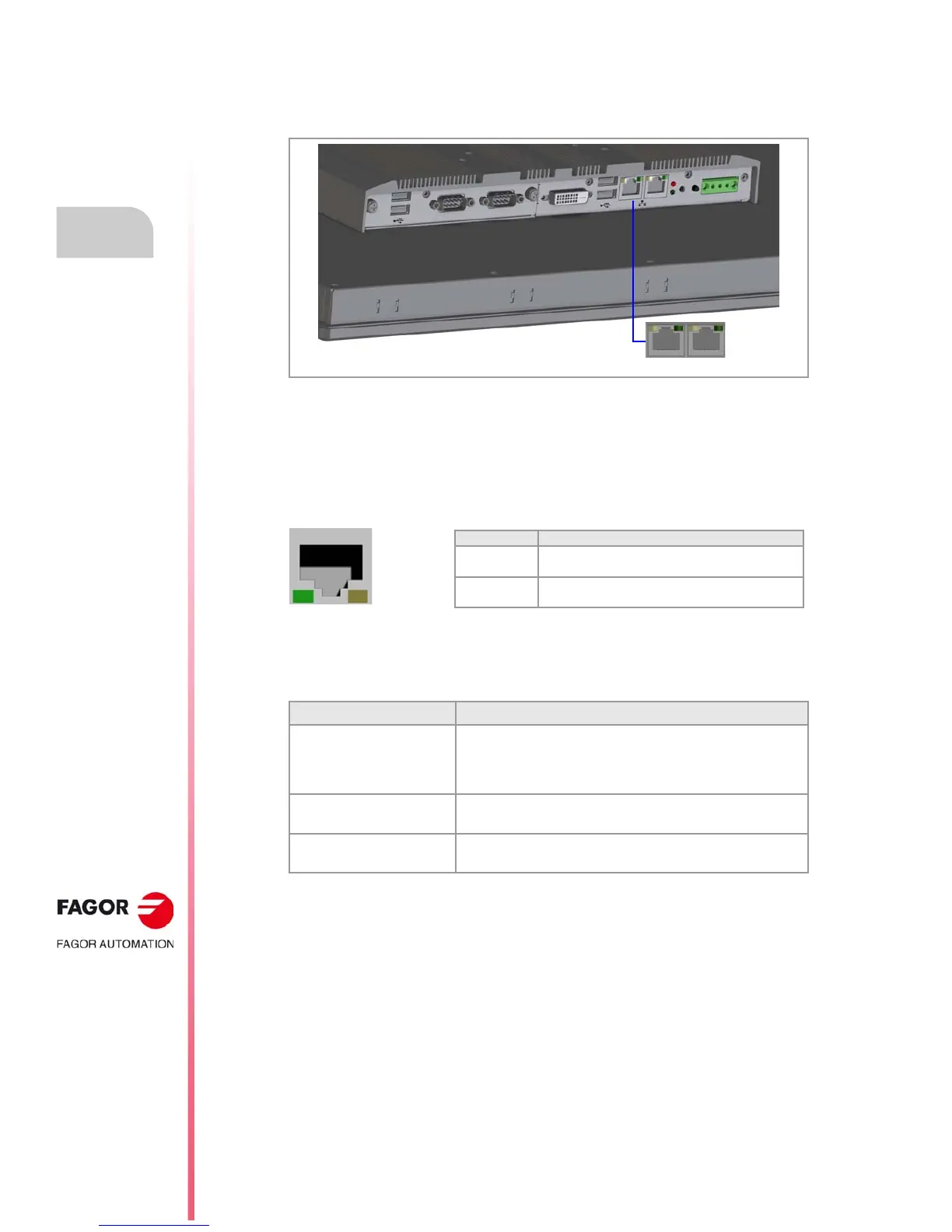

4.7 Connection.
4.7.1 Ethernet (Fast Ethernet / Gigabit Ethernet).
The PPC-19 can be configured as an additional node on a local network or it may be
connected point-to-point to the CNC.
Connector.
All ports have two LEDs to indicate whether the PPC-19 is connected to the network (green
LED) and if data are being transmitted (yellow LED).
Cable characteristics.
Use a specific Ethernet cable with the following characteristics.
Transmission speed.
The PPC-19 permits a connection at 10 MHz, 100 MHz or 1000 MHz; by default at 10 Mhz.
Use a cable having the recommended characteristics to ensure a transmission at 100 MHz
or 1000 MHz. Even so, since the transmission speed depends on the configuration of the
network (number of nodes, their configuration, etc.) a 100 MHz or 1000 MHz transmission
might not be stable. In these cases, we recommend to lower the transmission speed.
Element connection.
In order to ensure proper performance, the connection cable must be inserted all the way
into the connectors so they're latched. This ensures that the cable is properly latched and
does not come off due to vibration.
Characteristic. Description.
Type. Standard shielded ethernet 10Base-T cable (10/100 MHz
connection) or 1000Base-T (1000 MHz connection).
Use a crossed cable to connect for the point to point connection to
the CNC.
Impedance. 10/100 MHz connection Cat.5 (100 - 120 ) or greater.
1000 MHz connection Cat.5e (100 - 120 ) or greater.
Maximum length. 100 meters (328 ft).
LED. Meaning.
A (green) Connection LED. The LED turns on when the
PPC-19 is connected to the data network.
B (yellow) Activity LED. The LED blinks when data is being
received/transferred.
AB
