Panel PC.
CNC 8065
2.
·34·
(REF: 1801)
MONITOR-21 MULTITOUCH.

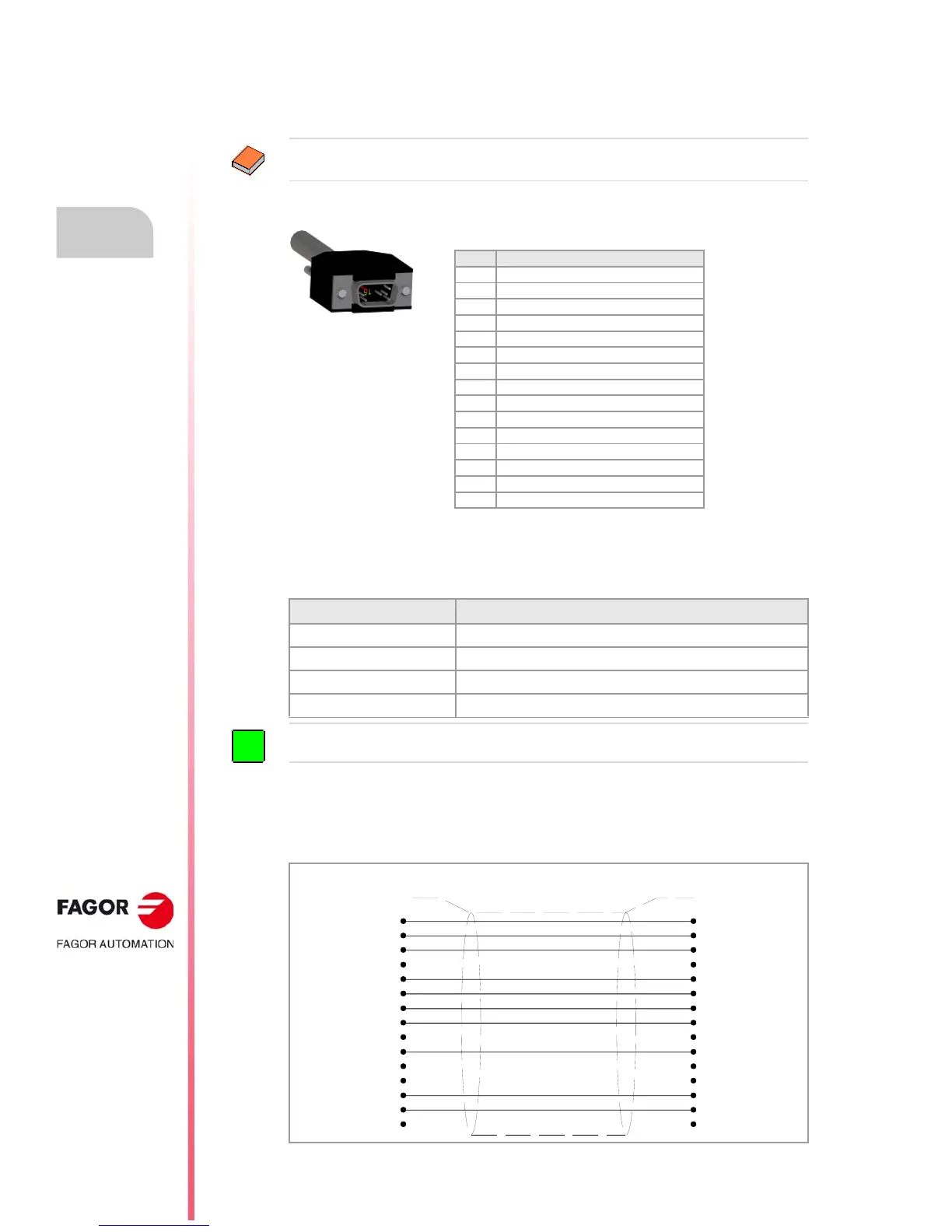

2.8 Cable characteristics.
2.8.1 VGA video signal.
Connector pinout.
Cable characteristics.
Use specific VGA cable.
Node connection.
Use the VGA output of the central unit. The connection is parallel, 1 with 1, 2 with 2, etc. The
cable shield must be connected to the connector at both ends.
Fagor Automation supplies the necessary cable for the VGA connection. The cable is valid for static
installations such as cable carrying chains. For further information, refer to the Ordering Handbook.
·VGA· cable.
Type. Shielded.
Flexibility. Normal.
Impedance. 75.
Maximum length. 5 m (16.40 ft).
