Fagor 8065 M - 3.2.3 Ethernet Network Connection via Switch; Connection Details

Panel PC.
CNC 8065
3.
·47·
(REF: 1801)
PPC-21W.

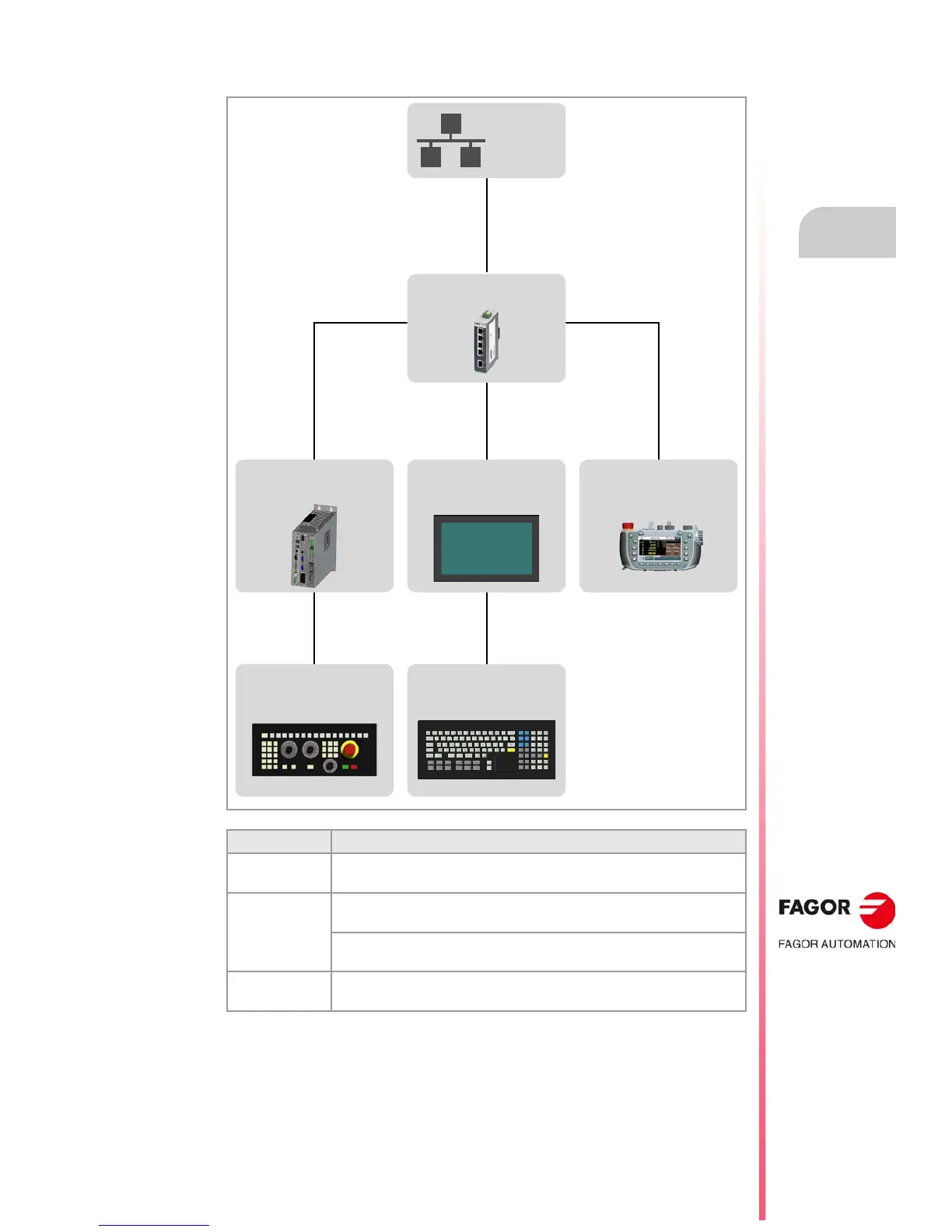

3.2.3 Connecting to an Ethernet network through a switch.
CAN USB 2.0
ETHERNET
COMPANY
NETWORK
PPC-21W
ETHERNETETHERNET
SWITCH SFNB 5TX
ETHERNET
HORIZONTAL KEYB 2.0 +
TOUCHPAD
HBH3
HANDHELD TERMINAL
CNC U65
CNC U70
OP PANEL
Connection. Description.
USB 2.0 Connection of a USB keyboard to the PPC-21W. Use the keyboard cable.
Maximum cable length: 800 mm (2.62 ft).
Ethernet. Connecting the elements to the switch
Maximum cable length: 100 m (328 ft).
Connecting the HBH3 to the PPC-21W.
CAN Connection of keyboards and operator panels.
Maximum length of bus; 500 m (1640 ft) for CANopen bus.
