Fagor 8065 M - 3.6.3 Panel PC Lower End Connectors; USB 2.0; USB 3.0 Ports; HDMI and VGA Output Ports

Panel PC.
CNC 8065
3.
·56·
(REF: 1801)
PPC-21W.

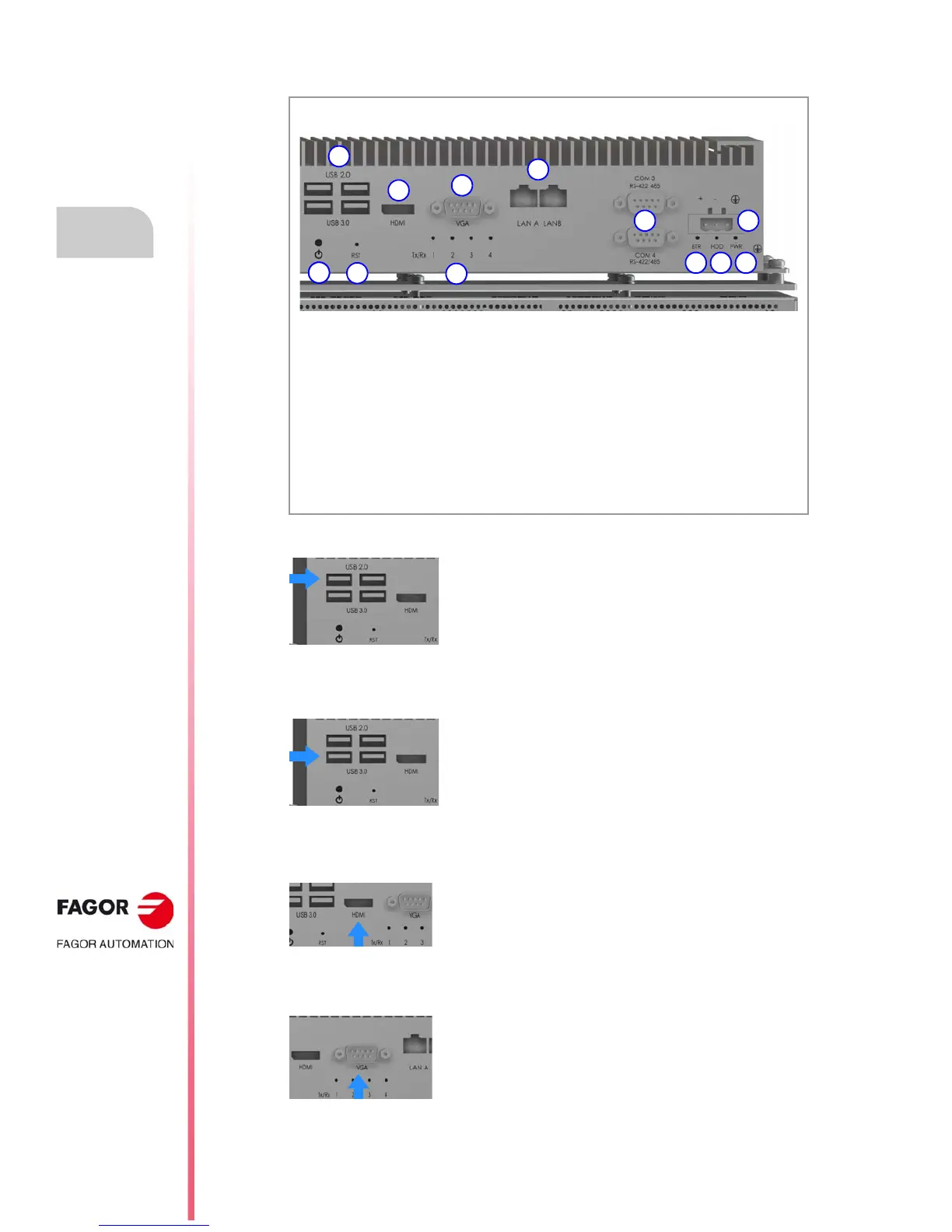

3.6.3 Panel PC (lower end connectors).
·USB 2.0· 2 USB 2.0 Type-A ports.
·USB 3.0· 2 USB 3.0 Type-A ports.
·HDMI · HDMI output to monitor.
·VGA· VGA video output to monitor.
Bottom view.
(A) USB 2.0 / USB 3.0 2 USB 2.0 Type-A ports. 2 USB 3.0 Type-A ports.
(B) HDMI HDMI connection to monitor.
(C) VGA VGA connection to monitor.
(D) LAN A / LAN B Ethernet.
(E) COM3 / COM4 RS-422/485 serial line.
(F) 24 V DC electric power supply input.
(G) Power button.
(H) RST Reset button.
(I) Tx Rx 1 2 3 4 Transmission and reception LEDs.
(J) BTR Battery status LED.
(K) HDD Hard drive activity LED.
(L) PWR Power status LED.
A
H
I
G
B
C
D
E F
G
J K L
2 USB 2.0 Type-A ports, Plug & Play compatible. The USB
interface is compliant with USB EHCI specification, rev. 2.0.
Connect the monitor’s T/S USB (touch controller) output to one
of these inputs. Always use the cable supplied by Fagor for the
unit.
2 USB 3.0 Type-A ports, Plug & Play compatible. The USB
interface is compliant with USB EHCI specification, rev 2.0.
HDMI 1.4a output, supporting 3200 × 2000 video at 60 Hz and
24 bpp.
VGA video 1.4a output, supporting 1920 × 1200 video at 60 Hz
and 24 bpp.
Connect the panel PC’s PCVGA output to the monitor’s VGA
input. Always use the cable supplied by Fagor for the unit.
