Fagor 8065 M - Monitor Connector Details; VGA Video Input; 12 V DC IN Supply Input (Not Recommended)

Panel PC.
CNC 8065
2.
·33·
(REF: 1801)

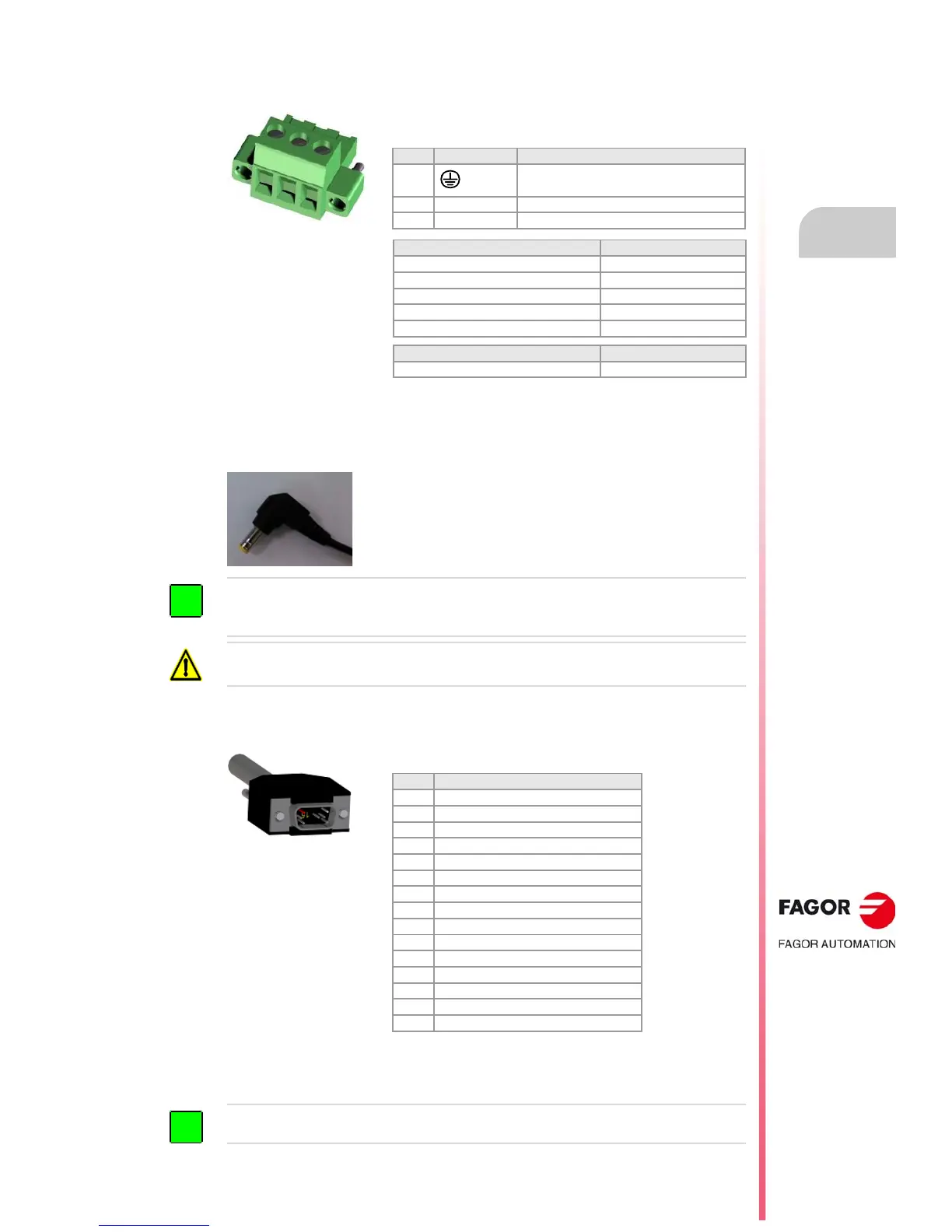

MONITOR-21 MULTITOUCH.
·24 V DC IN· Supply input (recommended).
Option recommended by Fagor Automation to power the monitor.
·12 V DC IN· Supply input (not recommended).
·VGA· Video input.
·DVI-D· Video input.
Connector data.
Number of poles. 3.
Pitch. 5.08 mm.
Connection technique. Screw connection.
Minimum/maximum section. 0.2 / 4 mm².
Rated current In. 16 A.
Cable data.
Length to be stripped. 7 mm.
See "2.5 Voltage supply for the module." on page 30.
Plug-in part 3-pole Phoenix-type connector (5.08 mm pitch).
Rated current; 16 A.
Pin Signal. Function.
1 - - -.
2 11 0 V reference signal.
3 +24 V Power supply.
1
DC jack connector for the external current adapter. See
"2.5 Voltage supply for the module." on page 30.
Power supply.
Fagor Automation recommends 24 V DC power for the monitor. Consult Fagor Automation before using
the 12 V DC option.
Power supply.
Never connect both power systems at the same time.
i
Plug-in part 15-pin female SUB-D HD type connector.
Pin. Signal.
1MAINS
2 GREEN
3BLUE
4- - -
511
6 GND_RED
7 GND_GREEN
8 GND_BLUE
9- - -
10 GND_SYNC
11 - - -
12 - - -
13 HSYNC
14 VSYNC
15 - - -
1 ... 5
11 ... 15
Consult Fagor Automation before using the DVI-D video input.
i
