Fagor 8065 M - Page 52

Panel PC.
CNC 8065
3.
·52·
(REF: 1801)
PPC-21W.

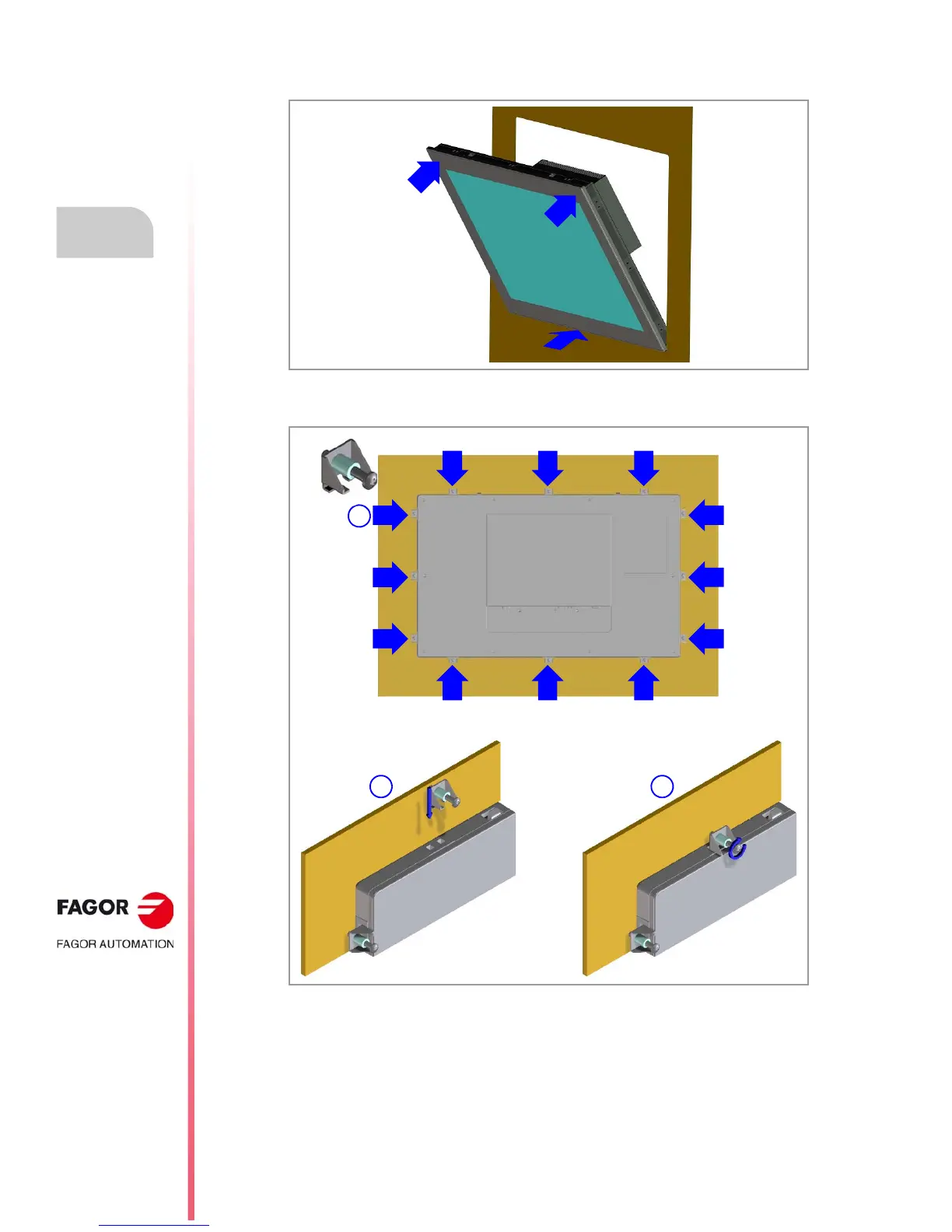

3 Rest the monitor inside the enclosure on the lower stop screws and push the top part
until the pressure hooks support the monitor.
4 Fasten the PPC-21W at the rear, using all the attachment fixtures (D).
D
1 2
0.7 Nm
