Panel PC.
CNC 8065
3.
·50·
(REF: 1801)
PPC-21W.

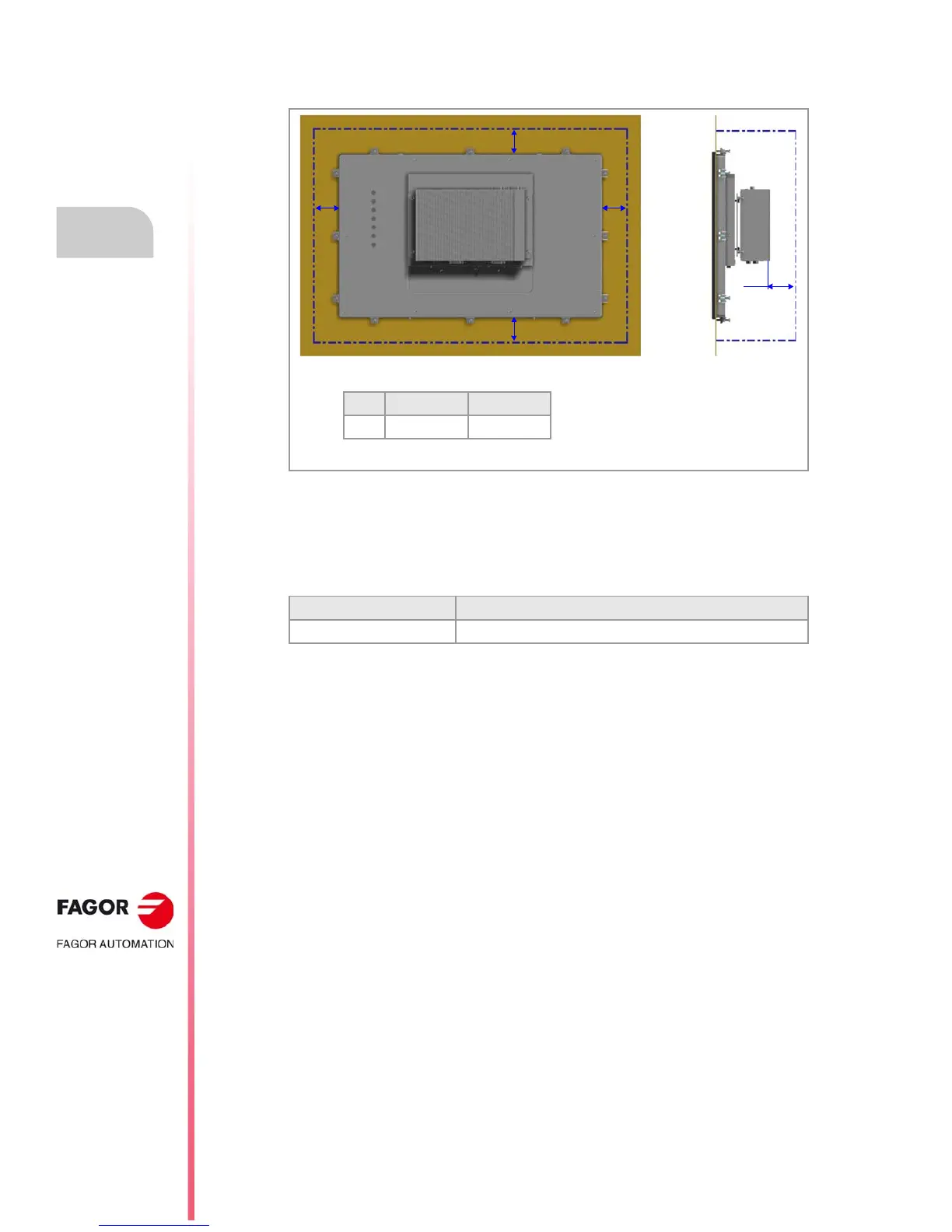

Recommended minimum clearances between the PPC-21W and
the enclosure walls.
Dissipated power inside the enclosure.
To calculate the total surface area the enclosure must have to dissipate the heat inside, we
must consider the dissipated power for all the elements that generate heat inside the
enclosure. For example, the power supply, fan, etc.
Hardware. Dissipated power.
PPC-21W 55 W (typical), 100 W (max.).
(*) Minimum recommended distance.
mm inch
D (*) > 50 > 1.97
D
D
D
D
D
