Remote modules
CNC 8060
CNC 8065
5.
(REF: 1402)
RIOW REMOTE MODULES. (CANOPEN PROTOCOL).

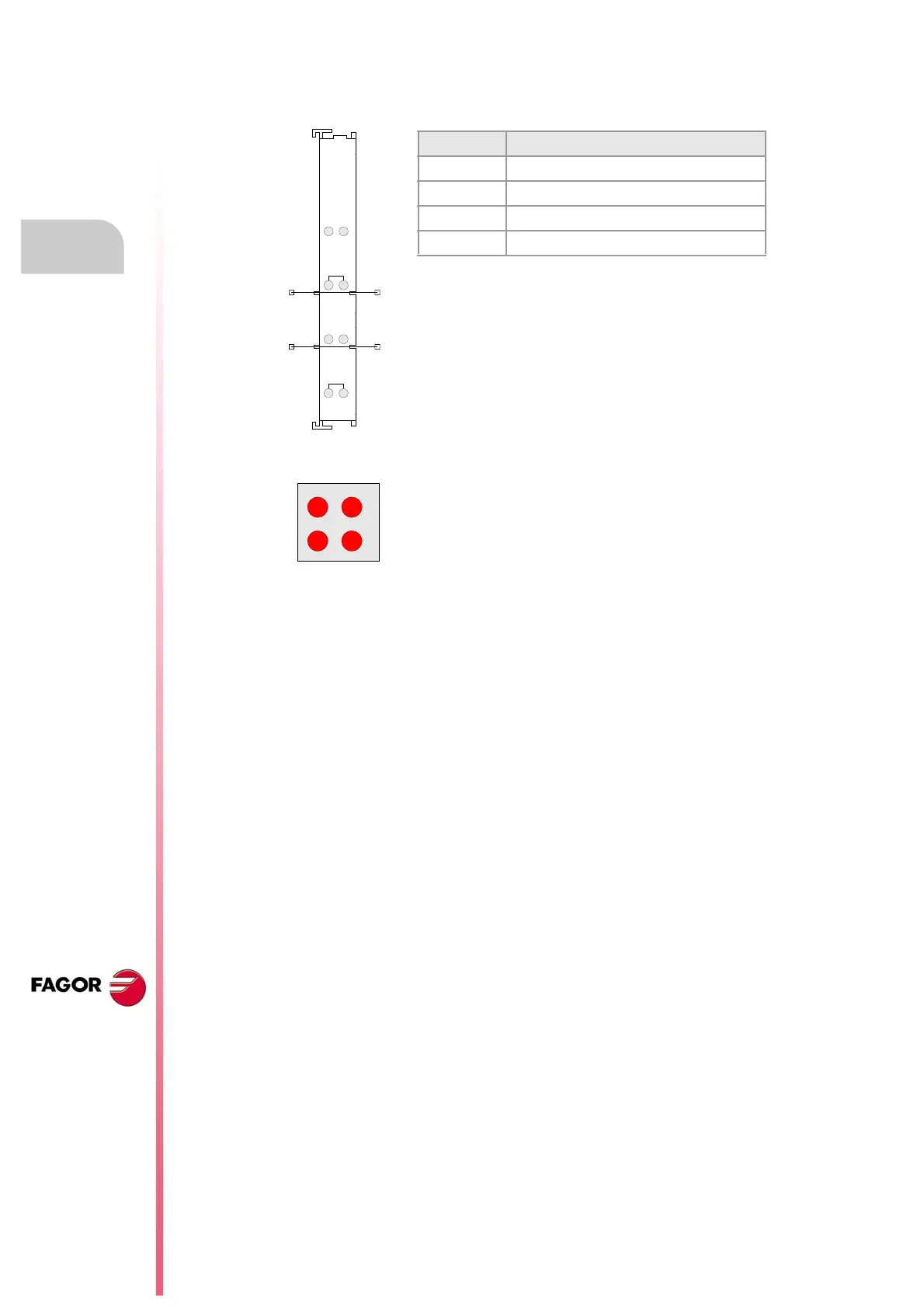

5.10.1 Elements (connectors).
Analog inputs (4 inputs).
Status indicator LED's.
Red LED's. All analog inputs have a status indicating LED that
turns on when there is an over-voltage or an under-voltage.
AI1
GND
AI3
GND
AI2
GND
AI4
GND
24 V
0 V
Signal Function
AI1 - AI4 Analog inputs.
GND Ground connection.
0 V Power supply.
24 V Power supply.
Connectors ·2· and ·6· are joined together internally.
Connectors ·4· and ·8· are joined together internally.
C
A
D
B
AI1
AI3
AI2
AI4
