Fagor CNC 8065elite T User Manual

Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
3.
RIO5 REMOTE MODULES. (CANOPEN PROTOCOL).
Power supply.
ꞏ36ꞏ
REF. 2107

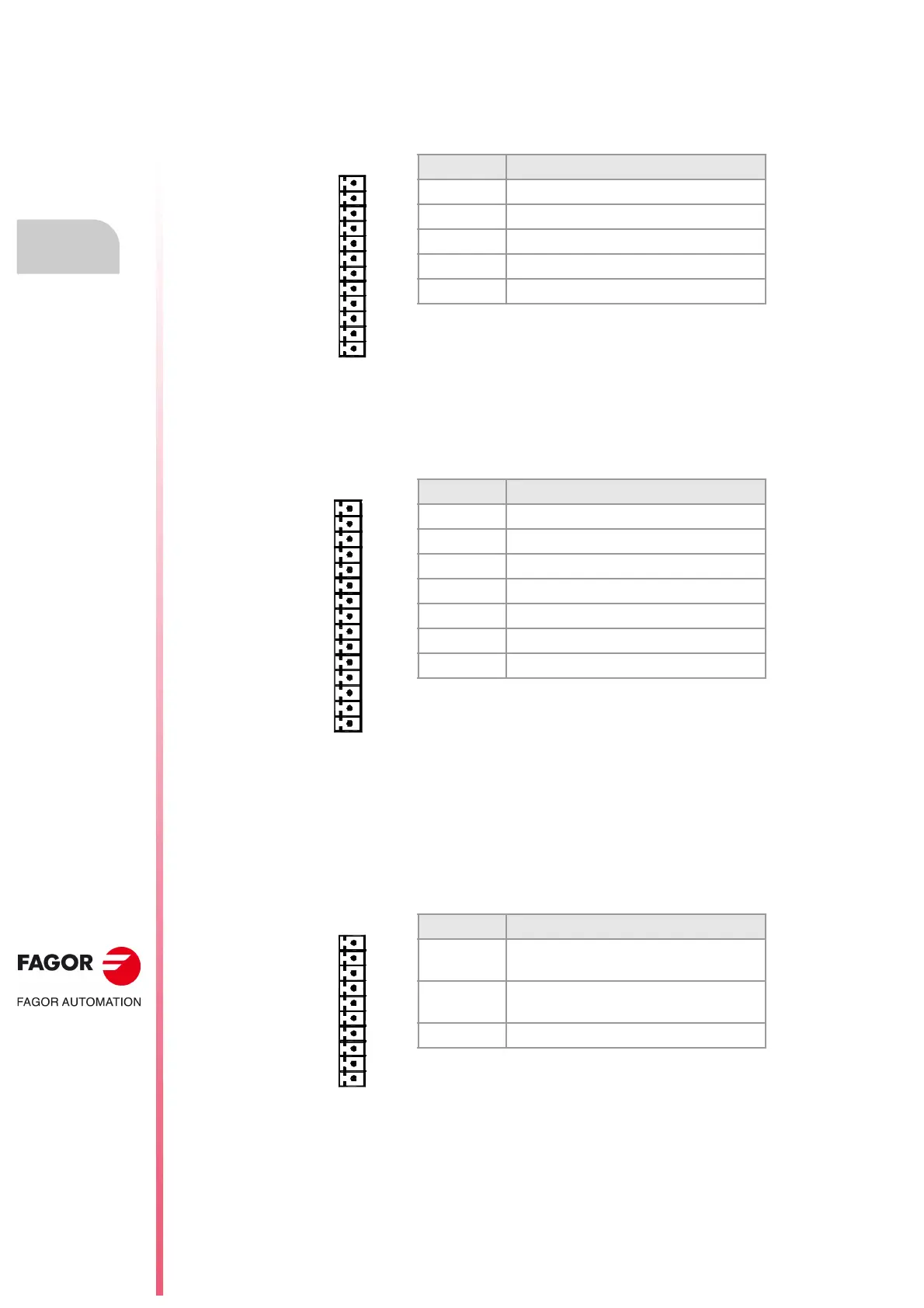

Connectors for the analog inputs and outputs.
Connector ꞏX4ꞏ. General purpose analog outputs (4 outputs).
12-pin male Phoenix minicombicon contact (3.5 mm pitch).
Each analog output has three pins (O+, O-, SH). Use shielded cables connecting their
meshes to the corresponding shield pin.
Connector ꞏX6ꞏ. Differential analog inputs (4 inputs).
15-pin male Phoenix minicombicon contact (3.5 mm pitch).
Each analog input has three pins (I+, I-, SH). Use shielded cables connecting their meshes
to the corresponding shield pin.
Connectors for the temperature sensors PT100.
Connector ꞏX5ꞏ. Inputs for temperature sensors PT100 (2 inputs).
10-pin male Phoenix minicombicon contact (3.5 mm pitch).
Signal. Function.
O1+ O1- Analog outputs.
O2+ O2- Analog outputs.
O3+ O3- Analog outputs.
O4+ O4- Analog outputs.
SH Shield connection.
SH
O1+
X4
O1-
SH
O2+
O2-
SH
O3+
O3-
SH
O4+
O4-
+12
I1+
I1-
SH
GN D
X6
I2+
I2-
SH
I3+
I3-
I4+
I4-
-12
SH
SH
Signal. Function.
I1+ I1- Analog inputs.
I2+ I2- Analog inputs.
I3+ I3- Analog inputs.
I4+ I4- Analog inputs.
SH Shield connection.
+12 -12 12 V output.
GND 0 V reference signal.
Signal. Function.
R1+ R1-
RL1 RF1
Signals of the PT100 sensor.
R2+ R2-
RL2 RF2
Signals of the PT100 sensor.
SH Shield connection.
X5
R1+
RL1
SH
RF2
R1-
RF1
SH
RL2
R2+
R2-
