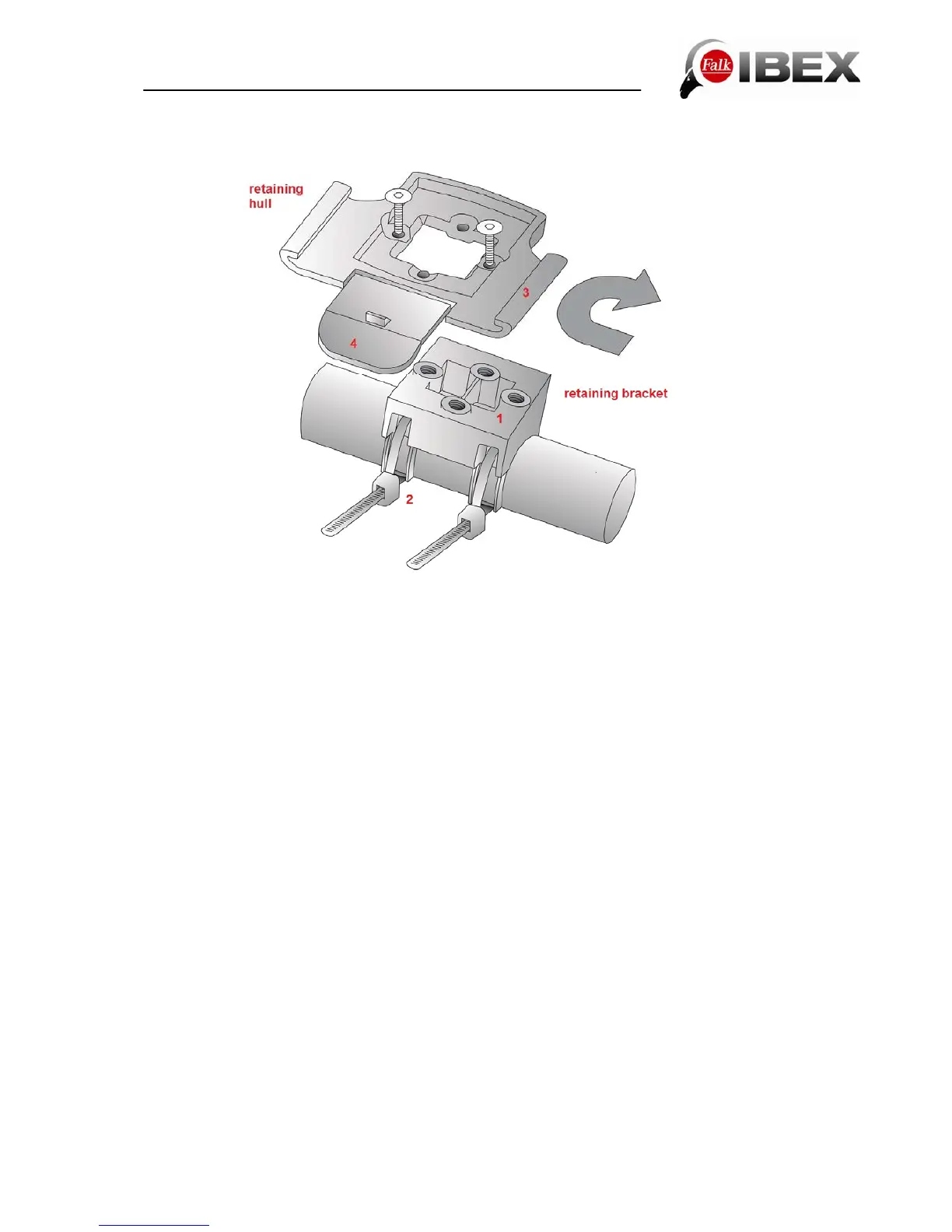

Retaining bracket
To fit the retaining bracket on the bicycle, proceed as follows:
1. Set the retaining bracket on the handlebar or stem.
2. Pull the cable ties through the gaps. Make sure they fit tightly.
3. Fit the screws through the retaining hull and screw them into the bracket. To fit it on the
stem, you can rotate the retaining hull by 90 degrees. To do this, undo the screws, rotate the
retaining hull by 90 degrees and then tighten the screws again.
Caution: Please make sure the cable ties are fastened tightly to the handlebar, so that the
retaining bracket doesn’t move when you are on uneven terrain. The bracket is supplied with
a “tire tread” on the inside to ensure that it is not moving.
Falk IBEX User Manual 9
