Aufbau

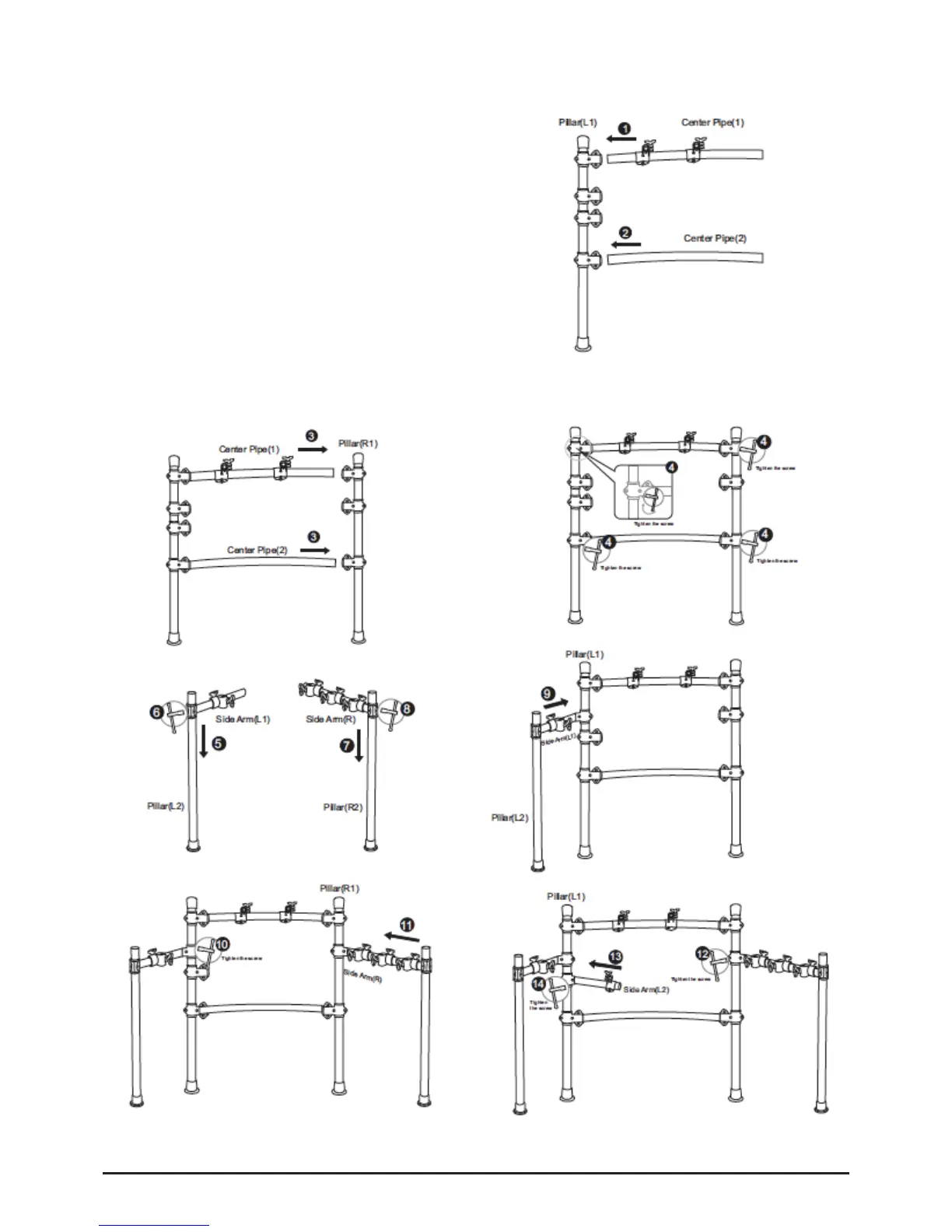

Structure of the rack
1. Attach the center bar (1) to the bar clamp (L1).
2. Attach the center bar (1) to the bar clamp (R1).
3. Befestigen Sie die Center Stange (2) an den weiteren Klemmen.
4. Use the tuning key to fix the screws to the clamps.
5. Attach the side arm (L1) to the clamp of rod (L1).
6. Tighten the screws on the clamp.
7. Attach the rod (L2) to the clamp of the side arm (L1).
8. Tighten the screws on the clamp.
9. Attach the side arm (R) to the rod (R1).
10. Attach the rod (R2) to the clamp of the side arm (R).
11. Tighten the screws on the clamp.
12. Attach the side arm (L2) to the rod clamp (L1).
13. Tighten the screws on the clamp.
