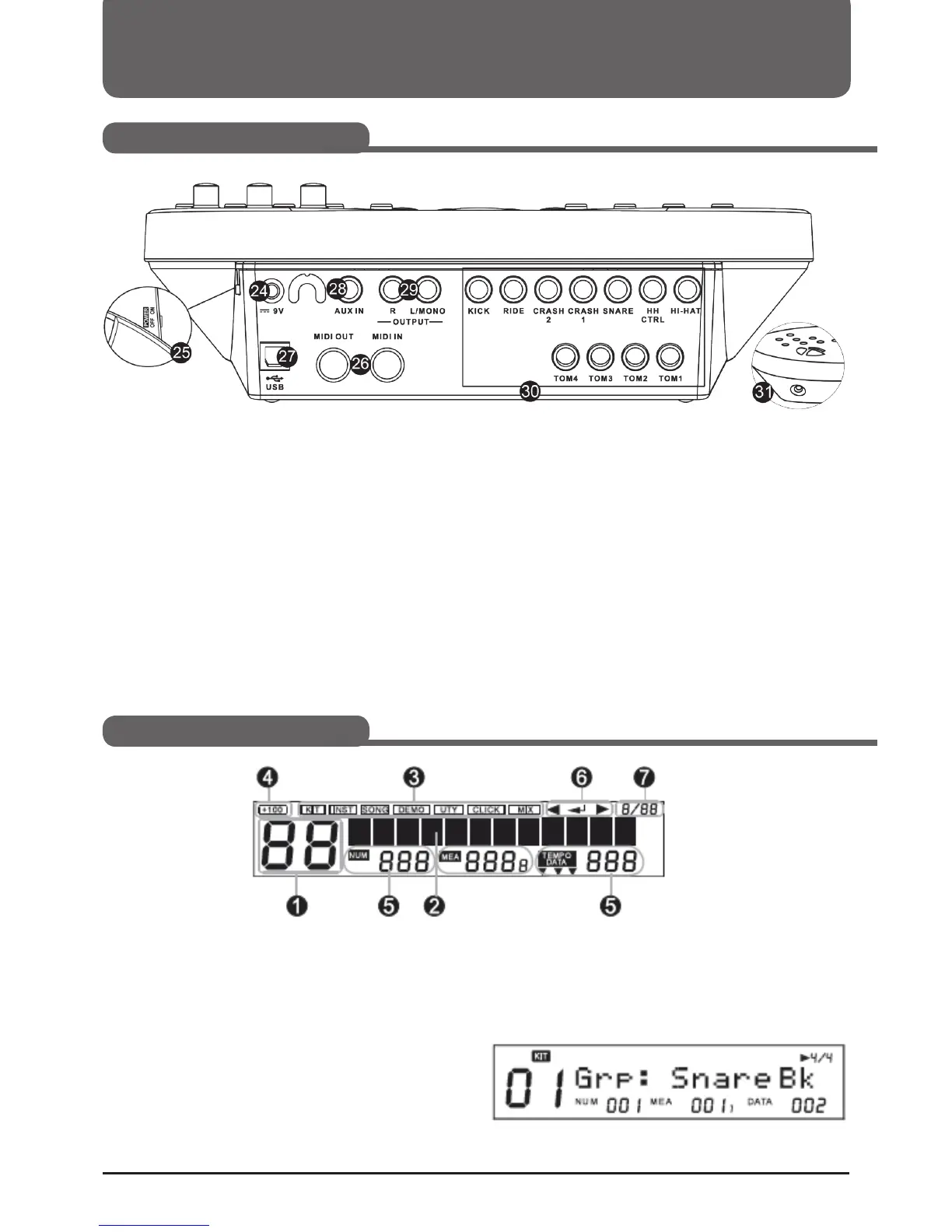

24. DC input
Connection for the DC 9V power adaptor.
25. Power switch
This switch turns power on and off.
26. MIDI In and MIDI Out
These ports allow communication with other products equip-
ped with a MIDI interface. Please see the MIDI section of the
advanced manual for details.
27. USB Port
This port is used to connect to a computer or other USB host
devices. (MIDI In/Out via USB).
1. Kit Display
2. Main Display
Display the current menu information.
3. Mode Icon
The top line of the LCD displays current mode icon.
(“KIT” icon is always lightened)
28. Aux In
This stereo input jack is for an external sound source such as
an MP3 or Audio player.
29. Line Out
Stereo output connection to an audio system or drum
amplifier.
30. Pad Line In
Input connections for Kick, Snare, Tom, Cymbal pads and Hi-
Hat control pedal.
31. Phones jack
This stereo jack is used to connect headphones.
4. Kit Index
5. Song Number, Measure, beat, Tempo
6. These icons indicate that the [PAGE-] /
[SAVE/ ENTER] / [PAGE+] is valid.
7. The current time signature.
Panel & Display Description
Rear Panel
Display
