1. General information
USE AND MAINTENANCE MANUAL CHAPTER 1
GENERAL INFORMATIONXEF 250 - Rev01 / 2020
28
D
C
B
A
1.11 ELECTRICAL SYSTEM DIAGRAM

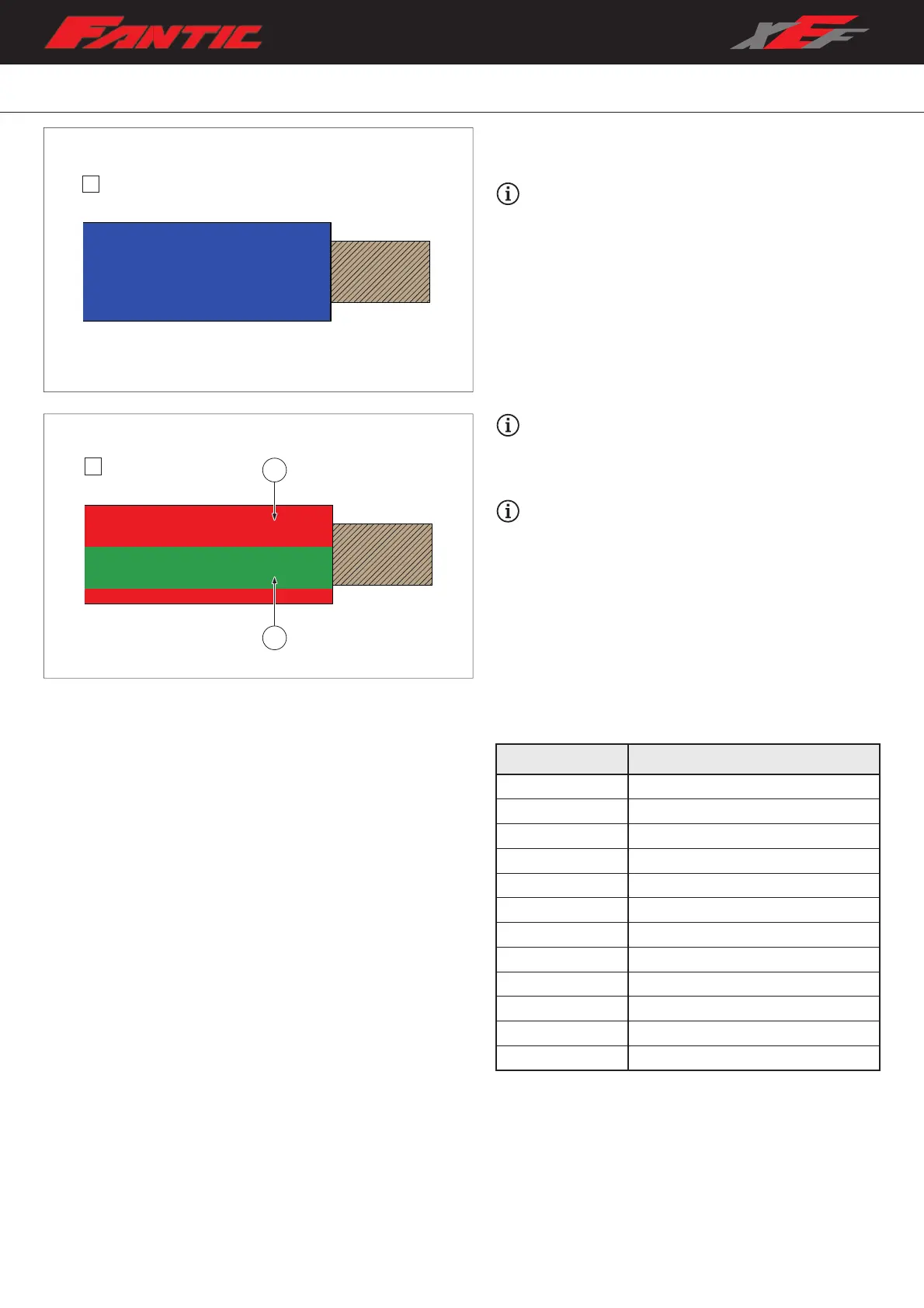

Cables colour coding
The colour of a cable can be an “A” colour or two “B”
colours.
The cable which has two colours is identified by the
first colour code (primary “C” or colour of the sheath)
followed by the second colour code (secondary “D”):
the codes are separated by a dash “-”.
Examples:
• case “A” : Blue = L ;
• case “B” : Red (primary) and Green (secondary) =
RV.
The following table shows the codes used in the wiring
diagram to identify the colour of the cable.
Codice Colore dei cavi
A SKY BLUE
B WHITE
C ORANGE
G YELLOW
H GREY
LBLUE
M BROWN
NBLACK
R RED
S PINK
V GREEN
Z PURPLE
