Fantic XEF 250 - Primary Vehicle Controls and Components

2. Use of the vehicle
USE AND MAINTENANCE MANUAL CHAPTER 2
USE OF THE VEHICLEXEF 250 - Rev01 / 2020
41
2
1
1
6
5
4
3
2
N
1
6
5
4
3
2
N
1
1

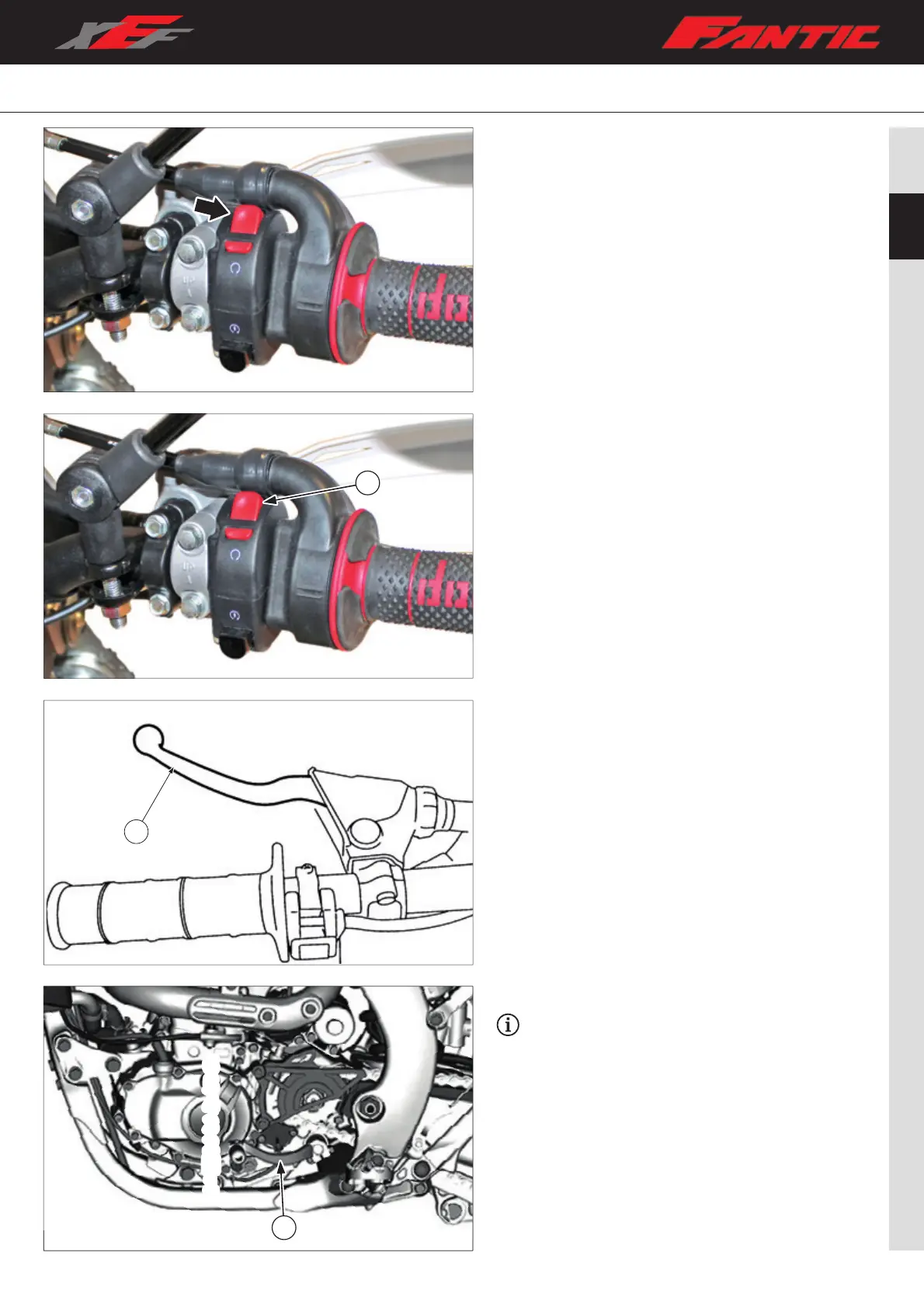

2.6 MAIN COMPONENTS
Engine stop switch
The engine stop switch “1” is located on the right handlebar.
Press the engine stop switch until the engine stops.
2.5 STOP THE ENGINE
With the throttle valve completely closed, press the “ENGINE
STOP” button on the right handlebar.
Shift pedal
The gear ratios of the constant-mesh 6 speed
transmission are ideally spaced.
The gears can be shifted by using the shift pedal “1” on the
left side of the engine.
Clutch lever
The clutch lever “1” is located on the left handlebar; it
disengages or engages the clutch. Pull the clutch lever to the
handlebar to disengage the clutch, and release the lever to
engage the clutch.
The lever should be pulled rapidly and released slowly for
smooth starts.
