3.5 HANDLEBAR ADJUSTMENT

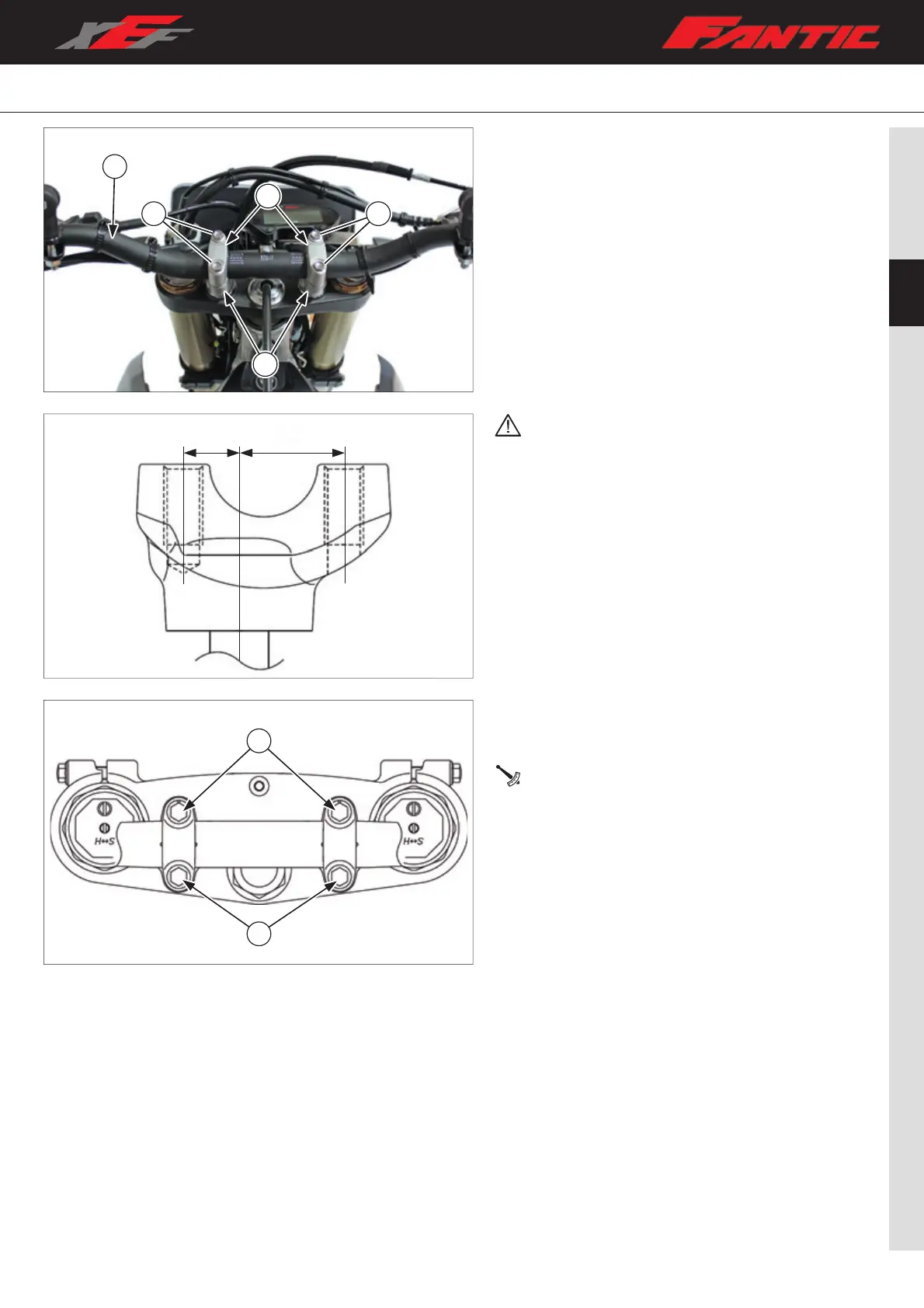

Handlebar installation and adjustment
Install handlebar “1” on lower supports “2”;
Install upper supports “3” and fastening bolts “4”, without
tightening them definitively.
Install the handlebar so that the projection “A” of the
upper handlebar holders is positioned at the mark
on the handlebar as shown.
First tighten the bolts on the front side “5” of the upper
handlebar holder, and then tighten the bolts “6” on the rear
side.
Upper handlebar support bolt:
28 Nm (2.8 m•kg, 20 ft•lb)
