Fantic XEF 250 - Replace the Rear Brake Pads

4. Maintenance
USE AND MAINTENANCE MANUAL CHAPTER 4
MAINTENANCEXEF 250 - Rev01 / 2020
84
5
2
1
2
4
A
B
4

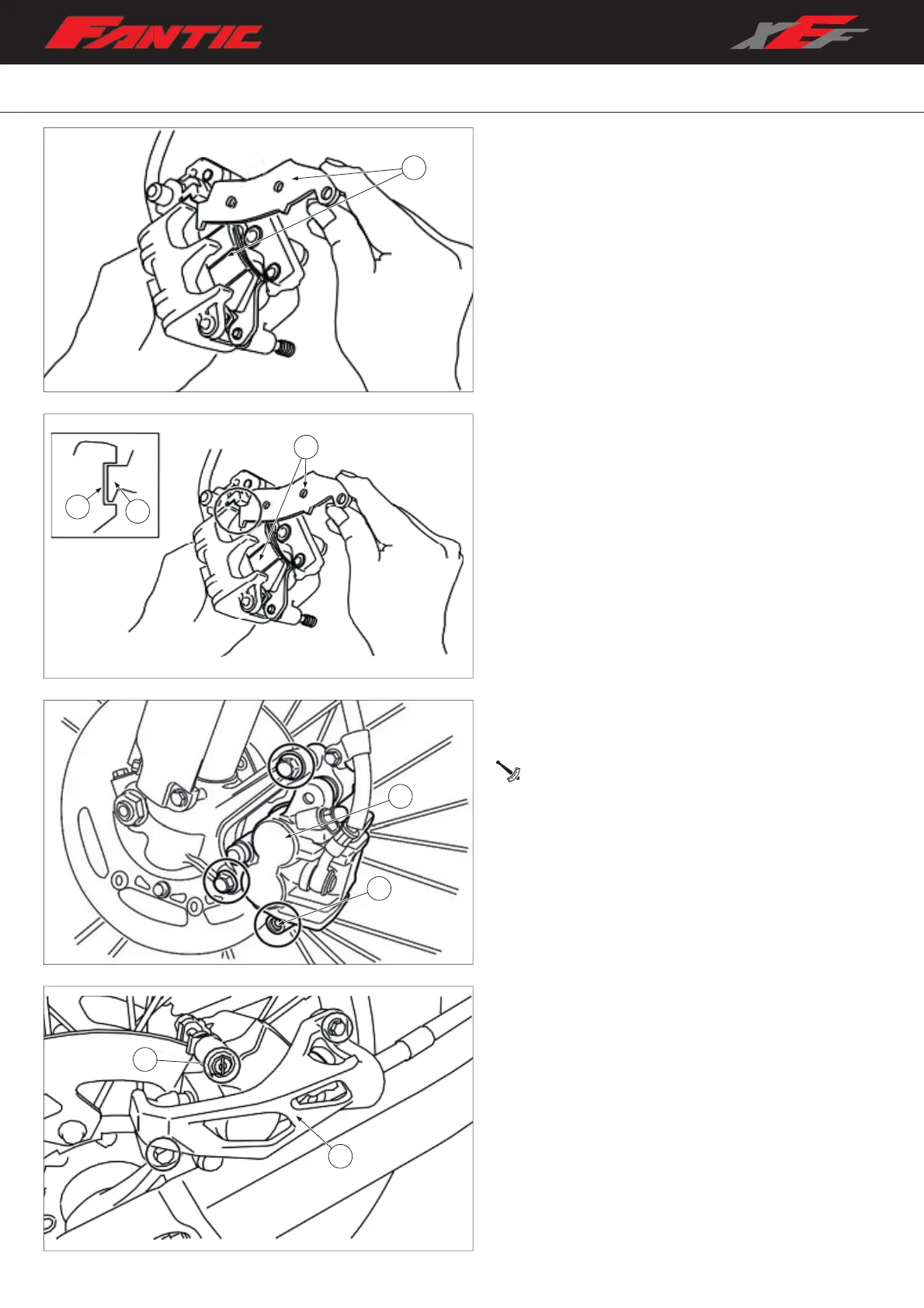

– Install the brake pads “4” with their protrusions “A” in the
recesses of the brake calliper “B”. Temporarily tighten the
pads pin “2”;
– Install the brake calliper “5” and tighten the relevant bolts
to the specified torque. Tighten the pad pin “2” and insert
the relative cap previously removed;
Bolt (brake caliper):
28 Nm (2.8 m•kg, 20 ft•lb)
Replace the rear brake pads
– Remove the protection “1” and the pad pin plug “2”;
– Remove the pad pin and brake pads “4”;
