4. Maintenance
USE AND MAINTENANCE MANUAL CHAPTER 4
MAINTENANCEXEF 250 - Rev01 / 2020
85
4
1
3
3
AB
8
6
7
3
4
5

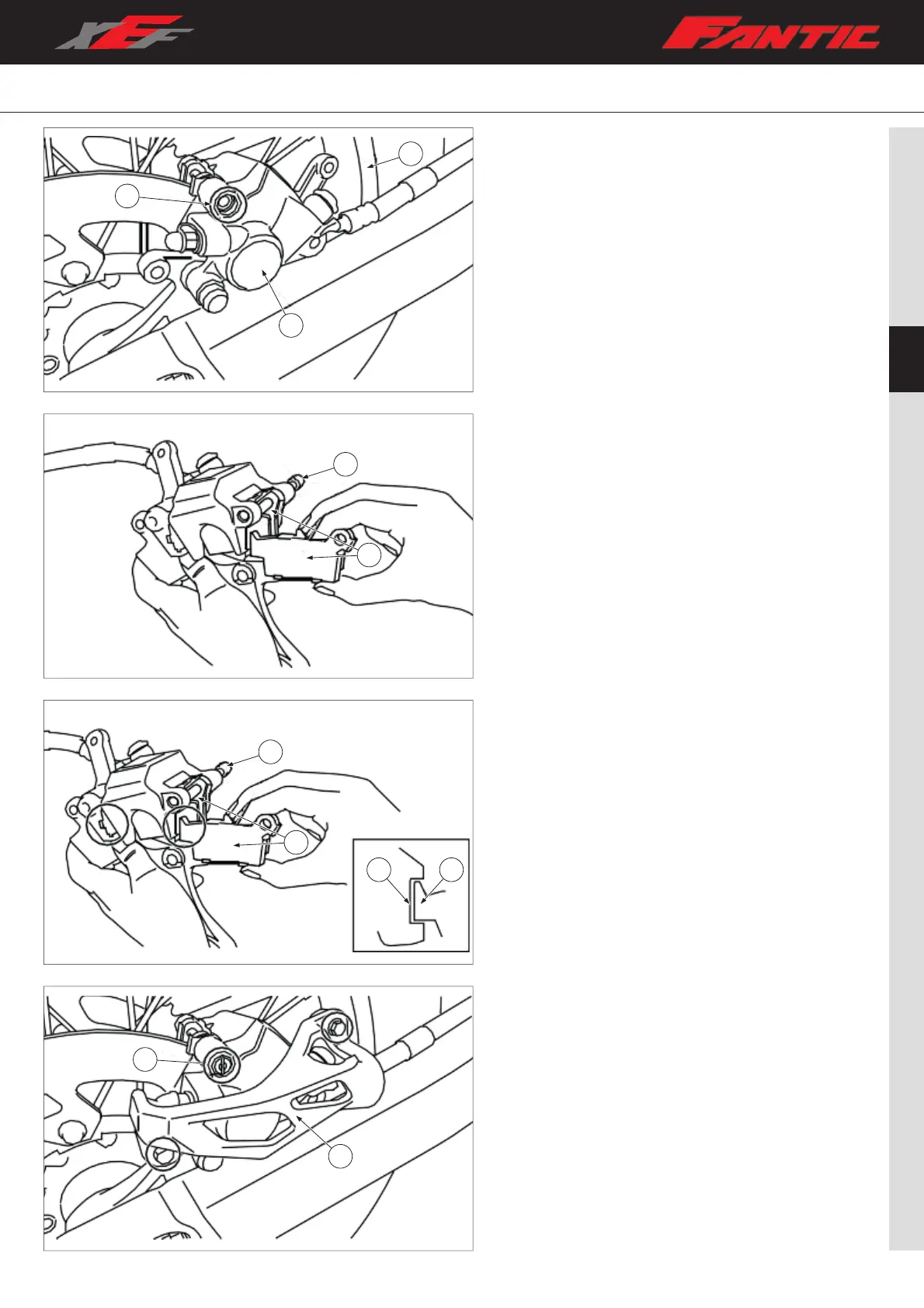

– Loosen the pad pin “3”, remove the rear wheel “4” and the
brake calliper “5 “;
– Remove the pad pin “6” and brake pads “7”;
– Install the brake pads “8” with the relative protrusions
“A” in the recesses “B” of the brake calliper. Temporarily
tighten the pads pin “3”.
– Install the brake caliper “5” and rear wheel “4”. Tighten
the pad pin “3” and install the pad pin plug. Installa the
protector “1”.
