Fayat Group DYNAPAC CA5000 - Maintenance Symbols

Maintenance
4812158701_G.pdf 2019-10-01
BIOLOGICAL
HYDRAULIC FLUID,
PANOLIN
Air temperature -10°C - +35°C
(14°F-95°F)
When it leaves the factory, the
machine may be filled with
biologically degradable fluid.
The same type of fluid must be
used when changing or topping
up.
PANOLIN HLP Synth 46
(www.panolin.com)
BIOLOGICAL
HYDRAULIC FLUID,
PANOLIN
Air temperature -10°C - +35°C
(14°F-95°F)
When it leaves the factory, the
machine may be filled with
biologically degradable fluid.
The same type of fluid must be
used when changing or topping
up.
PANOLIN HLP Synth 46
(www.panolin.com)
DRUM OIL Air temperature -15°C - +40°C
(5°F-104°F)
Dynapac Drum Oil 1000 P/N 4812161887 (5 liters),
P/N 4812161888 (20 liters)
DRUM OIL Air temperature -15°C - +40°C
(5°F-104°F)
Dynapac Drum Oil 1000 P/N 4812161887 (5 liters),
P/N 4812161888 (20 liters)
GREASE Dynapac Roller Grease
(0.4kg)
P/N 4812030096GREASE Dynapac Roller Grease
(0.4kg)
P/N 4812030096
FUEL See engine manual. - -FUEL See engine manual. - -
TRANSMISSION OIL Air temperature -15°C - +40°C
(5°F-104°F)
Dynapac Gear oil 300 P/N 4812161883 (5 liters),
P/N 4812161884 (20 liters)
TRANSMISSION OIL Air temperature -15°C - +40°C
(5°F-104°F)
Dynapac Gear oil 300 P/N 4812161883 (5 liters),
P/N 4812161884 (20 liters)
Air temperature 0°C (32°F) -
above +40°C (104°F)
Shell Spirax S3 AX
85W-140, API GL-5 or
equivalent.
Air temperature 0°C (32°F) -
above +40°C (104°F)
Shell Spirax S3 AX
85W-140, API GL-5 or
equivalent.
COOLANT Anti-freeze protection down to
about -37°C (-34.6°F)
Dynapac coolant 100
(mixed 50/50 with water)
P/N 4812161854 (20 liters)COOLANT Anti-freeze protection down to
about -37°C (-34.6°F)
Dynapac coolant 100
(mixed 50/50 with water)
P/N 4812161854 (20 liters)

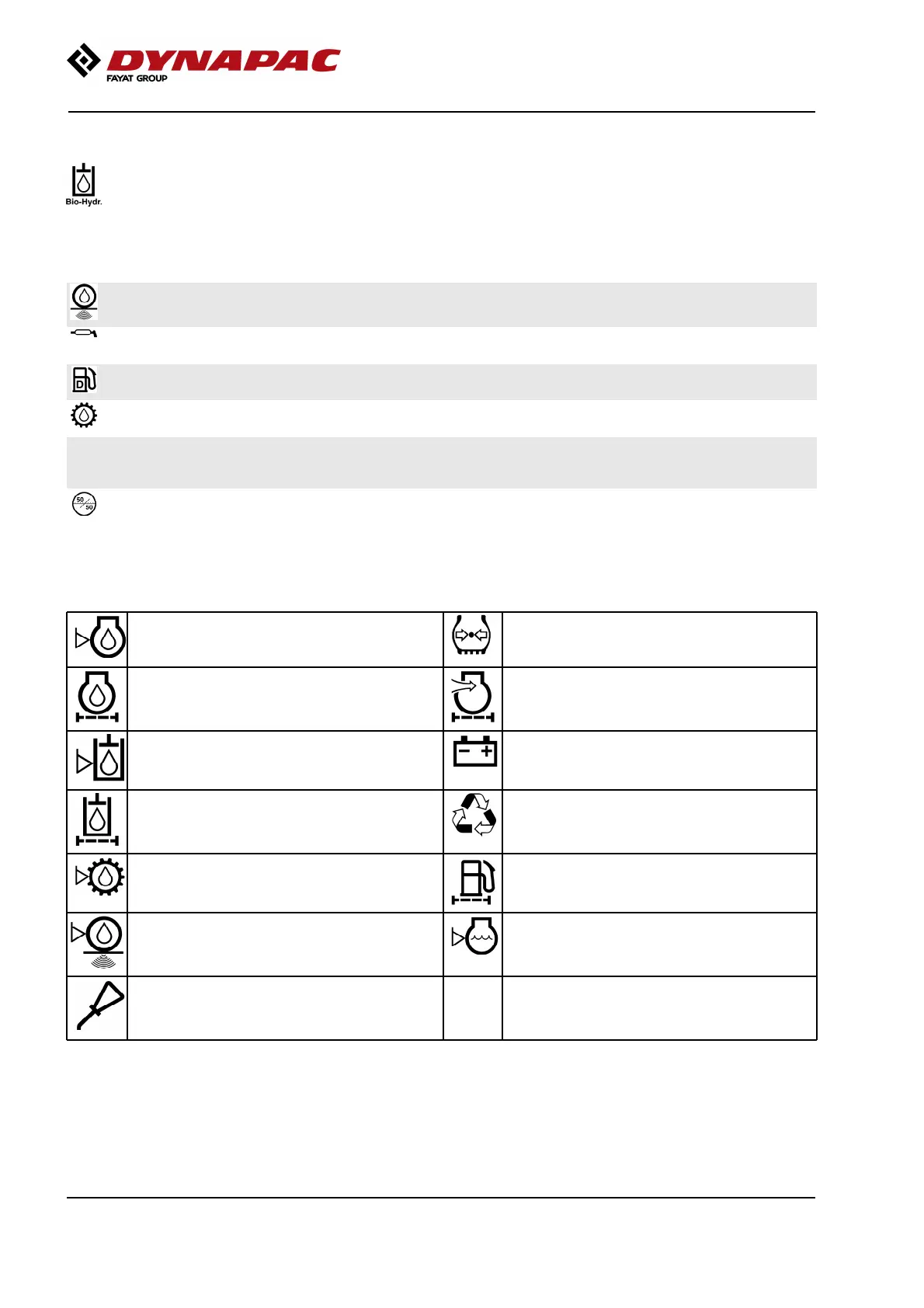

Maintenance symbols
Engine, oil level Tyre pressureEngine, oil level Tyre pressure
Engine, oil filter Air filterEngine, oil filter Air filter
Hydraulic reservoir, level BatteryHydraulic reservoir, level Battery
Hydraulic fluid, filter RecyclingHydraulic fluid, filter Recycling
Transmission, oil level Fuel filterTransmission, oil level Fuel filter
Drum, oil level Coolant, levelDrum, oil level Coolant, level
Oil for lubricationOil for lubrication
96
