Fayat Group DYNAPAC CA5000 - Fuses at Master Switch (Deutz); Fuse Box at Master Switch (Deutz)

Machine description
4812158701_G.pdf 2019-10-01
Fuses at master switch (Deutz)

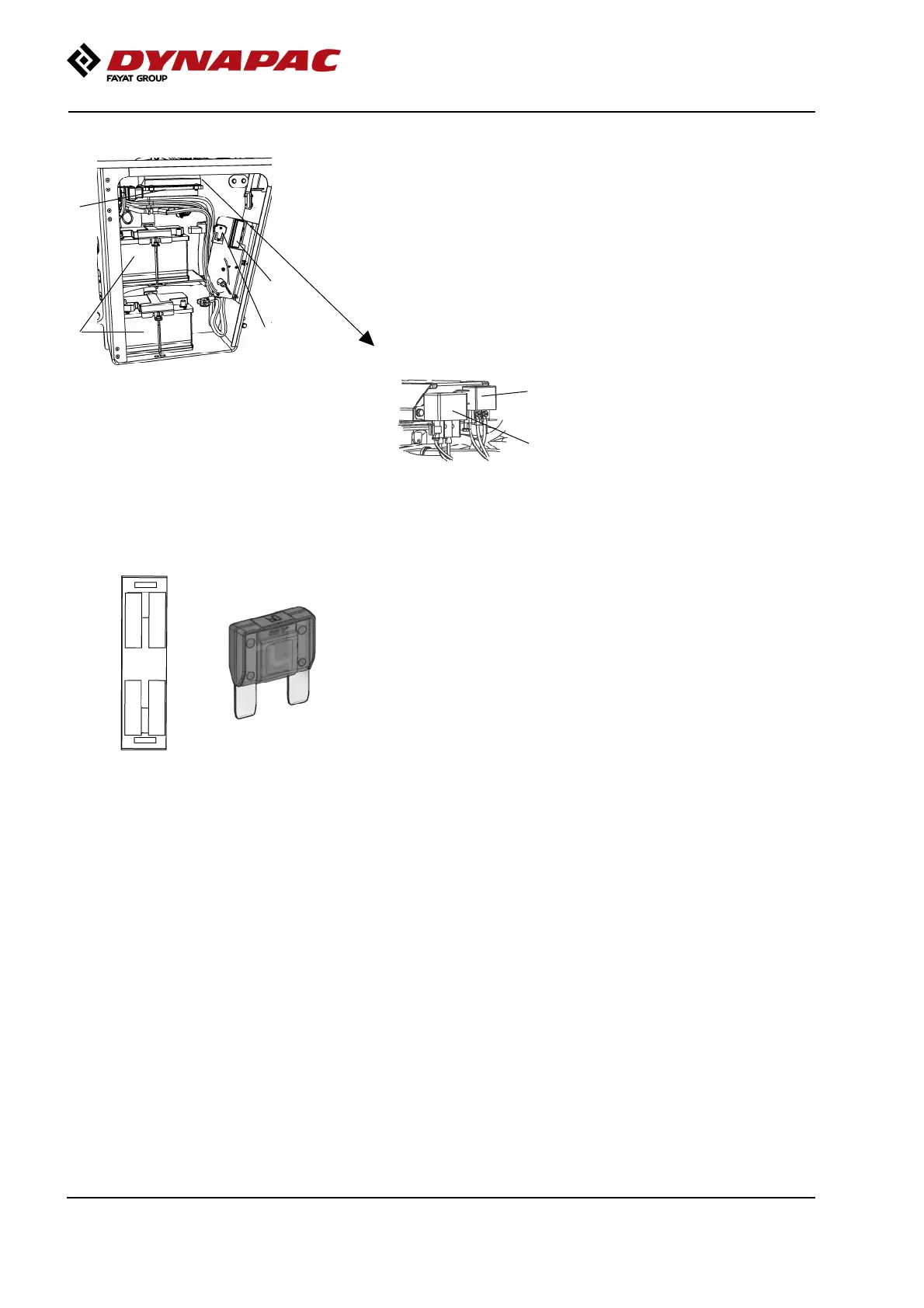

Fig. Cover, left side
1. Fuse box
2. Engine control unit (ECM-box)
3. Fuse 30A, ECM-box (IIIB/T4i)
Relay 20A, ECM-box (IIIA/T3)
4. Batteries (2 pcs)
1
2
3
4
The fuse box (1) is located inside the cover with the
steps on the left-hand side of the roller. The engine's
control unit (ECM-box) (2) and its fuse/relay (3) as well
as the batteries (4), are also located here.
The ECM box's fuse/relay (3) is located on the back of
the monting plate for the master switch.
Is the machine equipped with Deutz engine IIIA/T3
there is a starter relay (5) and a grid heater relay (6)
on the plate at the diesel engine control unit (ECM
box).
5
6
5. Starter relay, 50A
6. Grid heater relay, 120A
Fuse box at master switch (Deutz)
Fig. Fuse box, battery disconnector
switch
1
3
2
4
The figure shows the position of the fuses.
The amperage and function of the fuses are shown
below. All fuses are flat pin fuses.
1. Main fuse 50A1. Main fuse 50A
2. Cab 30A2. Cab 30A
3.
*
Diesel engine ECU 30A3.
*
Diesel engine ECU 30A
3.
**
Burner, air pump 60A3.
**
Burner, air pump 60A
4.
*
Grid heater 40A4.
*
Grid heater 40A
4.
**
Burner, heater plug 25A4.
**
Burner, heater plug 25A
*
(IIIA/T3)
*
(IIIA/T3)
**
(IIIB/T4i)
**
(IIIB/T4i)
56
