FAZUA Evation - Page 41

39

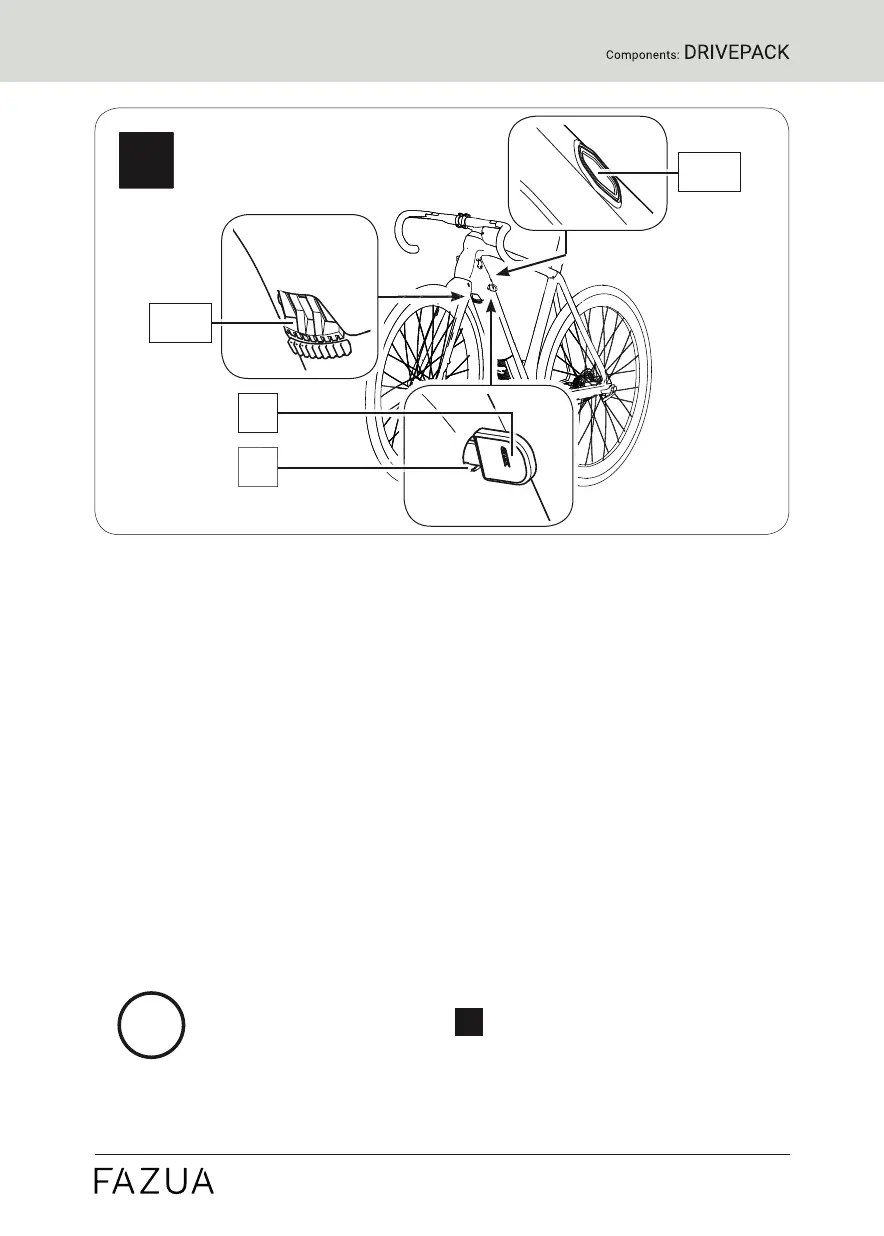

Chapter "Detailed view & part designations: Motor unit"
A
5.2
6
6
7
5.1
Part designations
1
→
Interface (bottom bracket)
2
→
Cover (USB port)
3
→
USB port
4
→
Battery holder
5
→
Pushbutton (5.1)*/locking lever (5.2)*
6
→
Cylinder lock**
7
→
Key**
* The locker or mechanism for removing the drivepack is operated differently
depending on the model:
With a push button located on the top of the down tube or with a locking lever
located on the bottom of the down tube.
In this section you may find different illustrations and descriptions next to each
other.
** The cylinder lock (incl. key) is a model-dependent installed part that may not be
present on your e-bike.

The numbering 1–7 within this section refers to the individual
parts of the components
A
(drivepack).
Individual parts of other components illustrated within this
section are additionally marked with the corresponding
component letter.
