Chapter 6 Description of Operations
PAGE 6-42

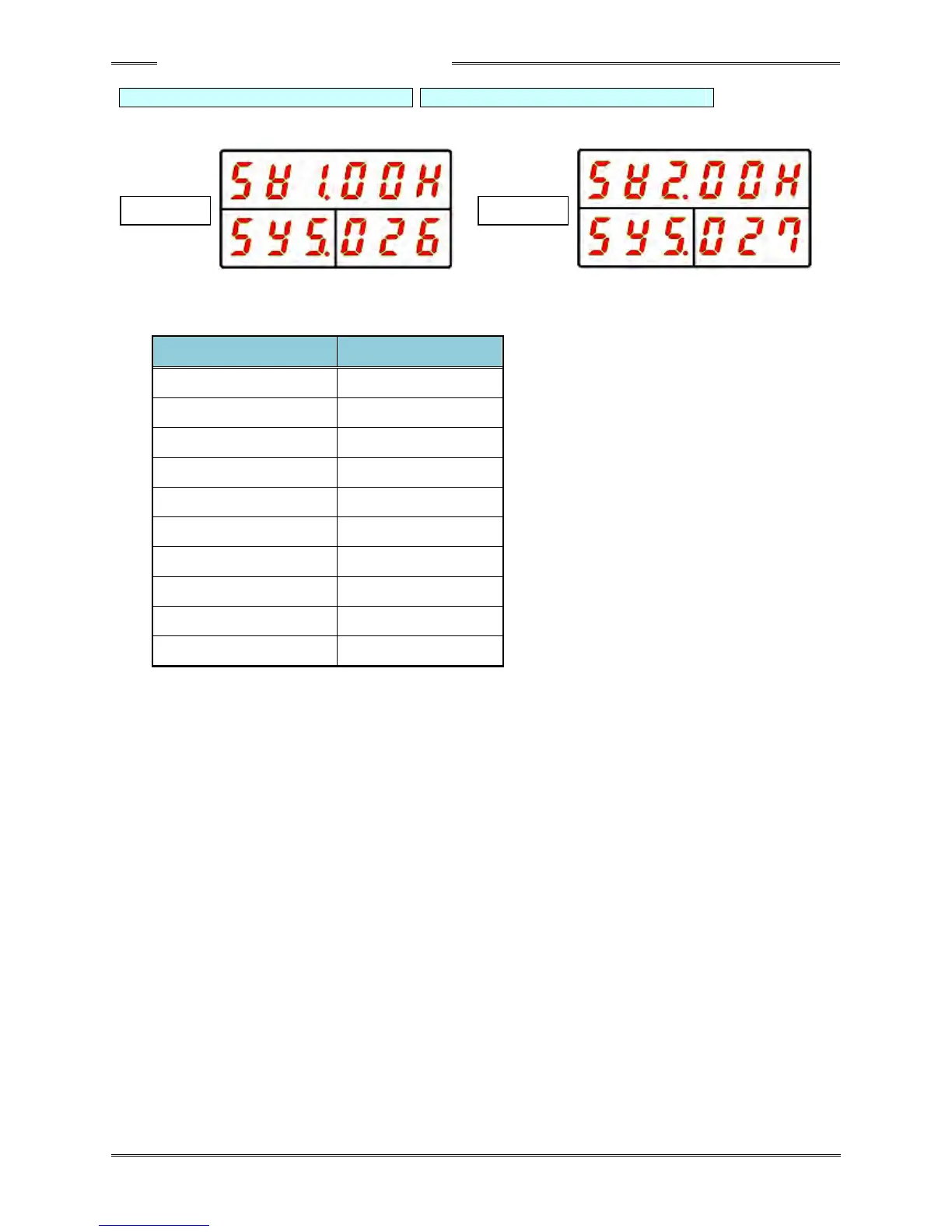

D-No.026 controller SW1 Setting State D-No.027 controller SW2 Setting State
The setting states of the switch on the controller inside (the SW1 switch on the controller front panel
and the SW2 switch on the controller bottom panel) are indicated.
The ON/OFF states of SW No. 1 ～ No. 8 are indicated in 8-bit hexadecimal code in the part in
which “00H” is indicated in the drawing above.
SW setting examples
Indication examples
All OFF
00H
Only No. 1 ON
01H
Only No. 2 ON
02H
Only No. 3 ON
04H
Only No. 4 ON
08H
Only No. 5 ON
10H
Only No. 6 ON
20H
Only No. 7 ON
40H
Only No. 8 ON
80H
All ON
FFH
D-No.026
D-No.027
