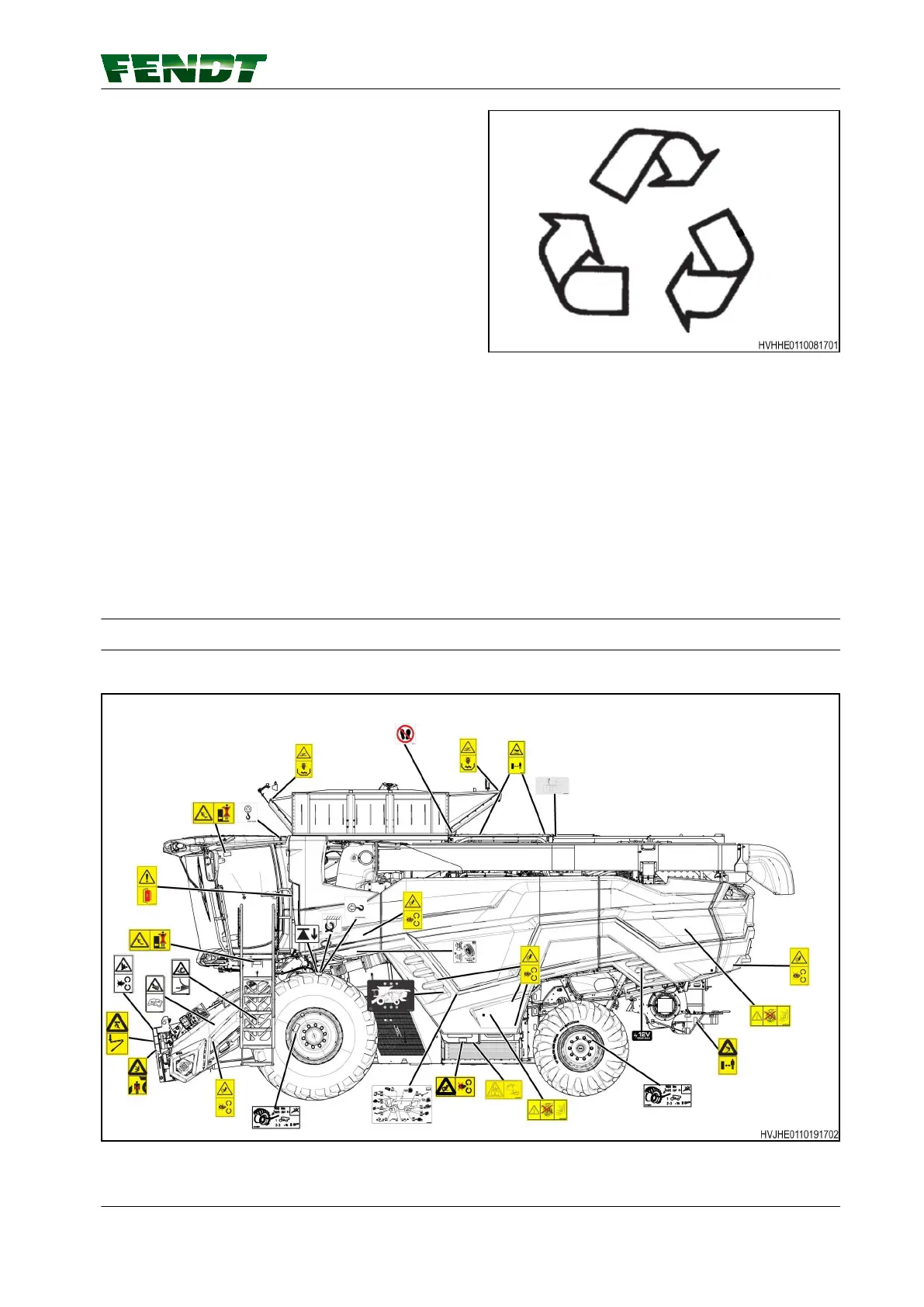

Recycle used materials with this symbol. Refer to
local regulations.
Recycle plastics that have information with
material details such as PP TV 20, reuse them and
do not discard them into the regular garbage.
Used batteries contain toxic substances and must
be taken back by the seller, disposed of properly or
returned to a collecting point. Do not throw old
batteries into the regular garbage.
Operating media such as oils, hydraulic liquids,
brake liquids and fuels must be treated as special
waste and disposed of properly. Refer to local
regulations. Always use leakproof containers when
liquids are drained. Do not let any waste flow on
the ground, into the sewer or into any water
source.
Only discard refrigerants with specialist companies
with expert personnel and the necessary technical
equipment. Refrigerants may never be released
into the atmosphere. Have refrigerants discarded
by your dealership. Observe the country-specific
regulations.
Observe the regulations issued by the local
authorities in charge.
GUID-FBB8F03F-8811-4728-B65E-022F0743969C-high.jpg [High]
Fig. 55
1.3.30 Safety and informational signs
1.3.30.1 Decal locations
GUID-6BB105B7-DEE7-4165-B6F1-D4B92C8CB906-high.jpg [High]
Fig. 56
The left side of the machine
GUID-B5EA91FD-1232-4C15-A643-9085C181BFCD [V2]
CONCEPT_A5ABC0B9BB324C3DBDD1594C303631C9 [V]
1. General
IDEAL Series Combine 1-33
79037318C
