1.4 Specifications

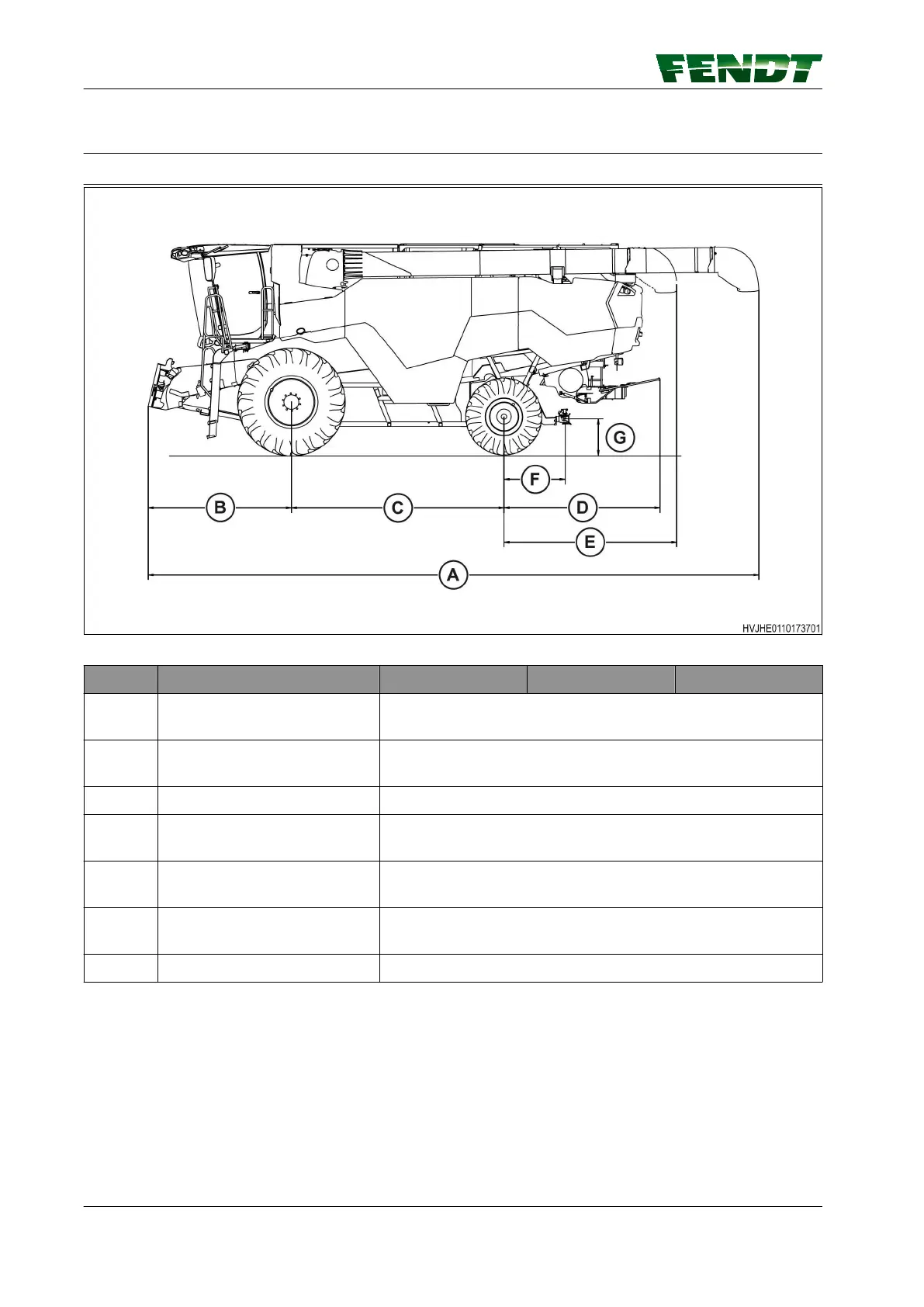

1.4.1 Dimensions
GUID-854795F1-D97F-4D27-8E15-27CD087CBE9E-high.jpg [High]
Fig. 79
Ref Description IDEAL 7 IDEAL 8 IDEAL 9
A Overall length with 9.15 m (30
ft) unloading auger
11720 mm (461.4 in)
B Feeder to center of front
wheel/track
2750 mm (108.3 in)
C Wheel base 4075 mm (160.4 in)
D Center of rear wheel to
tailboard guard
2990 mm (117.7 in)
E Center of rear wheel to end of
7.6 m (25 ft) unloading auger
3320 mm (130.7 in)
F Center of rear wheel to hitch
pin
1180 mm (46.5 in)
G Center of hitch pin to ground 600 mm (23.6 in)
