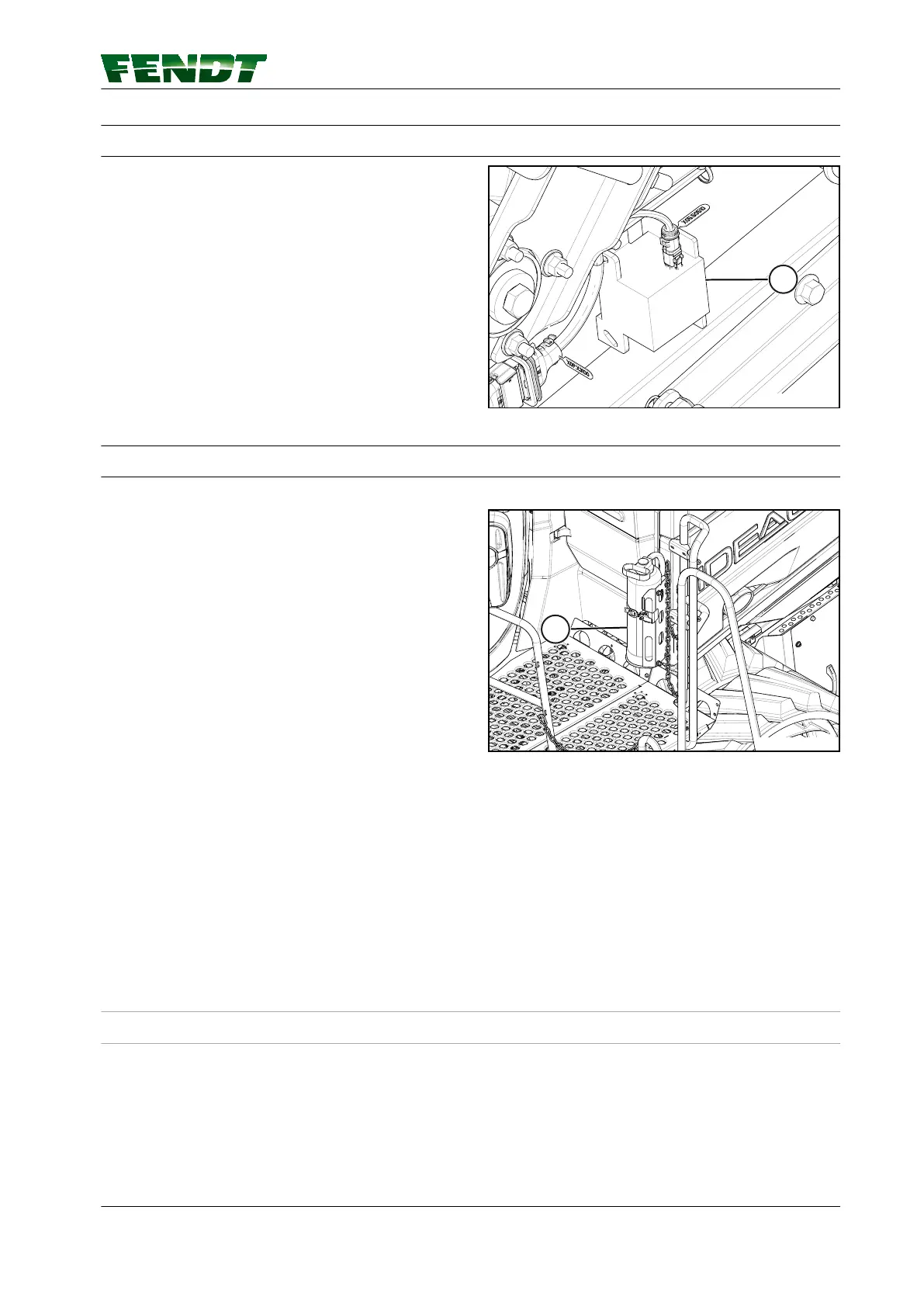

1.3.38 Reverse alarm
When you move the machine in reverse, a reverse
alarm (1) sounds.
1
HVJHE0110072701
Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/reverse alarm.svg
GUID-AE6908E6-4955-49FA-85C1-073741D1F80F-low.svg [Low]
Fig. 77
1.3.39 Fire extinguisher
Follow the instructions on the fire extinguisher.
The fire extinguisher (1) is on the cab access
platform.
1
HVJHE0110072601
Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/fire extinguisher.svg
GUID-AE5ABF8A-5177-4F71-89DC-C8BB4945A4E6-low.svg [Low]
Fig. 78
The extinguisher must contain at least 6 kg (13.2 lb) of extinguishing agent, fire class ABC, and have a
temperature range of -20 °C (-4 °F) to 60 °C (140 °F).
The meaning of the decal on the extinguisher supplied with the combine is as follows:
1. Pull out the locking pin.
2. Squeeze the handle.
3. Spray towards the base of the fire.
If replacing the fire extinguisher, use an appropriately-sized EC-approved model.
IMPORTANT: Have the fire extinguisher checked by skilled sta before the beginning of each new harvest
season.
1.3.40 Noise level in the cab
In compliance with Directive 2006/42/EC, the noise levels at the operator's ear measured in dB (A)
according to ISO 4254-7 standard App. B are shown below.
The noise level is measured while the combine is stopped, the engine running at max. speed, the threshing
units engaged usual operating speed for this specific purpose, without crop in the tank and with the cab
doors closed.
GUID-6E03D981-D1FC-40B6-B6B7-A6469D3A6FBF [V2]
GUID-FB25D662-D21B-4C2F-886D-2B4278A9B027 [V2]
GUID-C1C47569-F127-4BAB-82C6-AE288FD87139 [V3]
