FENDT IDEAL Series Workshop Service Manual

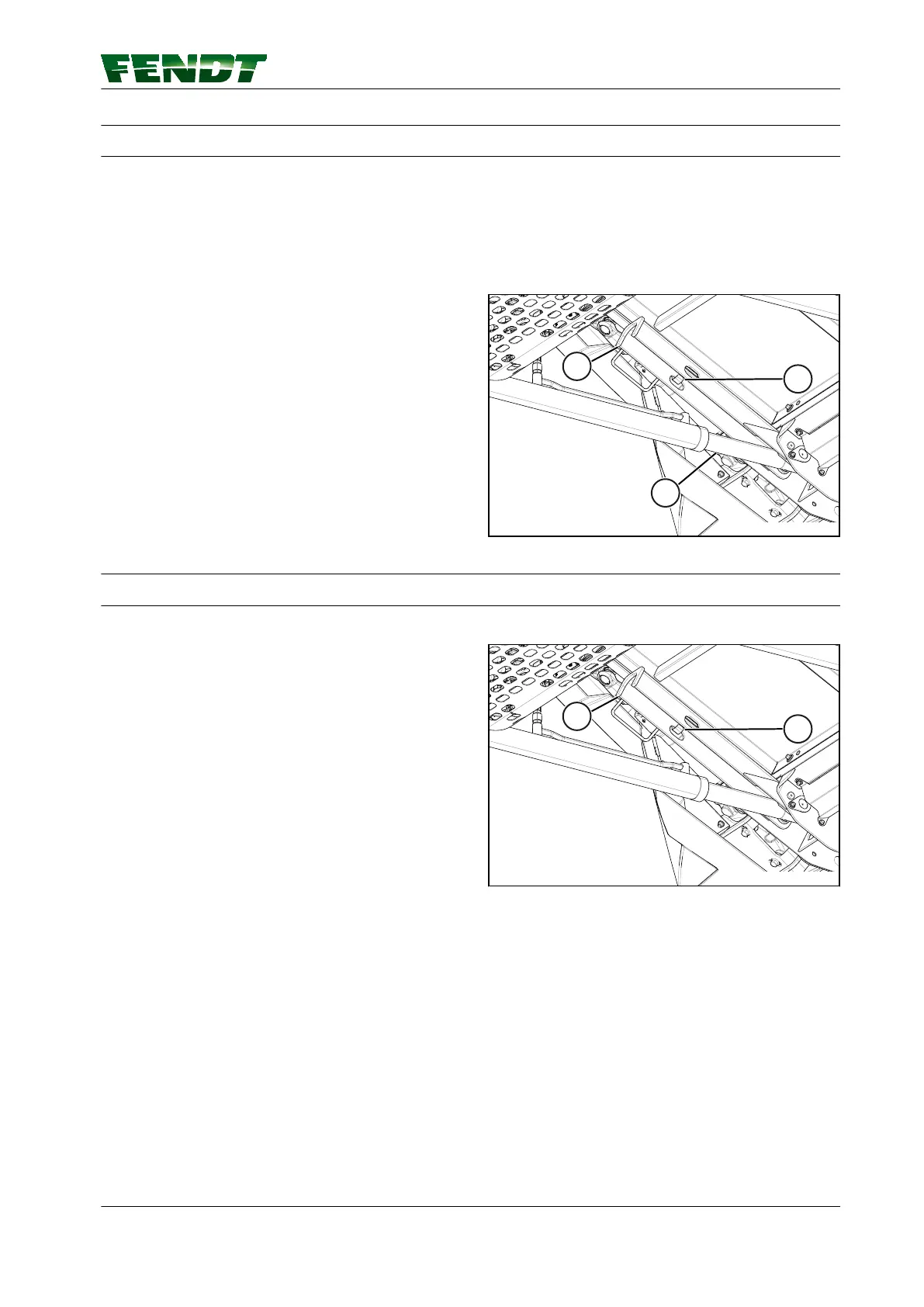

1.3.34 Engage the feeder house cylinder stop
Procedure
1. Park the machine on a solid, level surface.
2. Lift the feeder house fully.
3. Apply the parking brake, stop the engine, and take the key with you.
4. Release the clip (1) that holds the cylinder
stop (2) up.
5. Lower the cylinder stop onto the cylinder (3).
Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/cylinder stop.svg
1
2
3
HVJHE0110027301
GUID-537BF7F4-06EB-4E8C-99E6-04B0653F6F80-low.svg [Low]
Fig. 74
1.3.35 Disengage the feeder house cylinder stop
Procedure
Lift the cylinder stop (2) until the clip (1)
latches.
Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/cylinder stop.svg
1
2
HVJHE0110027401
GUID-33782DBE-F625-4789-AE04-F1BC171EC066-low.svg [Low]
Fig. 75
GUID-204D4B34-BE7D-4B52-83F4-B6E4F8673CBA [V2]
GUID-219927E8-46C7-4EFC-A332-93A5EB566666 [V2]
1. General
IDEAL Series Combine 1-53
79037318C

FENDT IDEAL Series Specifications

General

Category	Combine Harvester
Manufacturer	Fendt
Series	IDEAL
Engine Type	MAN diesel engine (various models)
Max Speed	40 km/h
Fuel Tank Capacity	1250 liters
Tire Options	Various sizes and types available
Cab Features	Air-conditioned, ergonomic design, multifunctional armrest, touchscreen display
Technology	Fendt Connect (telemetry), guidance systems, yield mapping
Unloading Rate	140 - 210 l/s (depending on model)
Cab	Fendt Vision Cab
Tracks	Available on some models (TrakRide)
